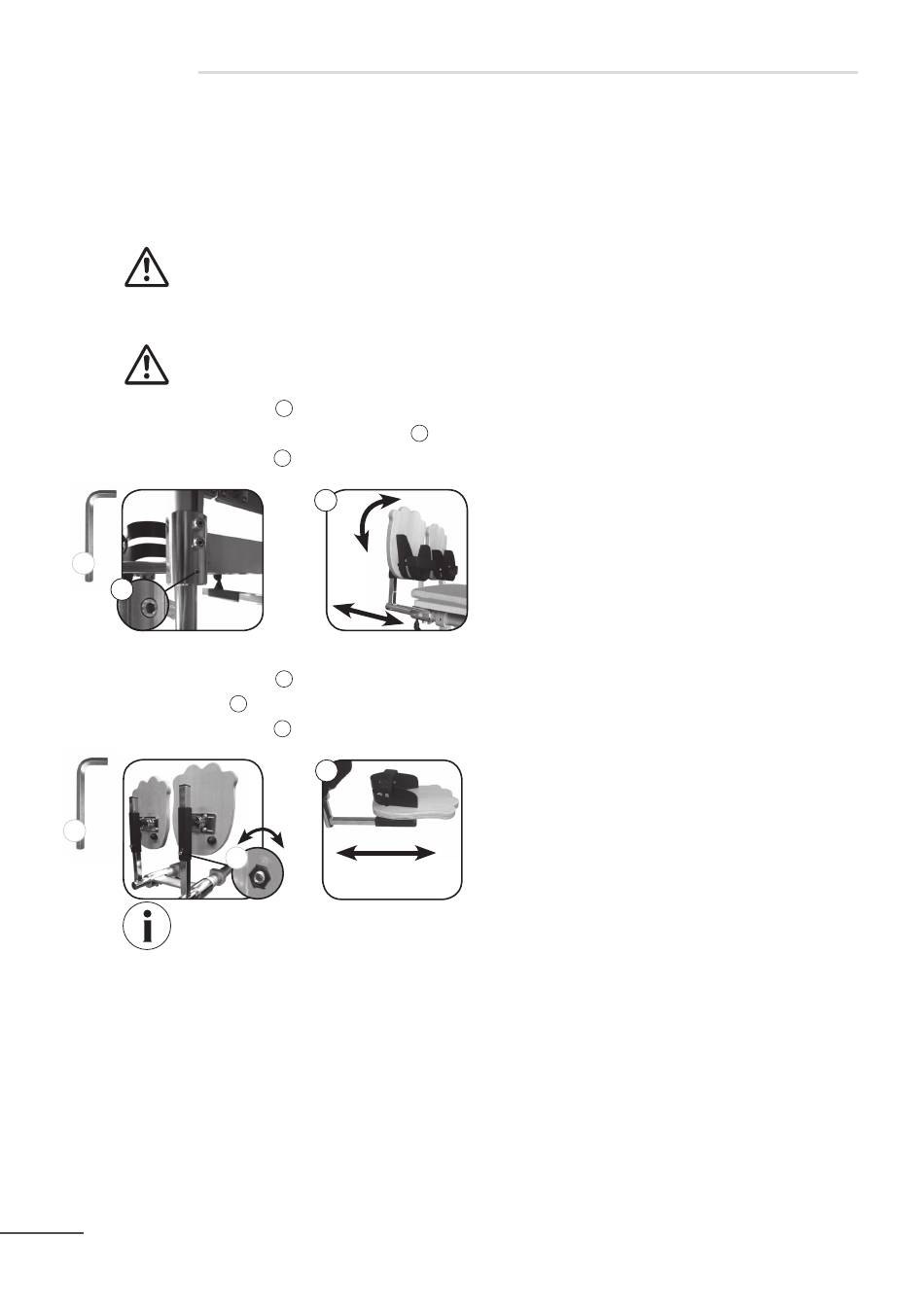

5.9. Individual footplates
Two footplates belong with the Supine-Bear "Lasse". They should be adjusted to the needed height
of the user's feet. The various adjustment options allow for adjustment of foot length and ankle
position as well as for consideration of therapeutic goals (e.g. correction of pes equinus where
accessories available).
Pay attention to hazards of jamming and crushing.
The maximum adjustment is achieved when the pipe end is flush with the guide.
Height and Angle adjustment
Die maximale Verstellung ist erreicht, wenn die Markierung ersichtlich ist.
Loosen Stiftschraube
Adjust height and angle of the footplate
Fasten Stiftschraube
Gr. 4
1
Lenght adjustment
Loosen Stiftschraube
Slide footplate
Fasten Stiftschraube
Gr. 4
Repeat the steps for adjustment of the other footplate
18
with key (size M4).
1
again.
1
2
with key (size M4).
1
on the tube to adjust.
2
again.
1
2
1
to the foot.
2
