Supine-Bear „Lasse"

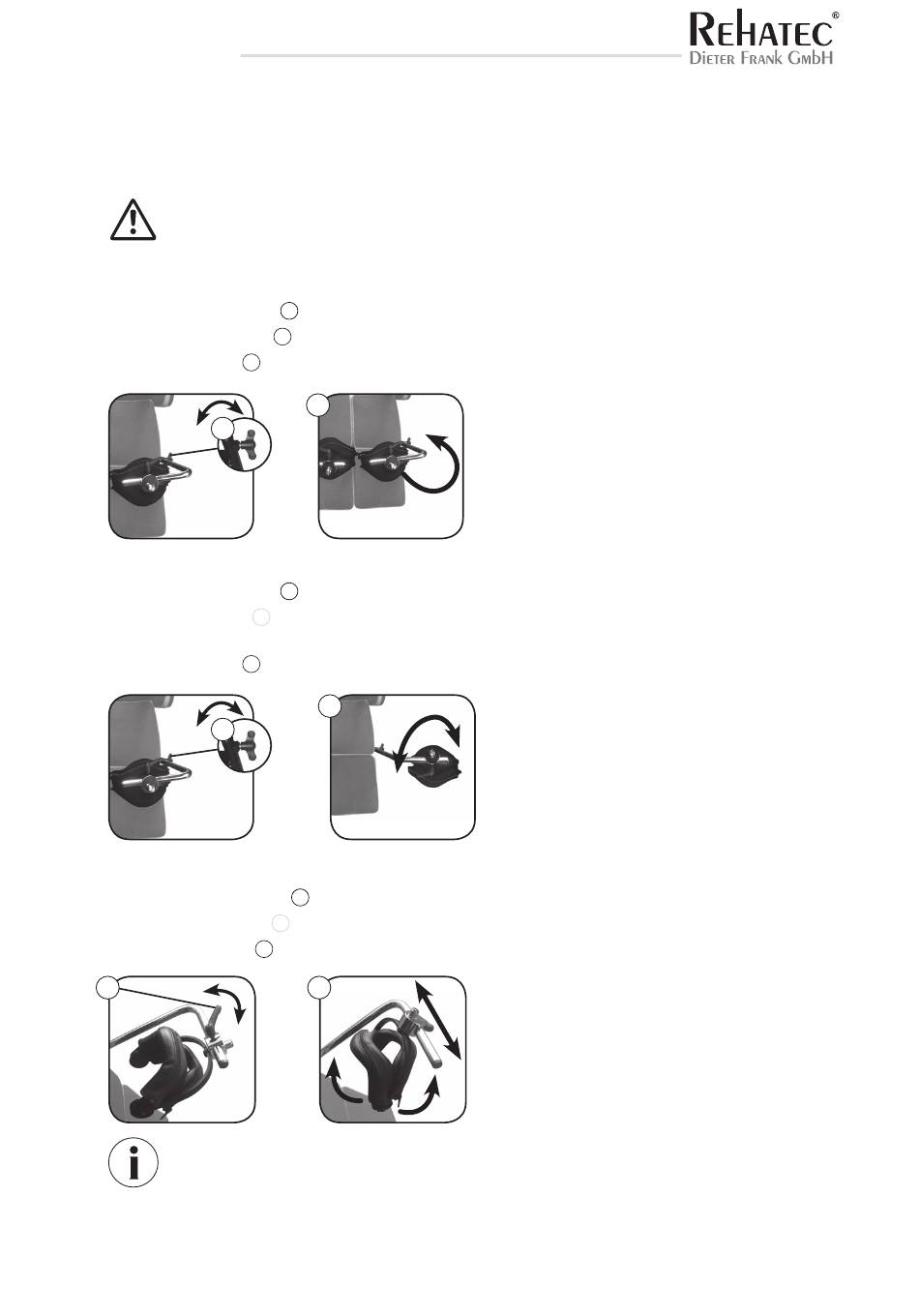

5.8. Anatomic Knee blocks

The optionally available knee blocks control the position of the knees. Höhe, Winkel, Neigung und
Spreizung sind individuell anpassbar.
Pay attention to hazards of jamming and crushing.
The maximum adjustment is achieved when the pipe end is flush with the guide.
Loosen the Knee block mounting
Loosen the wing screw
Rotate the Knee block
Fasten wing screw
1
Knee block mounting adjustment
Loosen the wing screw
Kniepelottenhalter
Knie legen.
Fasten wing screw
1
Knee block adjustment
Loosen the locking lever
Adjust the knee block
Fasten locking lever
1
Repeat the steps for adjustment of the other Knee block
