MULTI 2

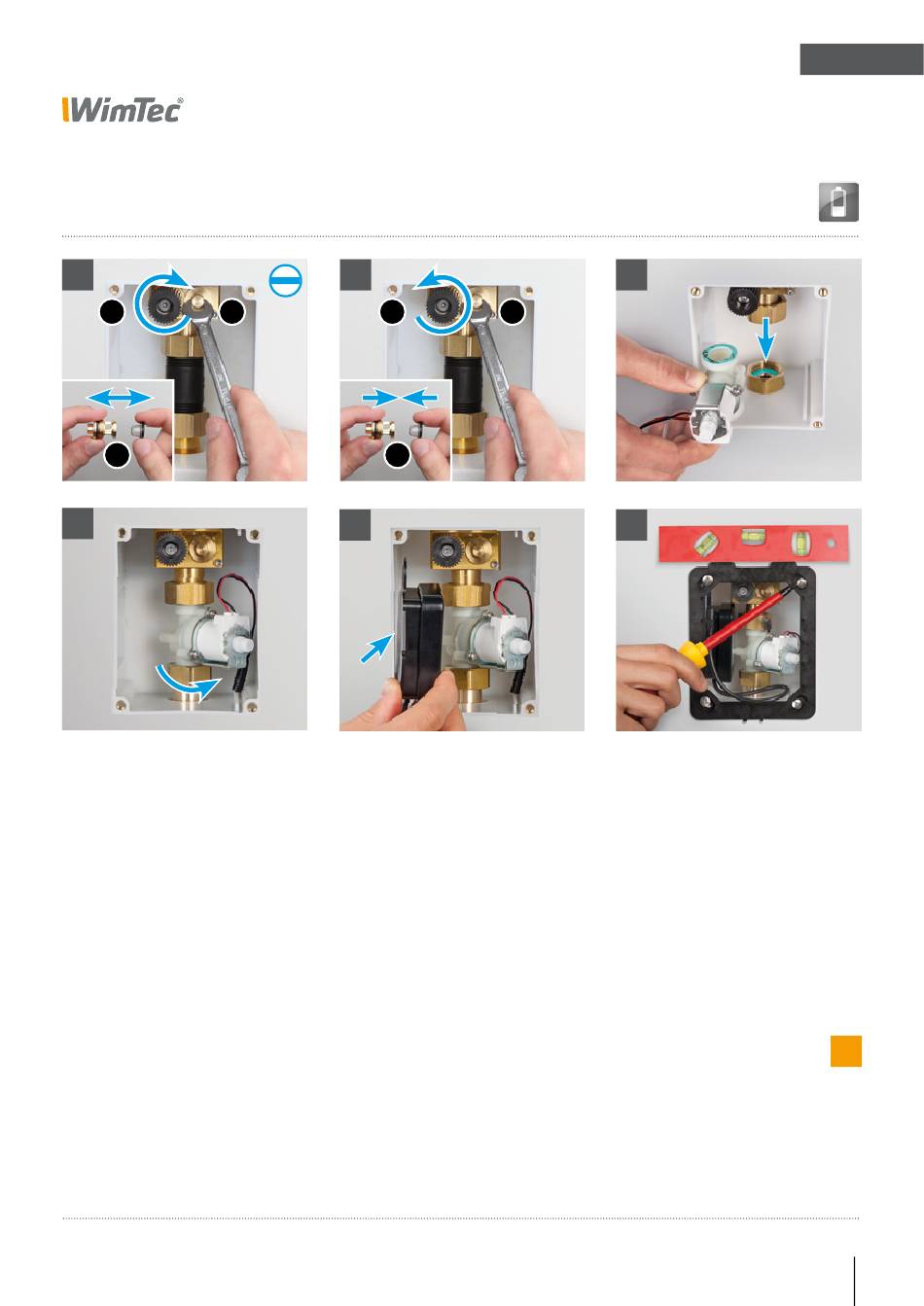

Assembly - 9-V battery version
1
a
b
c
4
1. a)
Close integrated stop valve.
b)
Open dirt filter cover.
c)
Remove dirt filter, re-insert dirt filter cover.
2. a)
Open the integrated stop valve and flush the line, then
close the stop valve again.
b)
Open dirt filter cover.
c)
Re-insert dirt filter and dirt filter cover.
3.
Insert magnetic valve with gaskets.
Observe direction of flow!
4.
Insert magnetic valve at an angle.
5.
Insert the battery module into the flush-mount set.
6.
Align the mounting frame and securely fasten.
2
a
b
c
5
Urinal flush control
3
6
ATTENTION!
Perform the following steps
in the order indicated!
WimTec MULTI 2
EN
!
23
