Assembly - WimTec MULTI 2 Montage- Und Bedienungsanleitung

MULTI 2
Assembly - 230-V mains version
1
a
b
c
4

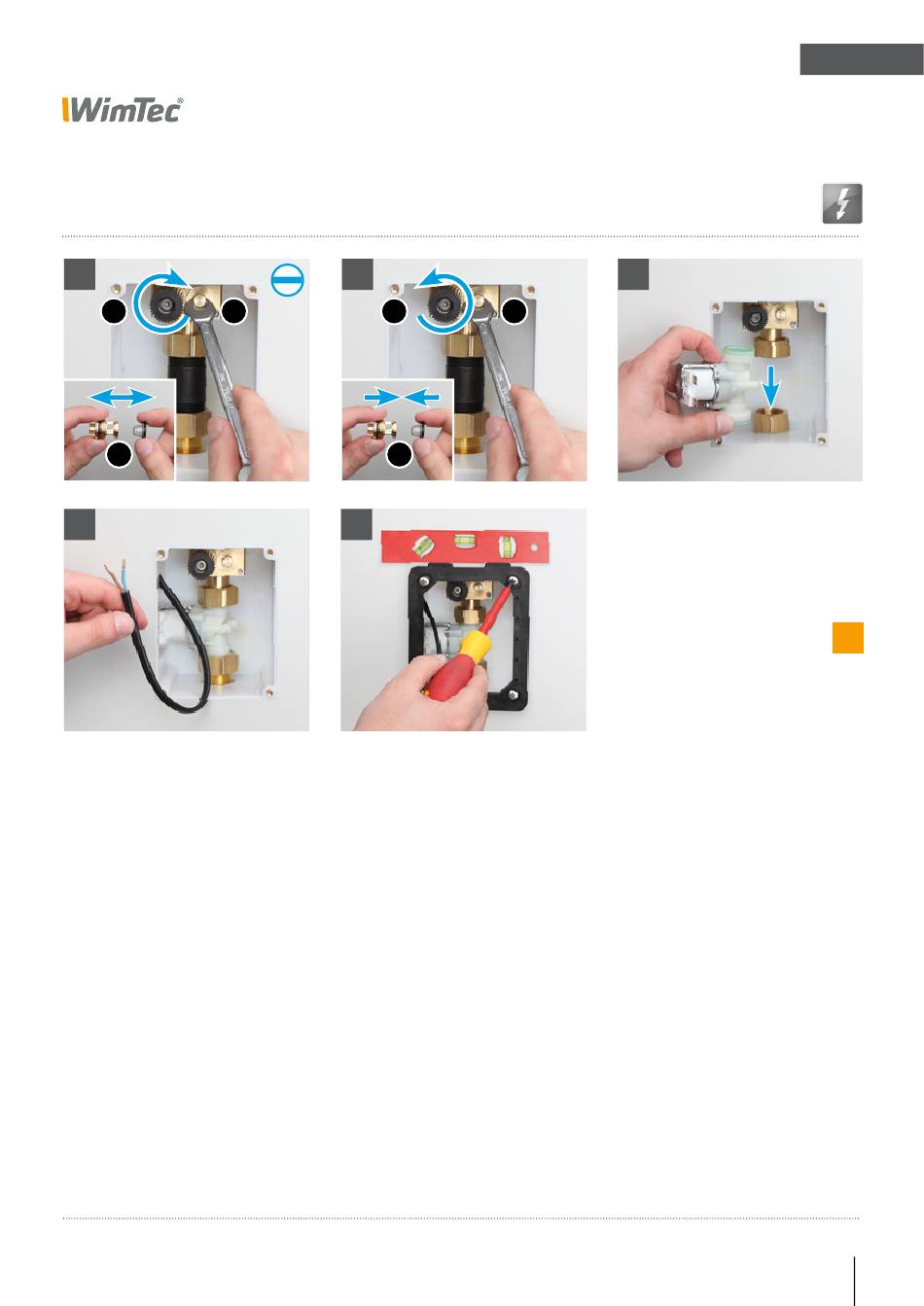

1. a)
Close integrated stop valve.
b)
Open dirt filter cover.
c)
Remove dirt filter, re-insert dirt filter cover.
2. a)
Open the integrated stop valve and flush the line,
then close the stop valve again.
b)
Open dirt filter cover.
c)
Re-insert dirt filter and dirt filter cover.
3. Insert magnetic valve with gaskets.
Observe direction of flow!
4.
Feed cable (3 x 0.75 mm
(230 V) into the flush-mount set.
5.
Align the mounting frame and securely fasten.
2
a
c
5
2 2
- 1.5 mm ) for the power supply
3
b
Perform the following steps
Urinal flush control WimTec MULTI 2
EN
ATTENTION!
in the order indicated!
