EN
MULTI 2

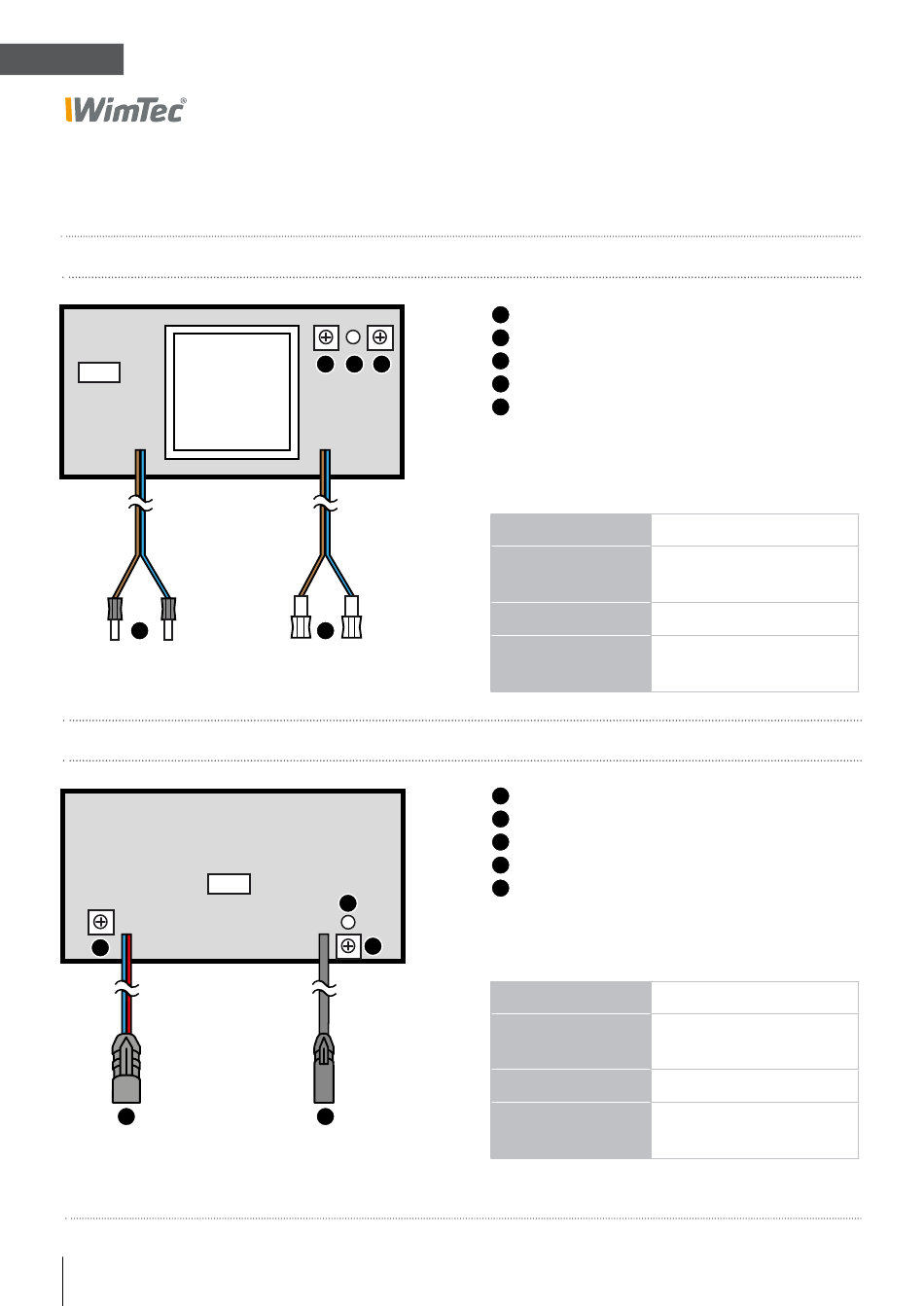

Legend

WimTec MULTI 2 – 230 V:
D
WimTec MULTI 2 – 9 V:
A
D
18 Urinal flush control
A C B
E
C
B
E
WimTec MULTI 2
A Flush time control
B
Range control
C
LED for status indicator
D Connector for 230 V power supply
E
Connector for m agnetic valve
LED signals:
Off No user
On User is within the active
range
Flashing Flushing
Rapid flashing Connection problem the
magnetic valve
A Flush time control
B
Range control
C LED for status indicator
D Connector for magnetic valve
E
Connector for battery module
LED signals:
Off No user
On (up to 1 min
User is within the active
after start-up) range
Flashing Flushing
Slow flashing Battery low,
please replace
