Dimensions - WimTec MULTI 2 Montage- Und Bedienungsanleitung

MULTI 2

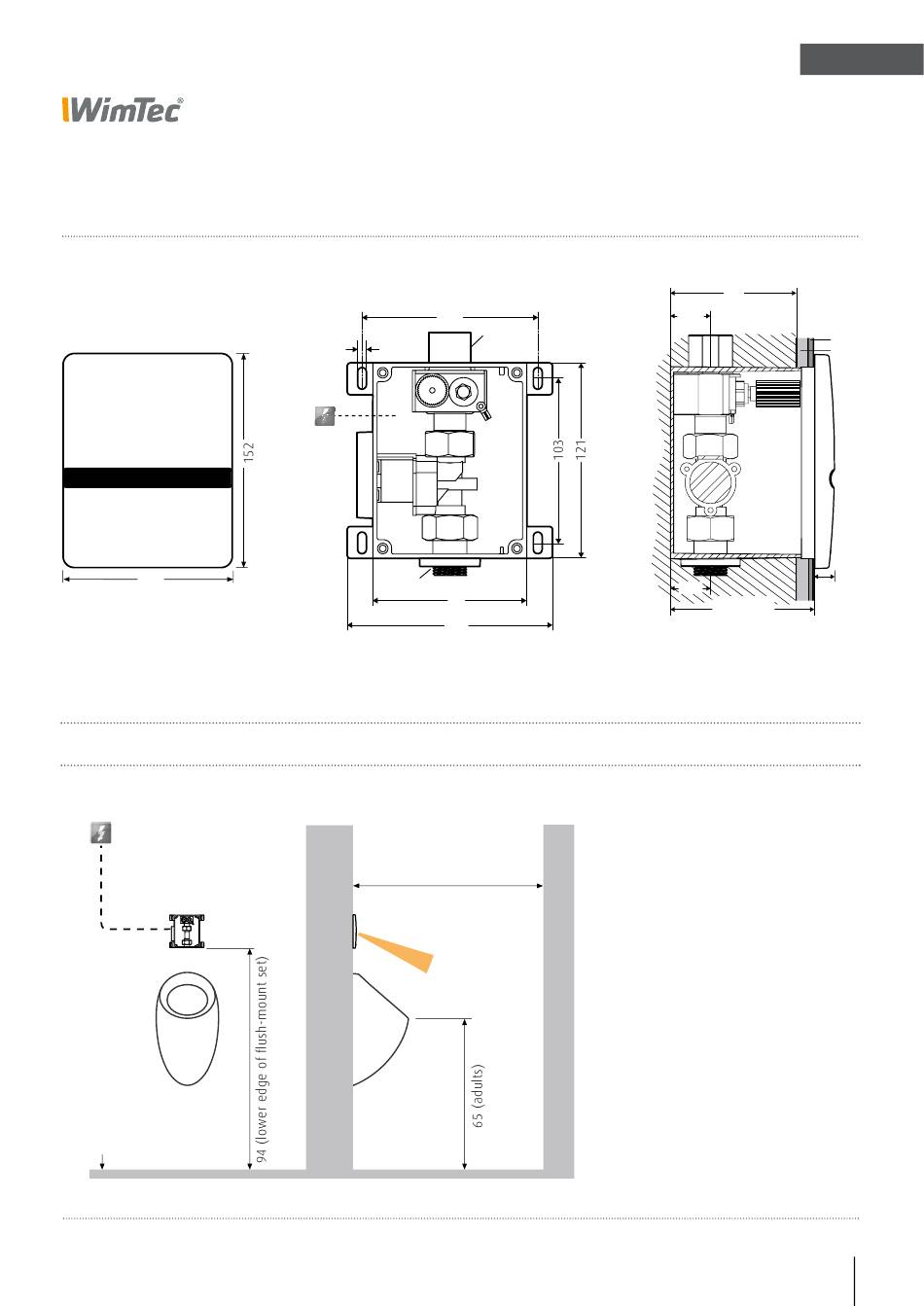

Dimensions

Dimensions in mm
120
Assembly:
Dimensions in cm
230 V (mains version)
OK-FFB
110
Inlet
5.5
R 1/2" IT
230 V
B L
Outlet
R 1/2" OT
95
127
min. 100
Detection range
adjustable from
30 – 70
When used in 230-V mains operation,
provide empty duct for electrical installation.
Power supply: 2 x 0.75 mm
Urinal flush control WimTec MULTI 2
EN
84
25.5
Tile
Plaster
25.5 14
min. 98
max. 158
-1.5 mm
2 2
17
