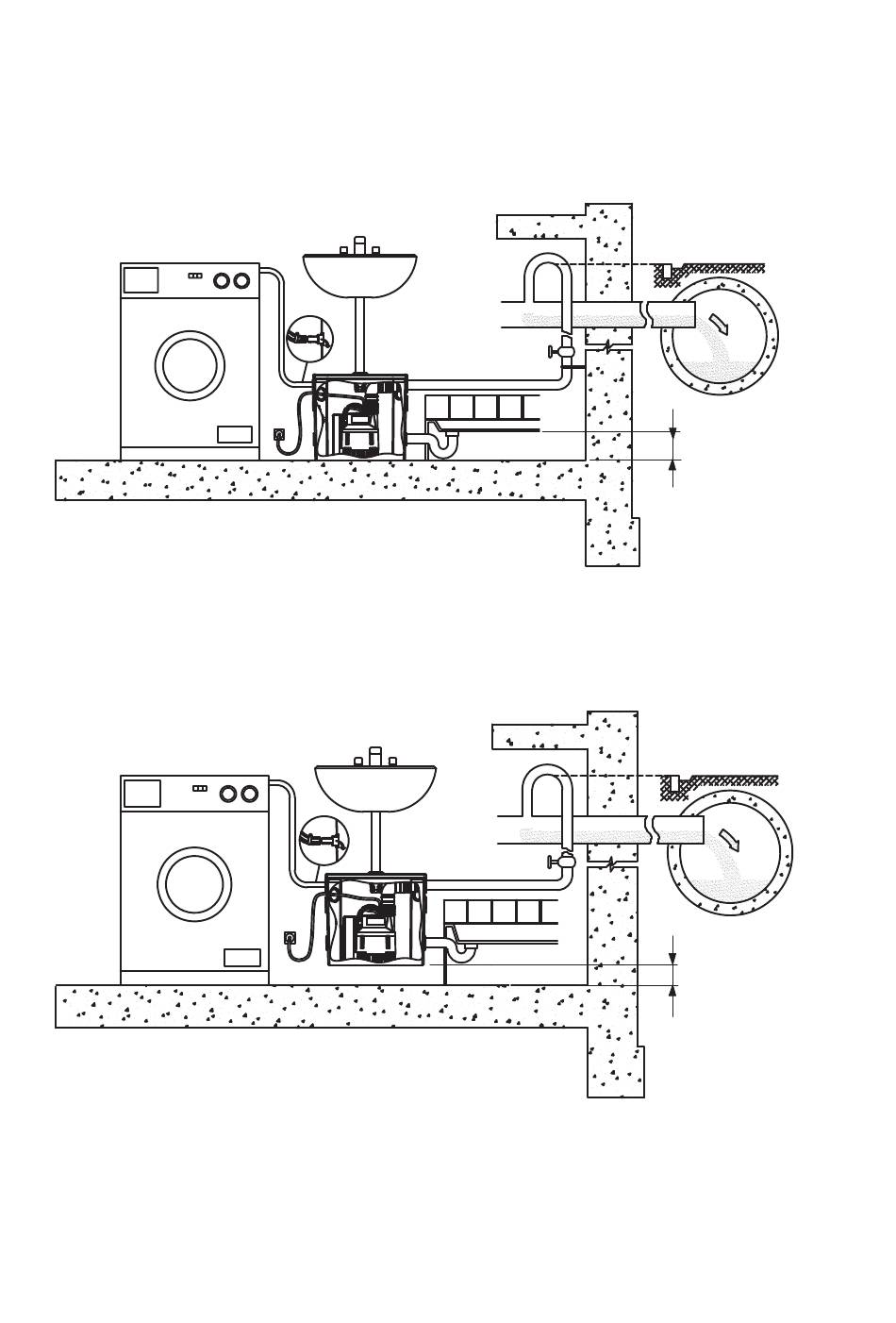

Installation examples

Ground set up
Min.100 mm*
Pump switching levels: ON = 85 mm
OFF = 55 mm
Note: Reference level is bottom of the tank.
Wall suspension
85 mm
Figure 3
ATTENTION !
*In the case of a greater distance between the FLOWBOX-N and the shower basin it is necessary to
make an addition to allow for the recommended fall for gravity flow. The shower basin must then be
located at a higher level.
