Attaching the Arms to the Television (cont.)
Recessed-back
Television
Bolt

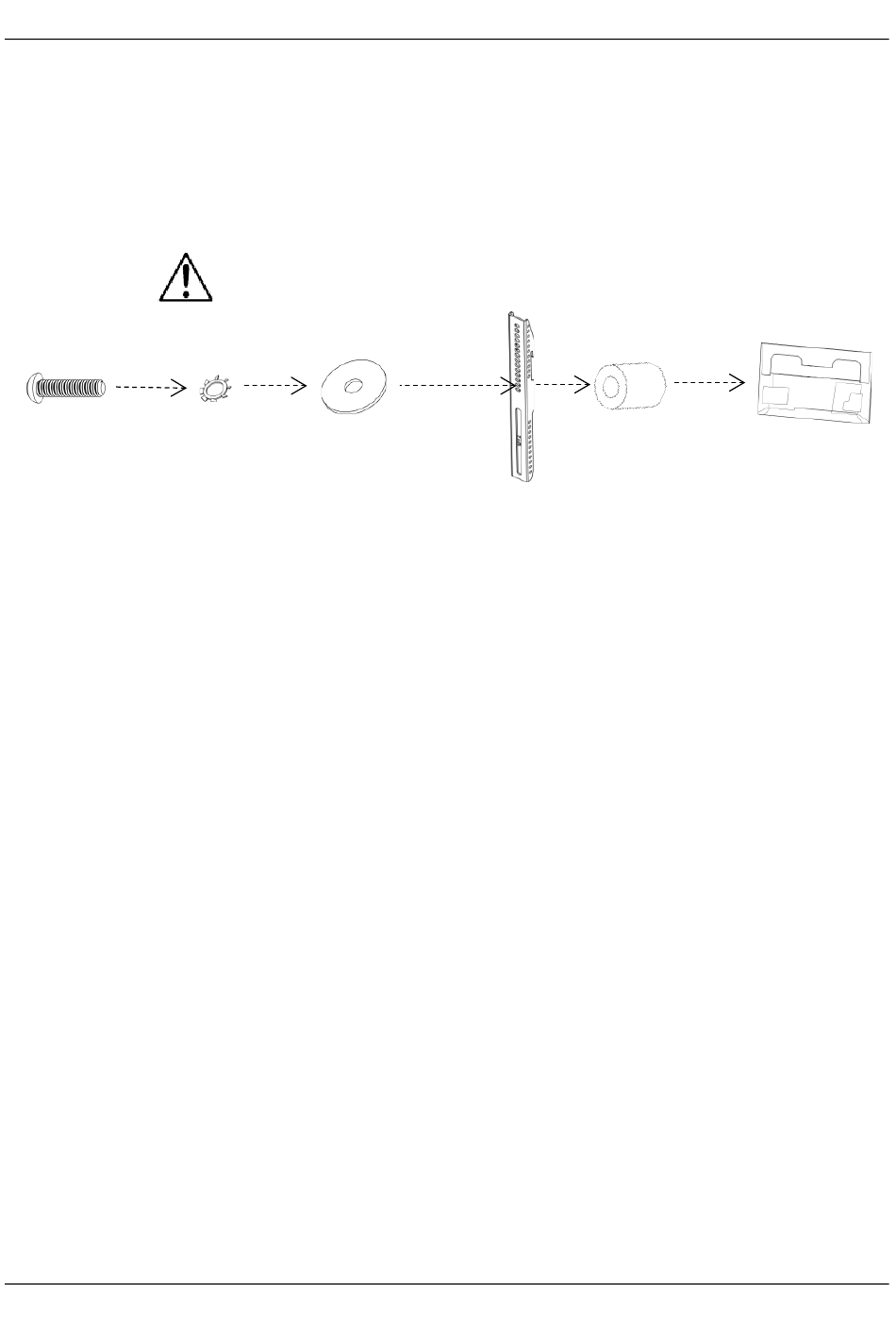

1. Determine that the TV has a recessed back, and not a flat back.
2. Attach both arms to the TV using the enclosed bolts, lock washers
(select proper sizes from Bag 1, 2, 3, or 5), and washers (Bag 7).
A spacer (Bag 7) goes between the arm and the television.
3. Tighten bolts snugly.
Note: Do not over-tighten.
Use 2 hardware assemblies for each arm.
Lock
Washer
Washer
Note: The position of attachment point may vary from TV to TV.
Spacer
Arm
6
EN
Recessed Back
of TV
