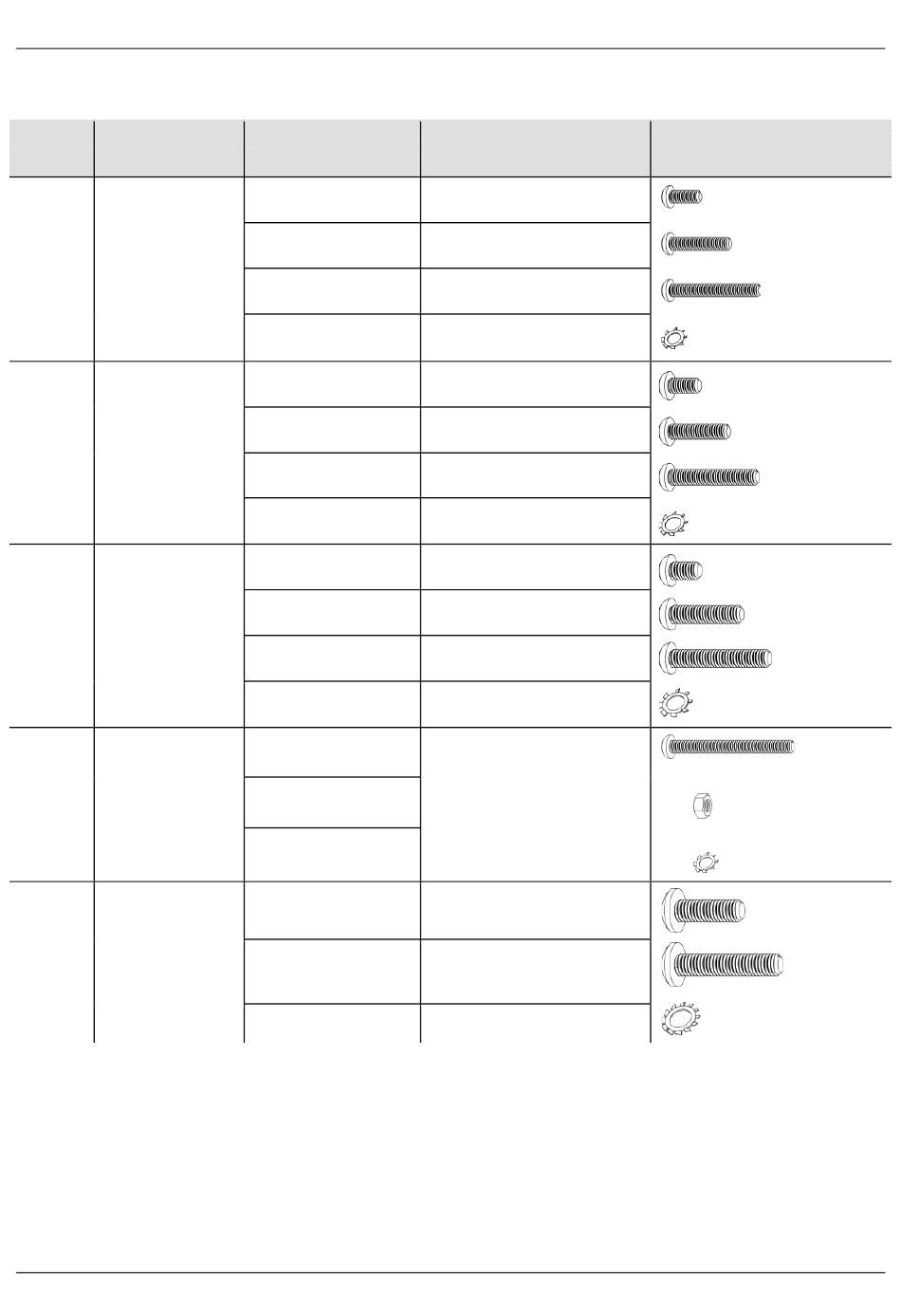

Parts List Including Connecting Hardware
Bag Bag Contents/
Number Parts
Hardware
1 for Small TV
(M4 Size Bolts)
Hardware
2 for Small TV
(M5 Size Bolts)
Hardware
3 for Large TV
(M6 Size Bolts)
Hardware for
4
Extension Arms
Hardware
5 for Large TV
(M8 Size Bolts)
Quantities and
Dimensions
4 Phillips bolts Short M4 bolts for flat
M4 x 10 mm television back
4 Phillips bolts Medium M4 bolts for
M4 x 20 mm recessed television back
4 Phillips bolts Long M4 bolts for recessed
M4 x 30 mm television back
4 M4 lock washers Lock washers for M4 bolts
4 Phillips bolts Short M5 bolts for flat
M5 x 10 mm television back
4 Phillips bolts Medium M5 bolts for
M5 x 20 mm recessed television back
4 Phillips bolts Long M5 bolts for recessed
M5 x 30 mm television back
4 M5 lock washers Lock washers for M5 bolts
4 Phillips bolts Short M6 bolts for flat
M6 x 10 mm television back
4 Phillips bolts Medium M6 bolts for
M6 x 25 mm recessed television back
4 Phillips bolts Long M6 bolts for recessed
M6 x 35 mm television back
4 M6 lock washers Lock washers for M6 bolts
8 Phillips bolts
M5 x 50 mm
Hardware for attaching the
8 M5 hex nuts
extension arms to the arms
8 M5 lock washers
4 Phillips bolts Medium M8 bolts for
M8 x 25 mm recessed television back
4 Phillips bolts Long M8 bolts for recessed
M8 x 40 mm television back
4 M8 lock washers Lock washers for M8 bolts
Description
3
CT-UTVM QRG
Diagram
