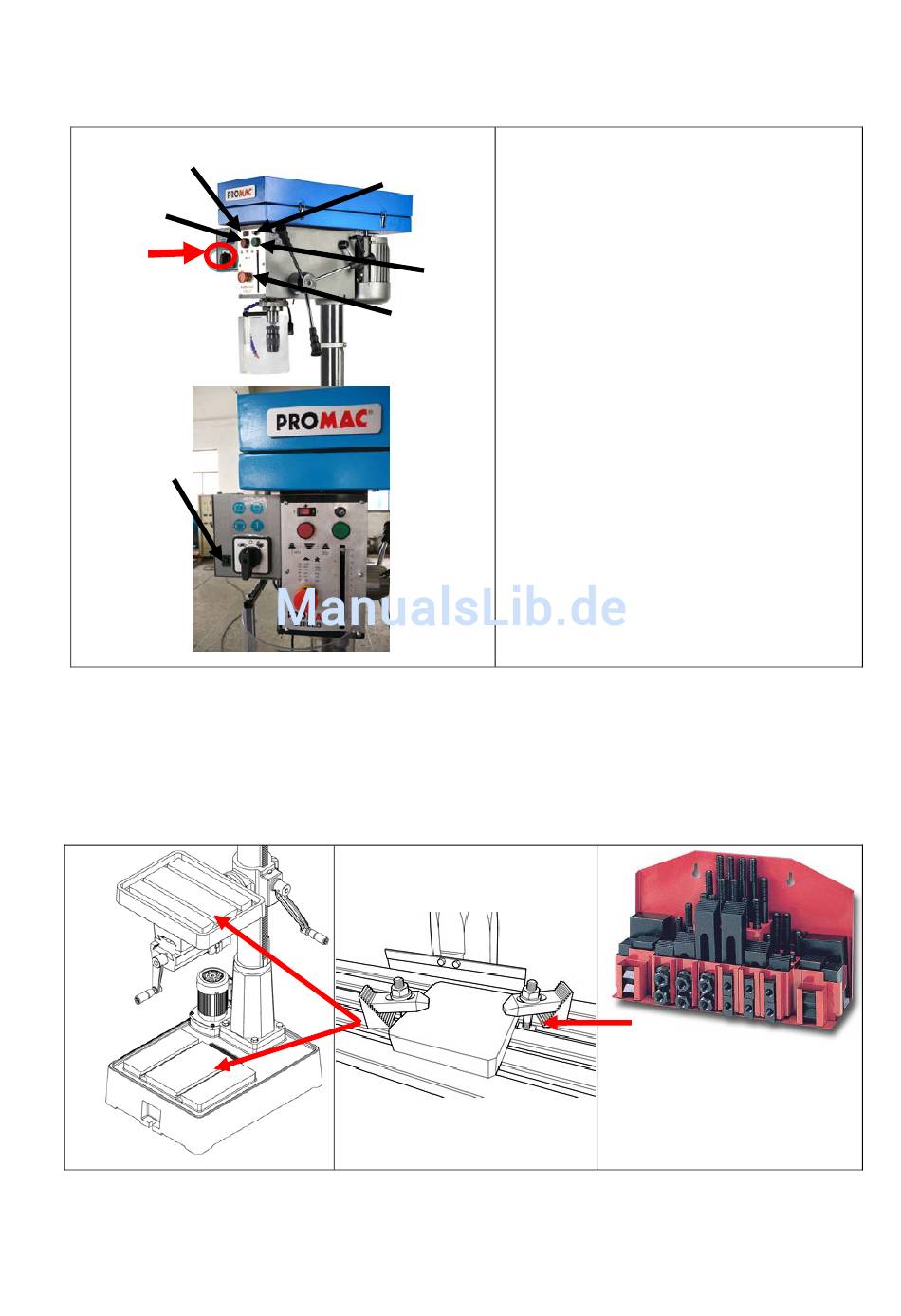

3-1. Control panel instruction:
C
A
F
G
3-2. Operation illustration and procedure:
1. There are three T grooves in the worktable. It is for fix the work piece.
1-1.There is two T grooves in the base, too. It is convenient for fixing the longer, heavier, and larger
working piece.
A. Stop Button
B. Start Button
C. Coolant switch
E
D. Emergency Stop Button
E. Fuse
F. Cam Switch (high/low)
B
G. LED light Switch
1. Check the power source
D
Push the start button to judge the motor
and spindle shaft is in normal condition
or not.
2. The speed control switch controls
spindle speed adjustment.
3. If it needs to stop urgently, just push the
emergency stop switch.
11
OPTION
