1-5. Items Needed for Set Up
1.The downfeed handles must be installed to operate the drill press.
To install the downfeed handles:

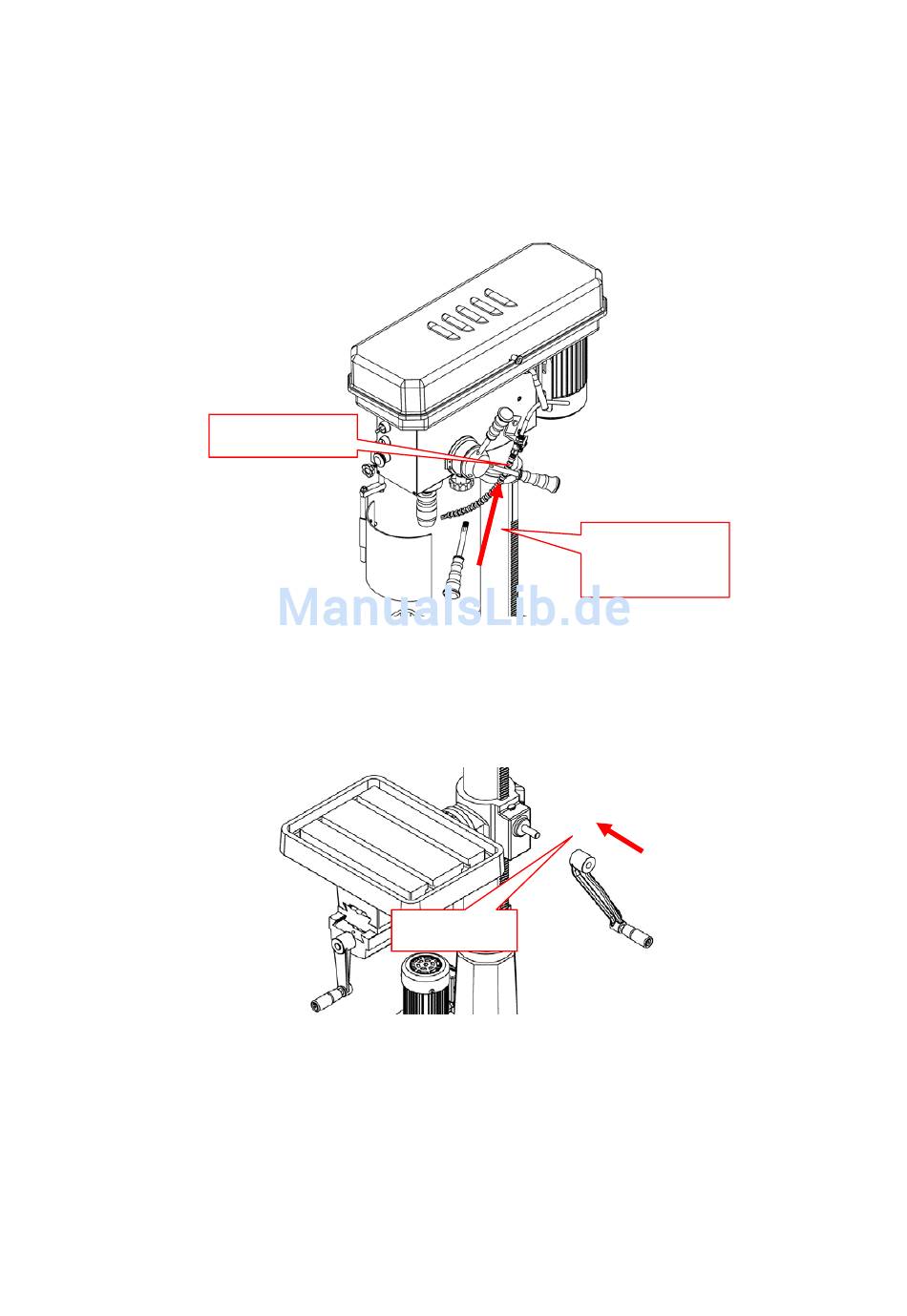

Thread the handles into the spindle hub, as shown in Figure 02, and tighten.
2.Install the crank lever over the pinion shaft, and tighten the setscrew in the crank handle against the
flat part of the pinion shaft. Figure 03,
3. The drill chuck attaches to the spindle by means of the arbor, shown in Figure 04. Matched tapers
onThe arbor and the inside of the chuck create a semi-permanent assembly when properly joined.
Spindle Hub
Figure 02
Flat part
Figure 03
6
Wrench
handle
