1-3. Setting the machine instruction:
1. The machine base with setting hole will be set on concrete floor.
The outlined procedures of setting the machine
2. The dimension of setting hole and Working Clearances.
Consider existing and anticipated needs, size of material to be processed through each machine,
and space for auxiliary stands, work tables or other machinery when establishing a location for your
machine. See Figure 01.
930ELB
A=800mm
B=600mm
4

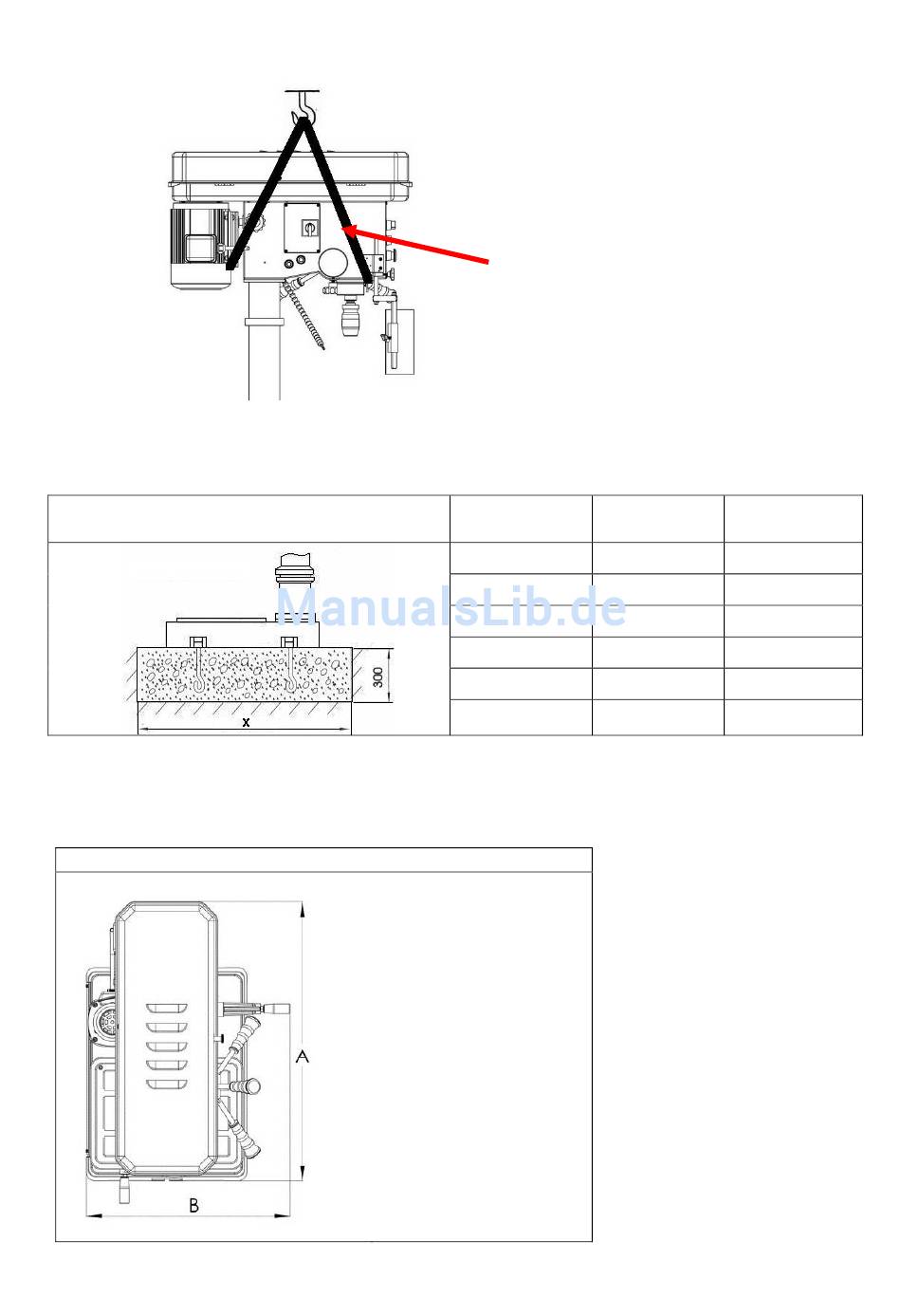

Lifting Straps
Typical lifting strap position.
MODEL AREA
930ELB X=900×700
SETTED
SCREW
M12
