Addressing

Each device occupies 5 channels. To ensure that the control signals are properly directed to each device,
the device requires addressing. This is to be adjusted for every single device by changing the DIP-switches
as set out in the table below.
The starting address is defined as the first channel from which the device will respond to the controller.
Please make sure that you do not have any overlapping channels in order to control each device correctly
and independently from any other fixture on the DMX data link. If two, three or more devices are addressed
similarly, they will work similarly.

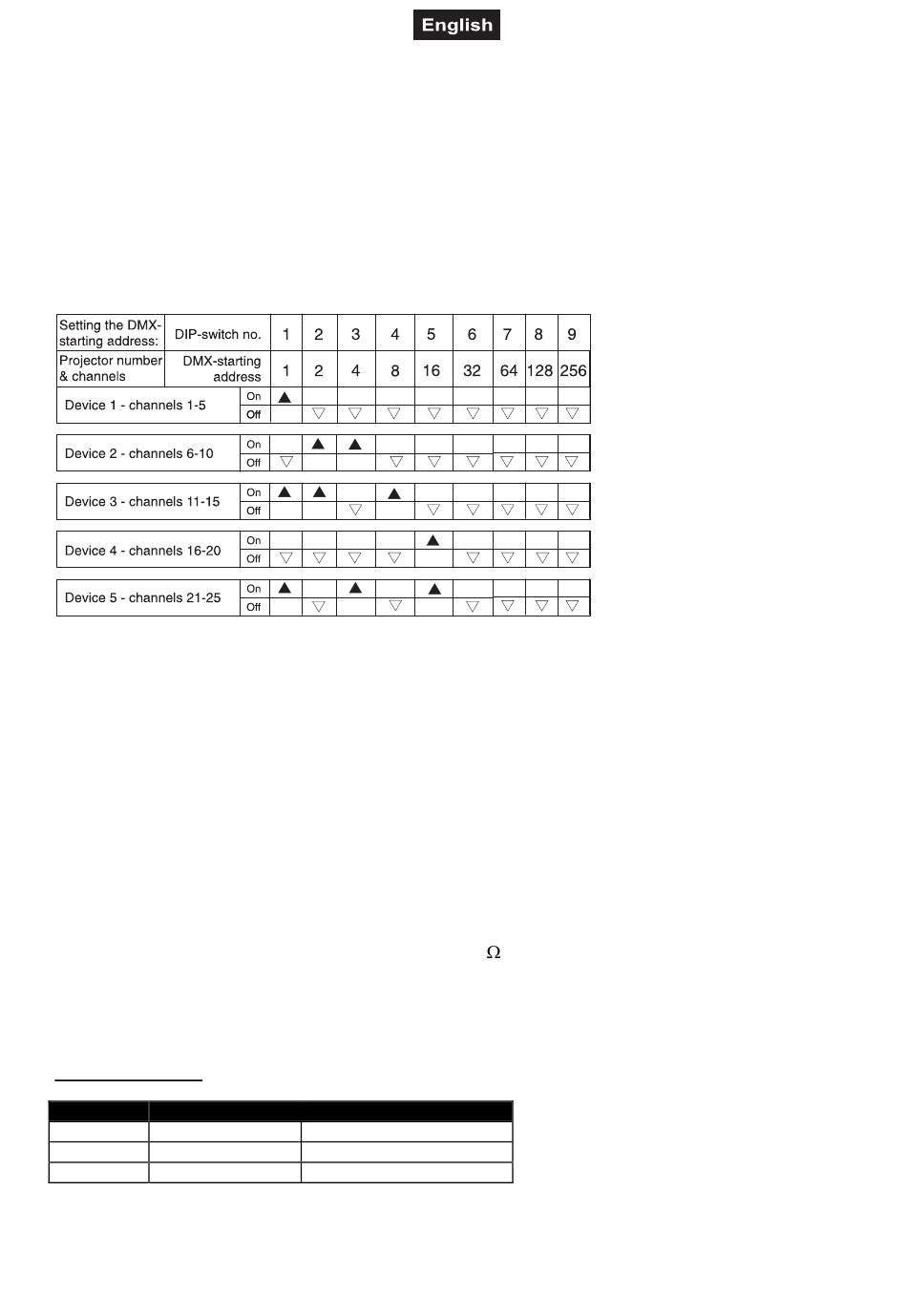

Occupation of the DIP-switches:
Controlling:
After having addressed the LED PAR-64 TCL IP65 Spot, you may now start operating it via your lighting
controller.
Note:
After switching on, the LED PAR-64 Spot will automatically detect whether DMX 512 data is received or not.
If the data is received, the control LED flashes. If there is no data received at the DMX-input, the control LED
lights up permanently.
This situation can occur if:
- the 3 PIN XLR plug (cable with DMX signal from controller) is not connected with the input of LED PAR-64
TCL IP65 Spot.
- the controller is switched off or defective.
- if the cable or connector is defective or the signal wires are swapped in the input connector.
Attention:
It's necessary to insert the XLR termination plug (with 120
proper transmission on the DMX data link.

DMX-protocol

3-channel protocol
Channel: Value:
1 000 – 255
2 000 – 255
3 000 – 255
Function:
Red (0 – 100%)
Green (0 – 100%)
Blue (0 – 100%)
20/21
) in the last lighting in the link in order to ensure
