Caution: At the last fixture, the DMX-cable has to be terminated. Plug the terminator with a 120
between Signal (–) and Signal (+) in the DMX-output of the last fixture.
Master/Slave operation
The master/slave operation enables that several devices can be synchronized and controlled by one master
device.
On the rear panel of the device you can find an XLR jack and an XLR plug, which can be used for
connecting several devices.
Choose the device which is to control the effects. This device then works as master device and controls all
other slave devices, which are to be connected to the master device via a balanced microphone lead.
Connect the OUT jack with the IN plug of the next device.
When data is received, the Master control LED lights up permanently and the Slave control LED blinks.
Note: Master/Slave-Operation is not possible in DMX Modes.
Connection with the mains
Connect the device to the mains with the power-plug.
The occupation of the connection-cables is as follows:
Cable
Pin
Brown
Live
Blue
Neutral
Yellow/Green
Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum
fault current of 30 mA.
Lighting effects must not be connected to dimming-packs.
OPERATION
The device has two operating modes. It can be operated via the Display Module or it can be run in DMX-
controlled mode via a DMX controller.
After you connected the spot to the mains, the EUROLITE LED PAR-64 TCL IP65 Spot starts running.

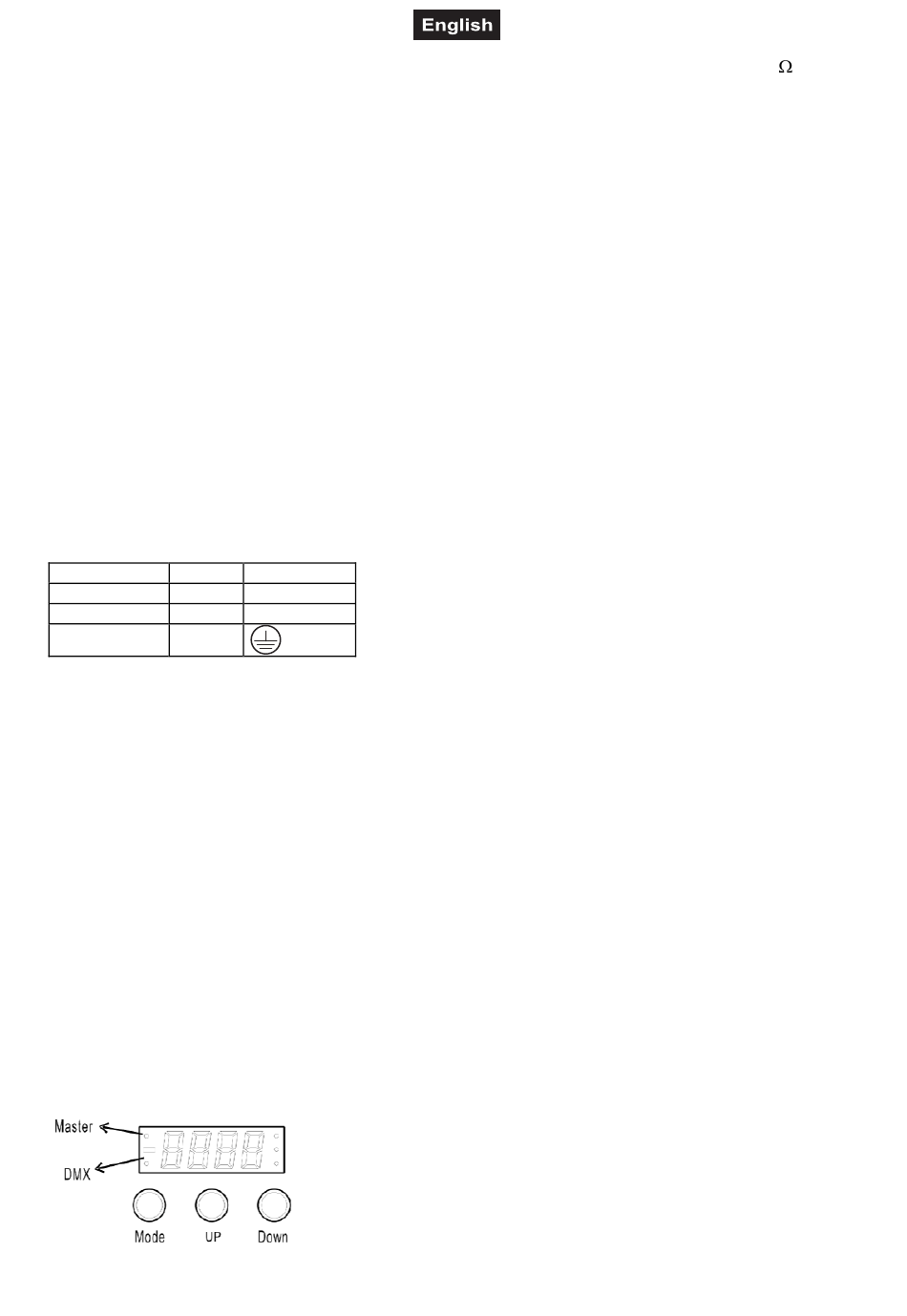

OPERATION VIA DISPLAY
International
L
N
The display lights up and you can choose the desired mode via the
MODE button.
The desired values can be selected via the UP or DOWN buttons.
18/21
resistor
00035974.DOC, Version 1.3
