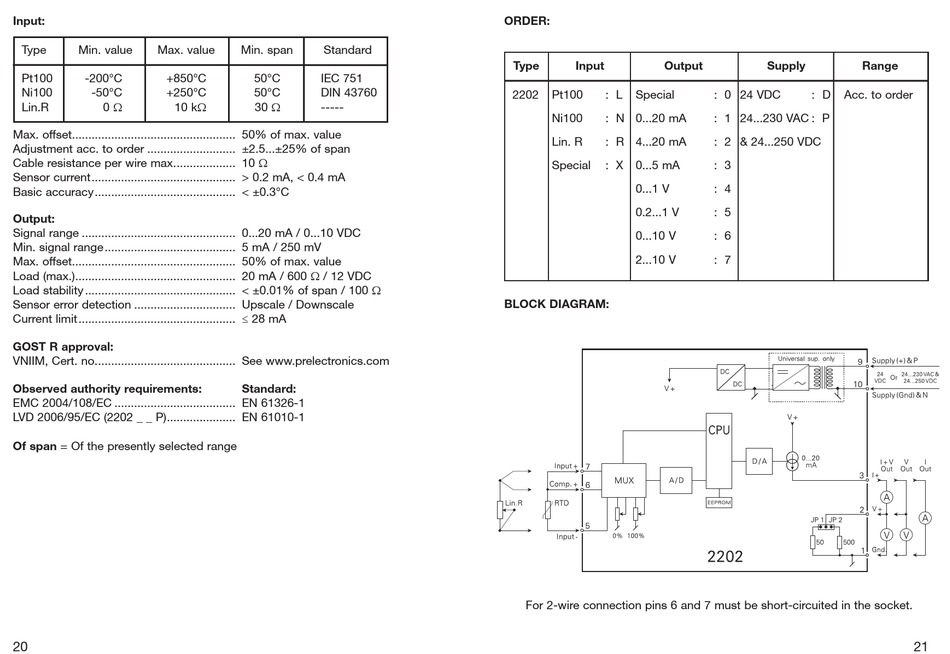

Order; Block Diagram - PR electronics 2202 Bedienungsanleitung

Input:
Type Min. value Max. value
Pt100 -200°C +850°C
Ni100 -50°C +250°C
0 
Lin.R 10 k
Max. offset.................................................. 50% of max. value
Adjustment acc. to order ........................... ±2.5...±25% of span
Cable resistance per wire max. .................. 10 
Sensor current ............................................ > 0.2 mA, < 0.4 mA
Basic accuracy ........................................... < ±0.3°C
Output:
Signal range ............................................... 0...20 mA / 0...10 VDC
Min. signal range ........................................ 5 mA / 250 mV
Max. offset.................................................. 50% of max. value
Load (max.) ................................................. 20 mA / 600  / 12 VDC
Load stability .............................................. < ±0.01% of span / 100 
Sensor error detection ............................... Upscale / Downscale
Current limit ................................................  28 mA
GOST R approval:
VNIIM, Cert. no. .......................................... See www.prelectronics.com
Observed authority requirements:
EMC 2004/108/EC ..................................... EN 61326-1
LVD 2006/95/EC (2202 _ _ P) ..................... EN 61010-1
Of span = Of the presently selected range
20
Min. span Standard
50°C IEC 751
50°C DIN 43760
30 
-----
Standard:

ORDER:

Type Input Output
2202 Pt100 : L Special
Ni100 : N 0...20 mA
Lin. R : R 4...20 mA
Special : X 0...5 mA
0...1 V
0.2...1 V
0...10 V
2...10 V

BLOCK DIAGRAM:

For 2-wire connection pins 6 and 7 must be short-circuited in the socket.
Supply Range
: 0 24 VDC : D Acc. to order
: 1 24...230 VAC : P
: 2 & 24...250 VDC
: 3
: 4
: 5
: 6
: 7
