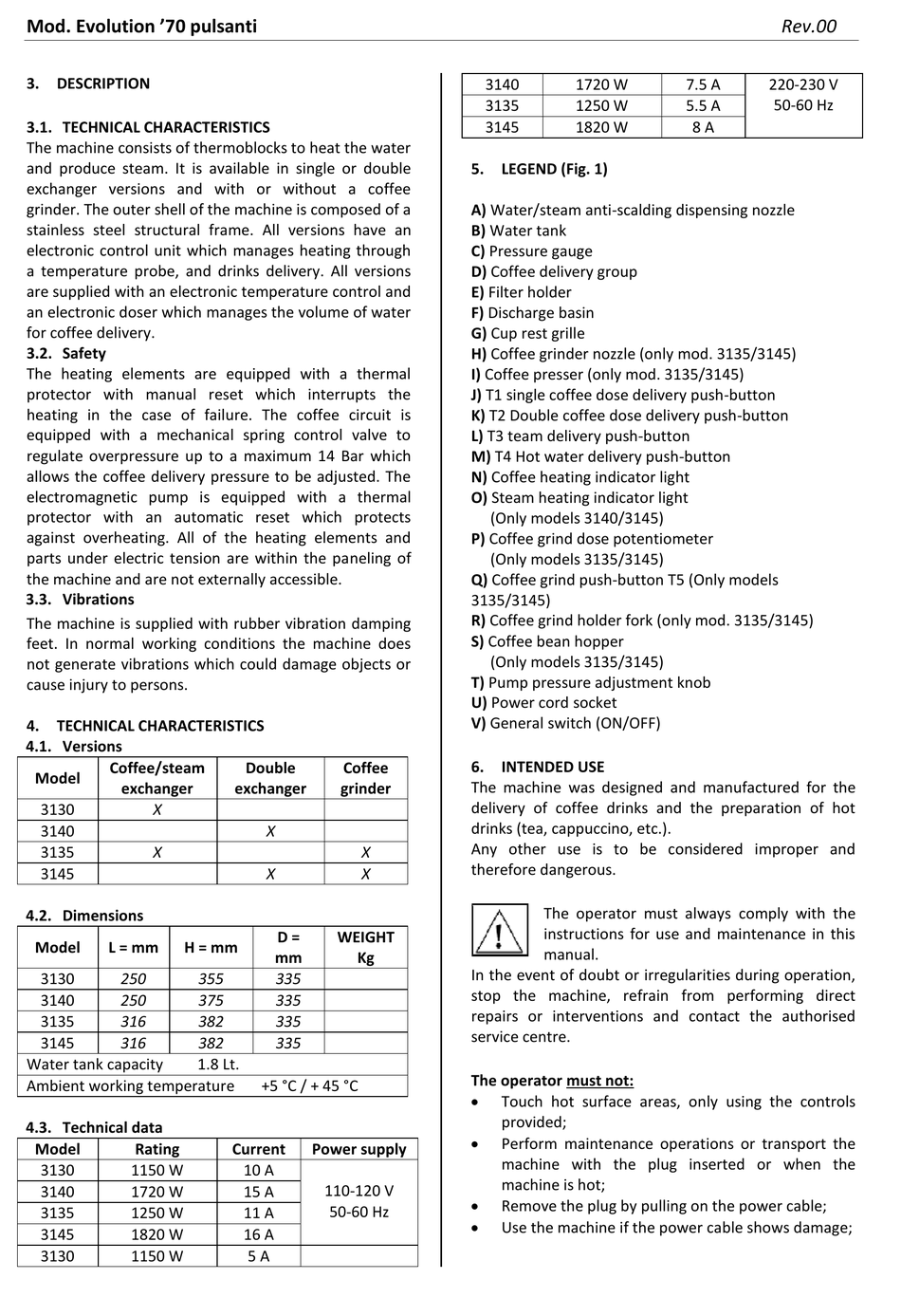

Mod. Evolution '70 pulsanti
3. DESCRIPTION
3.1. TECHNICAL CHARACTERISTICS
The machine consists of thermoblocks to heat the water
and produce steam. It is available in single or double
exchanger versions and with or without a coffee
grinder. The outer shell of the machine is composed of a
stainless steel structural frame. All versions have an
electronic control unit which manages heating through
a temperature probe, and drinks delivery. All versions
are supplied with an electronic temperature control and
an electronic doser which manages the volume of water
for coffee delivery.
3.2. Safety
The heating elements are equipped with a thermal
protector with manual reset which interrupts the
heating in the case of failure. The coffee circuit is
equipped with a mechanical spring control valve to
regulate overpressure up to a maximum 14 Bar which
allows the coffee delivery pressure to be adjusted. The
electromagnetic pump is equipped with a thermal
protector with an automatic reset which protects
against overheating. All of the heating elements and
parts under electric tension are within the paneling of
the machine and are not externally accessible.
3.3. Vibrations
The machine is supplied with rubber vibration damping
feet. In normal working conditions the machine does
not generate vibrations which could damage objects or
cause injury to persons.
4. TECHNICAL CHARACTERISTICS
4.1. Versions
Coffee/steam
Model
exchanger
3130 X
3140
3135 X
3145
4.2. Dimensions
Model L = mm H = mm
3130 250
3140 250
3135 316
3145 316
Water tank capacity
Ambient working temperature
4.3. Technical data
Model Rating
3130 1150 W
3140 1720 W
3135 1250 W
3145 1820 W
3130 1150 W
Double Coffee
exchanger grinder
X
X
X X
D = WEIGHT
mm Kg
355 335
375 335
382 335
382 335
1.8 Lt.
+5 °C / + 45 °C
Current Power supply
10 A
110-120 V
15 A
50-60 Hz
11 A
16 A
5 A
3140 1720 W
3135 1250 W
3145 1820 W
5. LEGEND (Fig. 1)
A) Water/steam anti-scalding dispensing nozzle
B) Water tank
C) Pressure gauge
D) Coffee delivery group
E) Filter holder
F) Discharge basin
G) Cup rest grille
H) Coffee grinder nozzle (only mod. 3135/3145)
I) Coffee presser (only mod. 3135/3145)
J) T1 single coffee dose delivery push-button
K) T2 Double coffee dose delivery push-button
L) T3 team delivery push-button
M) T4 Hot water delivery push-button
N) Coffee heating indicator light
O) Steam heating indicator light
(Only models 3140/3145)
P) Coffee grind dose potentiometer
(Only models 3135/3145)
Q) Coffee grind push-button T5 (Only models
3135/3145)
R) Coffee grind holder fork (only mod. 3135/3145)
S) Coffee bean hopper
(Only models 3135/3145)
T) Pump pressure adjustment knob
U) Power cord socket
V) General switch (ON/OFF)

6. INTENDED USE

The machine was designed and manufactured for the
delivery of coffee drinks and the preparation of hot
drinks (tea, cappuccino, etc.).
Any other use is to be considered improper and
therefore dangerous.
The operator must always comply with the
instructions for use and maintenance in this
manual.
In the event of doubt or irregularities during operation,
stop the machine, refrain from performing direct
repairs or interventions and contact the authorised
service centre.
The operator must not:

Touch hot surface areas, only using the controls
provided;

Perform maintenance operations or transport the
machine with the plug inserted or when the
machine is hot;

Remove the plug by pulling on the power cable;

Use the machine if the power cable shows damage;
Rev.00
7.5 A 220-230 V
50-60 Hz
5.5 A
8 A
