LIGNOpal
(13)
(12)
(1)
(8)

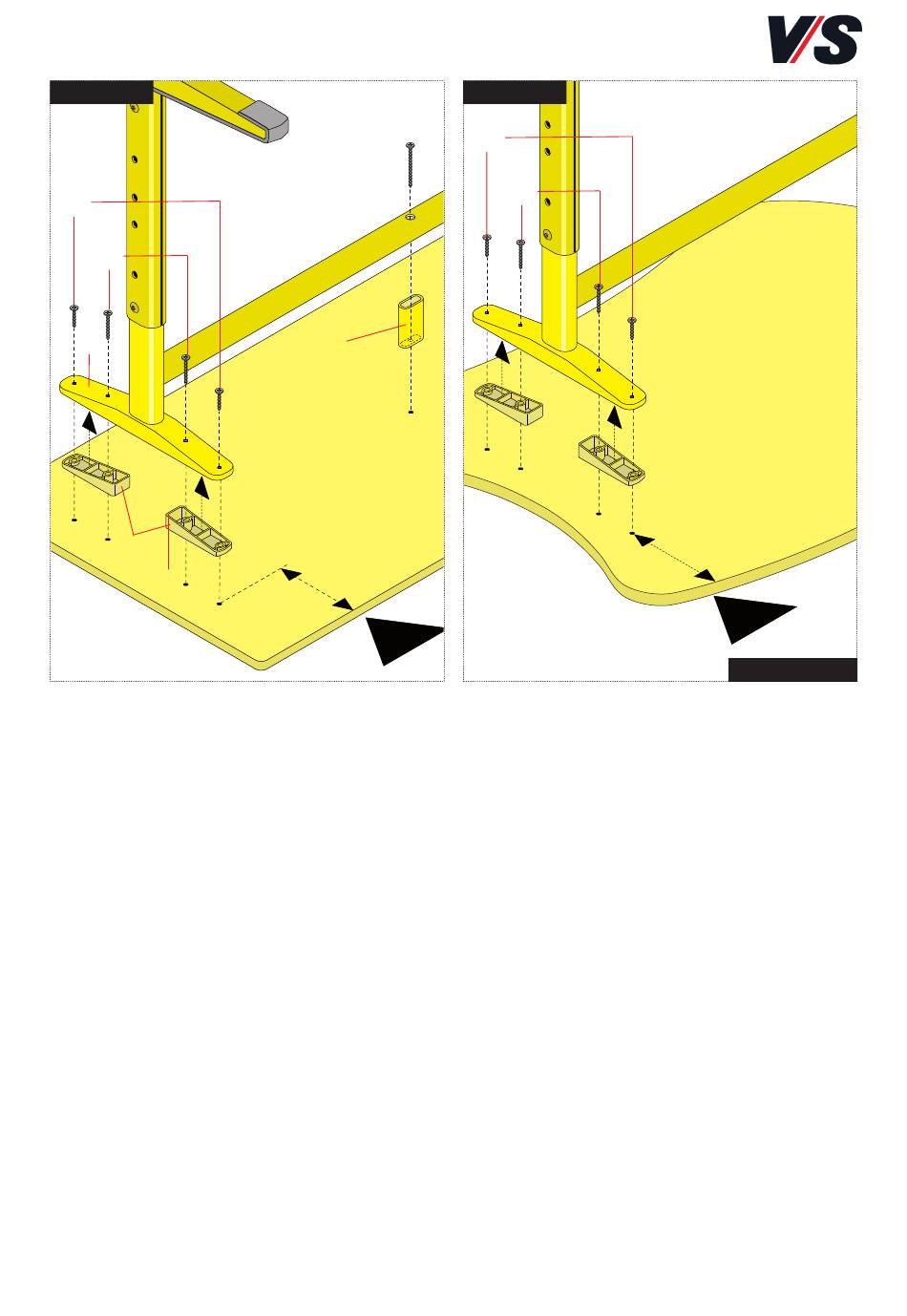

3. Screwing on table frame
LIGNOpal
Uno-M-Step 22406, 22407, 22410,
22412, 22413
UnoBean-Step 01468

Turn the table top over and lay on a clean assembly surface

(e.g. protective cover, etc.).

- LIGNOpal one-seater 22410, 22412
Press four filler pieces (8) into the frame (1) . Lay the
table frame (1) on the underside of the table top (10) .
Align by way of the two rows of holes. The front left
fastening position (11) is 140 mm from the user side
. Screw down on each side with the two 6x32 mm
(4)
Spax screws at the inner (12) and with 6x24 mm at the
outer (13) positions.
LIGNOpal
(13)
(14)
(10)
(11)
(4)
-
-
-
(12)
LIGNOpal two-seater 22406, 22413
Position the table-top support (14) 325 mm from the
user side (4) . Press four filler pieces (8) into the frame
. Lay the table frame (1) on the underside of the ta-
(1)
ble top (10) . Align by way of the two rows of holes. The
front left fastening position (11) is 140 mm from the
user side (4) . Screw down on each side with the two
6x32 mm Spax screws at the inner (12) and with 6x24
mm at the outer (13) positions. Screw on the table-top
support (14) with one 6x80 mm countersunk-head
screw.
LIGNOpal two-seater 22407
As two-seater 22406 above.
LIGNOpal one-seater 01468
As one-seater 22410 above. But the front left fastening
position (16) is 165 mm from the user side (4) .
(16)
(4)
Model 01468
11
