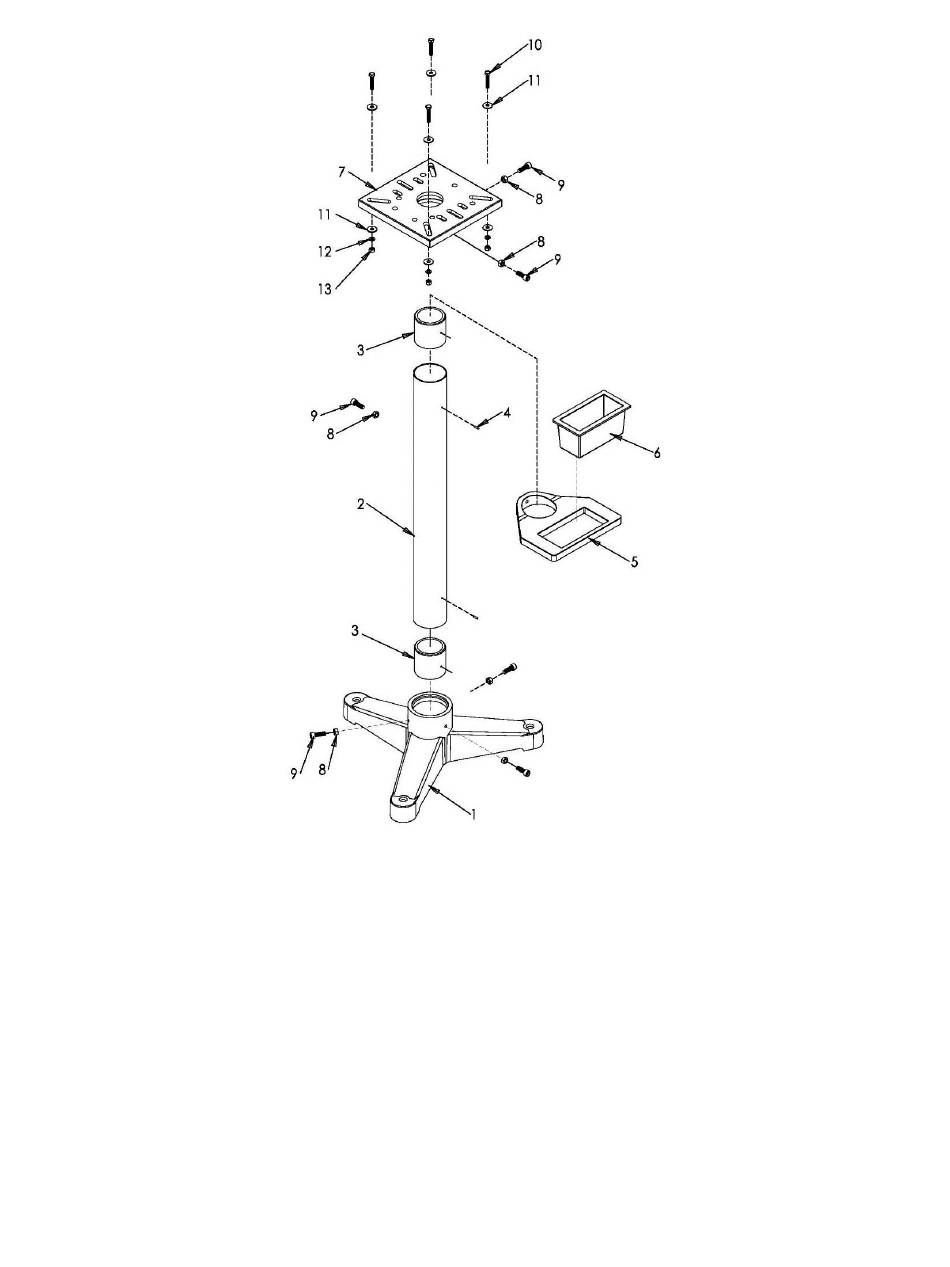

11.2.1 IBG-Sockeleinheit (OPTION) – Explosionsdarstellung
11.2.2 IBG- Sockeleinheit (OPTION) – Stückliste
Pos. Nr.
Sachnr.
Bezeichnung
Größe
Menge
.................. 578172 ...................... IBG-Sockel für Schleifbock (Pos. 1 bis 13) .............. ...................................... 1
1 ................ IBGS-01 .................... Fuß .......................................................................... ...................................... 1
2 ................ IBGS-02 .................... Träger (enthält Pos. 3 u. 4) ...................................... ...................................... 1
3 ................ IBGS-03 .................... Verbindungsring ...................................................... ...................................... 2
4 ................ IBGS-04 .................... Stift........................................................................... Ø4 x 14 ......................... 2
5 ................ IBGS-05 .................... Wasserbehälterträger .............................................. ...................................... 1
6 ................ IBGS-06 .................... Wasserbehälter........................................................ ...................................... 1
7 ................ IBGS-07 .................... Platte........................................................................ ...................................... 1
8 ................ TS-1540071 .............. Sechskantmutter ...................................................... M10 ............................... 6
9 ................ TS-1505041 .............. Inbusschraube ......................................................... M10 X 30 ...................... 6
10 .............. TS-1490071 .............. Sechskantschraube ................................................. M8 x 40 ......................... 4
11 .............. TS-1550061 .............. Unterlegscheibe ....................................................... M8 ................................. 8
12 .............. TS-2361081 .............. Sicherungsscheibe .................................................. M8 ................................. 4
13 .............. TS-1540061 .............. Sechskantmutter ...................................................... M8 ................................. 4
21
