Strobel VEB100-1 Mechanikeranleitung Seite 43

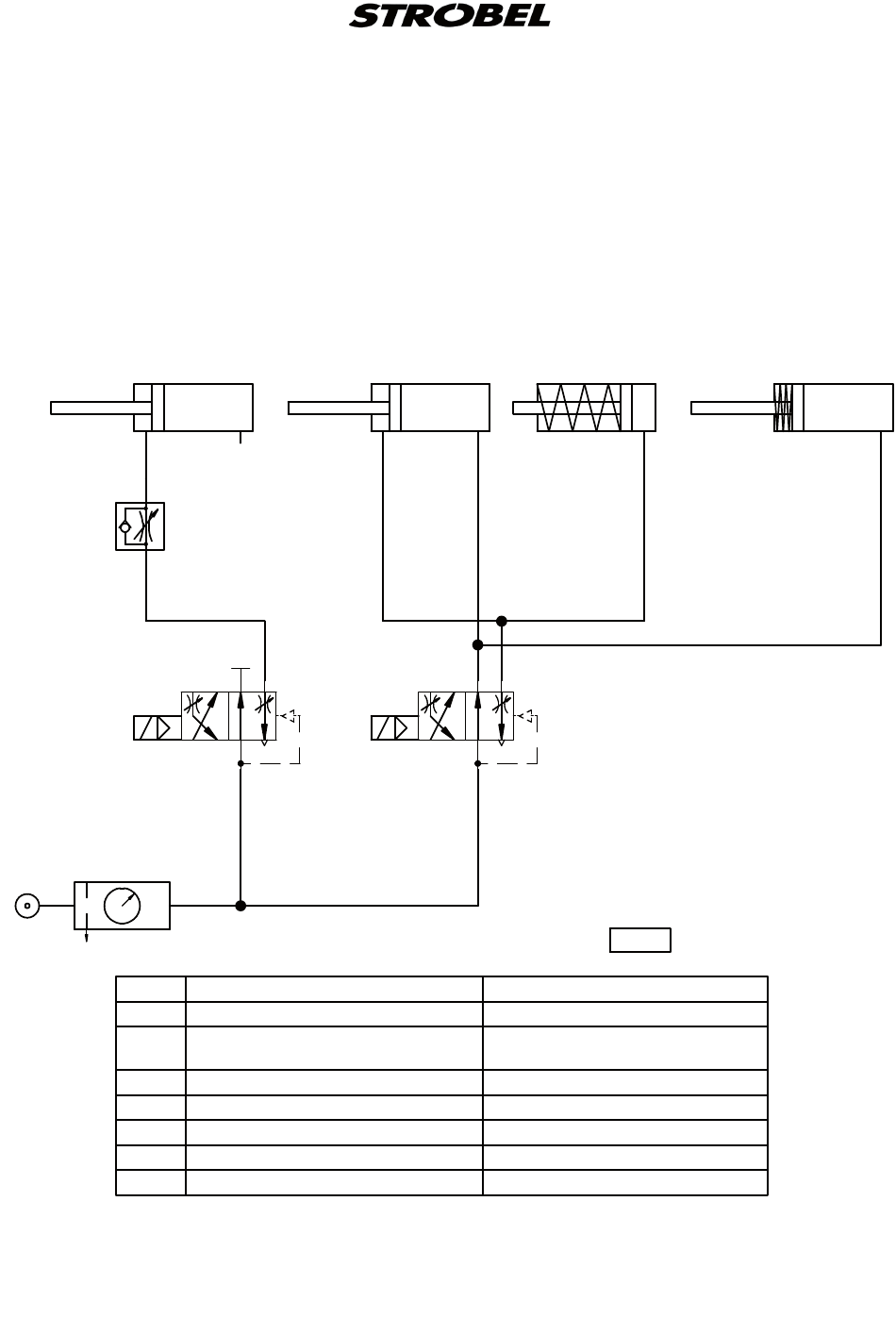

Pneumatischer Schaltplan Kl. VEB100-1, -2, -2W, VEB200-1, -2
Pneumatic circuit diagram cl. VEB100-1, -2, -2W, VEB200-1, -2 with seam lock
1V10
1V1
0 Z 1 6bar
10bar max
0 Z 1
1 V 1
1 V 2
1 V 10
1 A 1
1 A 2
1 A 3
1 A 4
mit Nahtsicherung
1A1
B
A
P R
Wartungseinheit
4/2-Magnetventil "Lüftung"
4/2-Magnetventil "Zwischenlüftung,
Transporteur,Fadenbremse"
Drosselrückschlagventil "Lüftung"
Zylinder "Lüftung"
Zylinder "Zwischenlüftung"
Zylinder "Transporteur"
Zylinder "Fadenbremse"
259.00.65
(Efka-DC12xx)
1A2
1V2
B
A
P R
Service unit
4/2-solenoid-way valve "lifting"
4/2-solenoid-way valve "intermediate
lifting, feed, thread brake"
One-way flow restrictor "lifting"
Cylinder "lifting"
Cylinder "intermediate lifting"
Cylinder "feed"
Cylinder "thread brake"
1A3
195.0515
1A4
