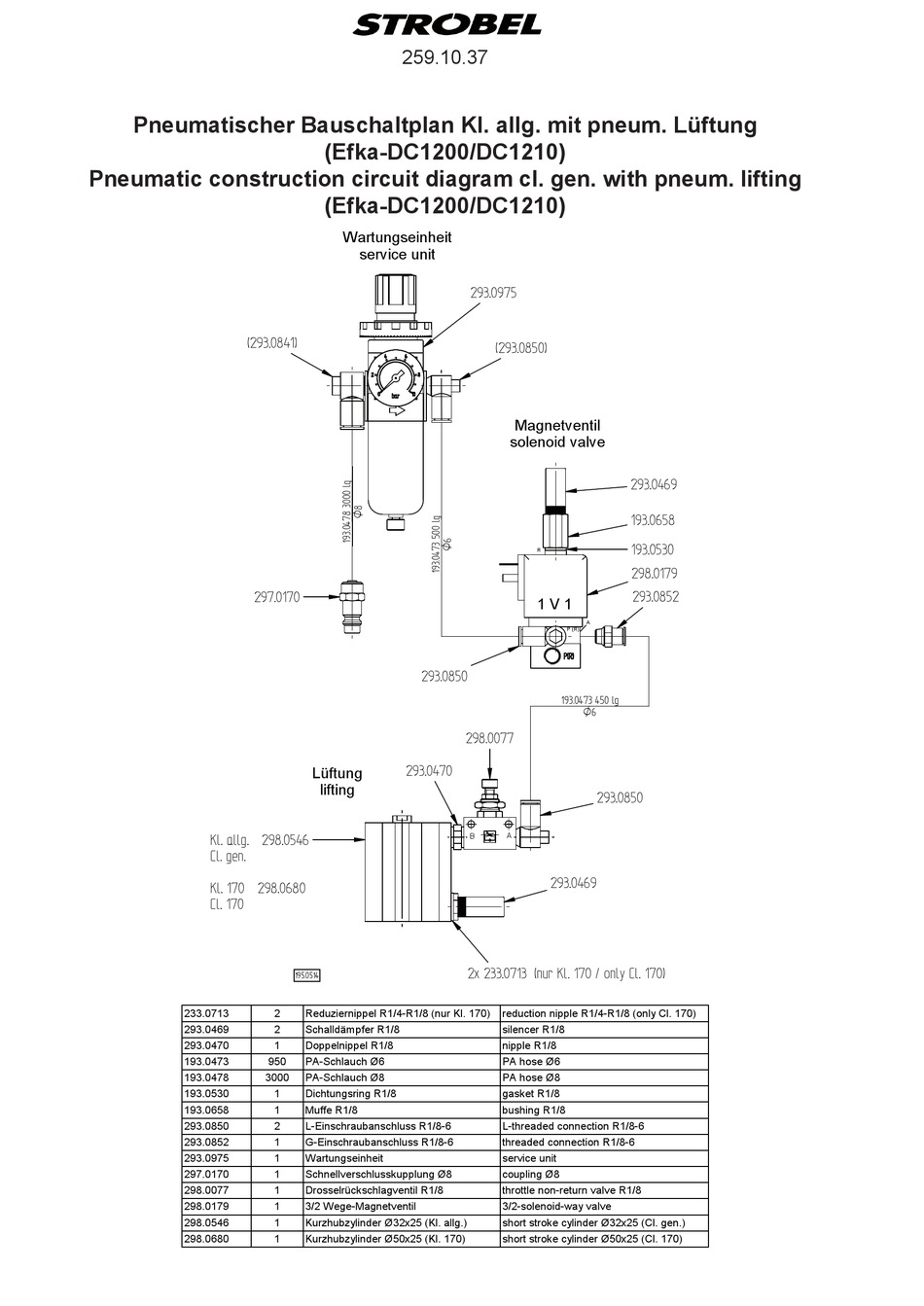

Pneumatischer Bauschaltplan Kl. allg. mit pneum. Lüftung
Pneumatic construction circuit diagram cl. gen. with pneum. lifting
(293.0841)
Kl. allg. 298.0546
Cl. gen.
Kl. 170 298.0680
Cl. 170
233.0713
293.0469
293.0470
193.0473
193.0478
193.0530
193.0658
293.0850
293.0852
293.0975
297.0170
298.0077
298.0179
298.0546
298.0680
259.10.37
(Efka-DC1200/DC1210)
(Efka-DC1200/DC1210)
Wartungseinheit
service unit
297.0170
293.0470
Lüftung
lifting
195.0514
2
Reduziernippel R1/4-R1/8 (nur Kl. 170)
2
Schalldämpfer R1/8
1
Doppelnippel R1/8
950
PA-Schlauch Ø6
3000
PA-Schlauch Ø8
1
Dichtungsring R1/8
1
Muffe R1/8
2
L-Einschraubanschluss R1/8-6
1
G-Einschraubanschluss R1/8-6
1
Wartungseinheit
1
Schnellverschlusskupplung Ø8
1
Drosselrückschlagventil R1/8
1
3/2 Wege-Magnetventil
1
Kurzhubzylinder Ø32x25 (Kl. allg.)
1
Kurzhubzylinder Ø50x25 (Kl. 170)
293.0975
(293.0850)
Magnetventil
solenoid valve
R
1 V 1
P (R)
293.0850
193.0473 450 lg
O 6
298.0077
B
A
293.0469
2x 233.0713 (nur Kl. 170 / only Cl. 170)
reduction nipple R1/4-R1/8 (only Cl. 170)
silencer R1/8
nipple R1/8
PA hose Ø6
PA hose Ø8
gasket R1/8
bushing R1/8
L-threaded connection R1/8-6
threaded connection R1/8-6
service unit
coupling Ø8
throttle non-return valve R1/8
3/2-solenoid-way valve
short stroke cylinder Ø32x25 (Cl. gen.)
short stroke cylinder Ø50x25 (Cl. 170)
293.0469
193.0658
193.0530
298.0179
293.0852
A
293.0850
