• The distance of at least 10mm between Face B of the system and
an obstruction is obligatory to let out the power supply cable to the
mains socket.
• The distance of at least 200mm between Face A of the system and an
obstruction is recommended so as to be able to remove the door and
gain access to the technical compartment.
If the surface is not flat, unscrew the foot that is not touching and adjust
its height until it contacts the surface so as to ensure the stability of the
system. The system must in fact be placed in a safe and stable position,
ensuring that its axis is vertical: it must not be in an inclined position.
2.2.1 Hydraulic connections
Make the connection at input to the system through the mouth on Face C
marked "IN" in Fig.9 (suction connection). Then remove the cap using a screw-
driver. Make the connection at output from the system through the mouth on
Face C marked "OUT 1" in Fig. 9 and/or through the mouth on Face F marked
"OUT 2" in Fig. 9 (delivery connection).
In this configuration either of the 2 mouths can be used as an alternative to
the other (depending on the convenience of the installation), or simultaneously
(dual delivery system). Then remove the cap(s) from the door(s) you intend
to use with a screwdriver.
All the hydraulic connections of the system to the plant to which it can be con-
nected are of the threaded female type 1" GAS, made of brass.
See WARNING for Figure 8.

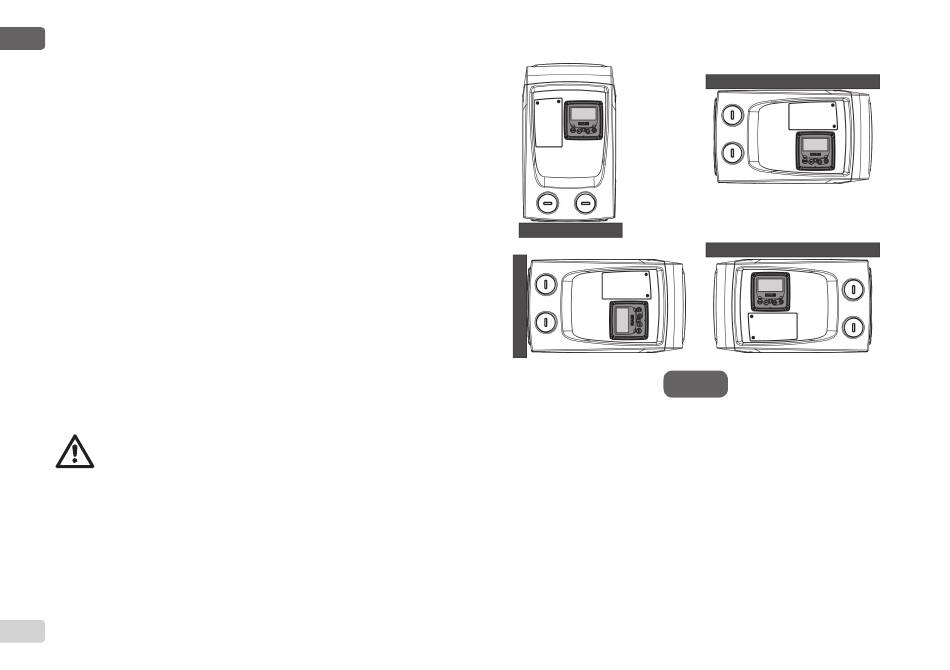

2.2.2 Orientation of the Interface Panel
The Interface Panel has been designed so that it can be oriented in the
direction where it is most convenient for the user to read: its square shape
allows it to be rotated from 90° to 90° (Fig.10).
47
Figure 10
• Disengage the 4 screws at the corners of the panel using the acces-
sory tool.
• Do not remove the screws completely, just disengage them from the
thread on the product body.
• Be careful not to drop the screws into the system.
• Move the panel away, taking care not to pull on the signal transmis-
sion cable.
• Reposition the panel in its seat at the preferred angle taking care not
to pinch the cable.
• Tighten the 4 screws with the wrench.
