4. MOUNTING AND CONNECTION

1
Fix the LED strip at a desired place by means of the self-adhesive foil on the rear side.
2

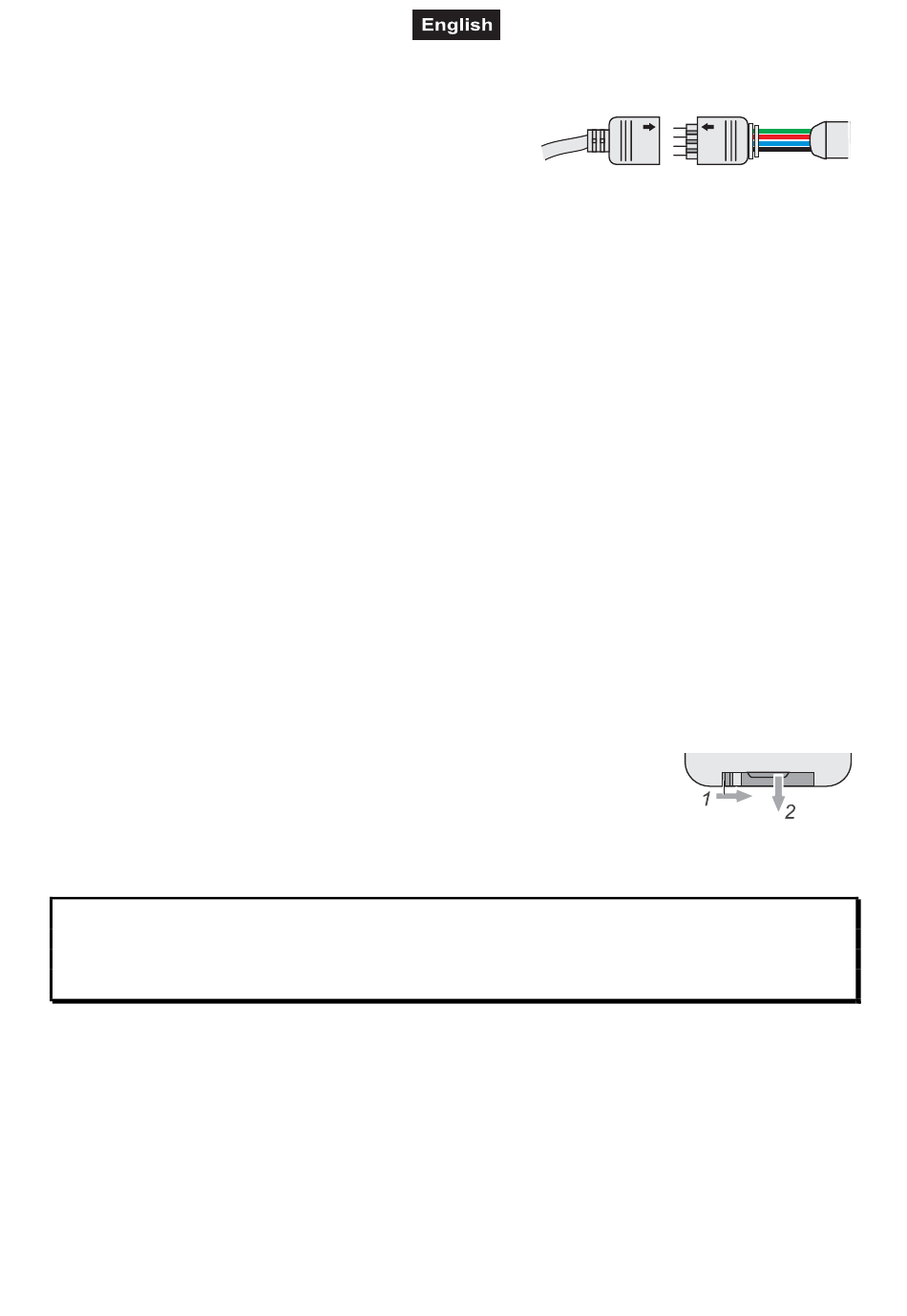

Connect the plug of the control unit to the input connector
at one end of the LED strip. The arrows of both plugs must
point to each other. Otherwise the LEDs do not light up.
3
Fix the control unit at a suitable place with two screws. Alternatively use double-sided adhesive tape.
4
Fix the infrared sensor with adhesive tape so that it is capable of receiving the control signals from the
remote control without obstacles.
5
Connect the supplied power supply unit to power input at the control unit and to a mains outlet. The
LEDs light up according to the last control program selected.
6
The LED strip can be cut at the marks. As a result the connection wires must be soldered anew. Assign
this task to a skilled professional. For custom-made versions, please make sure that the power supply
unit and the current-carrying cables of the set are not overloaded.

Interconnecting two LED strips

1
Connect the control unit to the input connector at one end of the LED strip as described above.
2
Then connect the other end to the connector of the subsequent LED strip.
3
Always make sure that the arrows on the connectors point to each other.

5. OPERATION

Remote control

1
The remote control is supplied with a battery inserted. An insulating foil between the battery and the
battery contacts prevents the battery from being discharged during storage. Prior to the first operation
remove the foil from the battery support on the rear side of the remote control. Otherwise operation of
the remote control is not possible.
2
When actuating a button, always hold the remote control in the direction of the sensor. There must be
visual connection between the remote control and the sensor.
3
If the range of the remote control decreases (3 meters as a maximum),
replace the battery. For this purpose, on the rear side of the remote control
press the small bar with the groove to the right and at the same time remove
the battery support.
4
For operation, one 3 V button cell type CR 2025 is required. When inserting, pay attention that the
positive pole of the button cell shows upwards in the support.
Danger of explosion when battery is replaced improperly. Only replace by the same type.
Please dispose of old and used batteries properly. Batteries are hazardous waste and should
CAUTION!
not be disposed of with regular domestic waste!
