Cot Operation
Operating the Breakaway Head Section
A

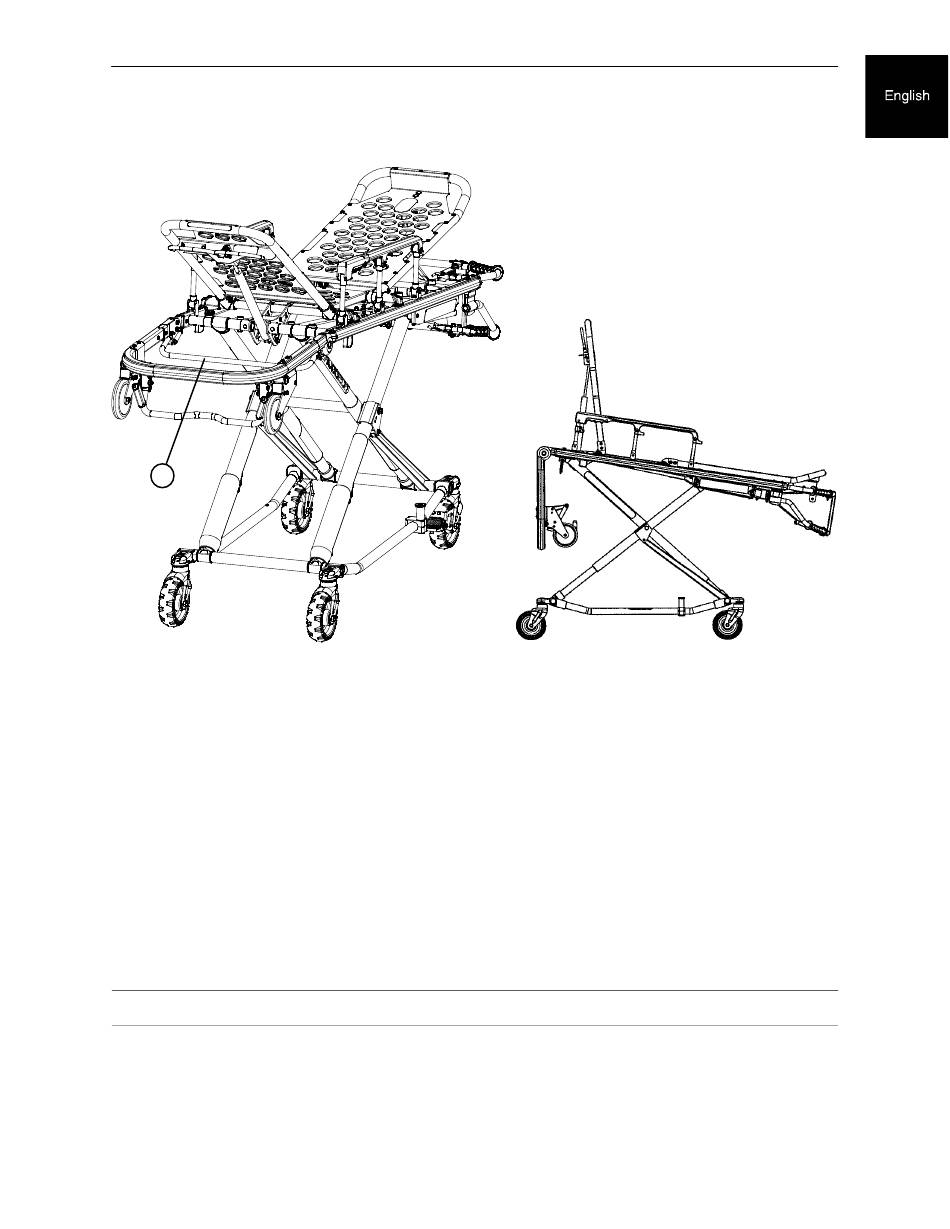

Figure 31 - Breakaway Head Section Figure 32 - Lowered Breakaway
Release Bar Head Section
The head end of the cot litter folds down to shorten the length of the cot and allow for maneuvering when space
is limited in elevators, halls, etc.
The breakaway head section should only be used when the cot is in positions 5-7 (see page 1-15 ).
To lower the breakaway head section, raise the backrest to its uppermost position (see page 1-30 for back‐
rest operation instructions). Squeeze the release bar (A) at the head end of the cot with one hand while sup‐
porting the head section with the other hand. Lower the head section.
To raise the breakaway head section, lift the break-away head section until the release bar clicks and the
head section locks into place.
CAUTION
Damage to the cot can occur if the cot is lowered in the shortened position. Use only positions 5-7 (see page
1-15 ) when the cot is shortened.
1-31
