Cot Operation
Adjusting the Leg Rest
A
B
FOOT END

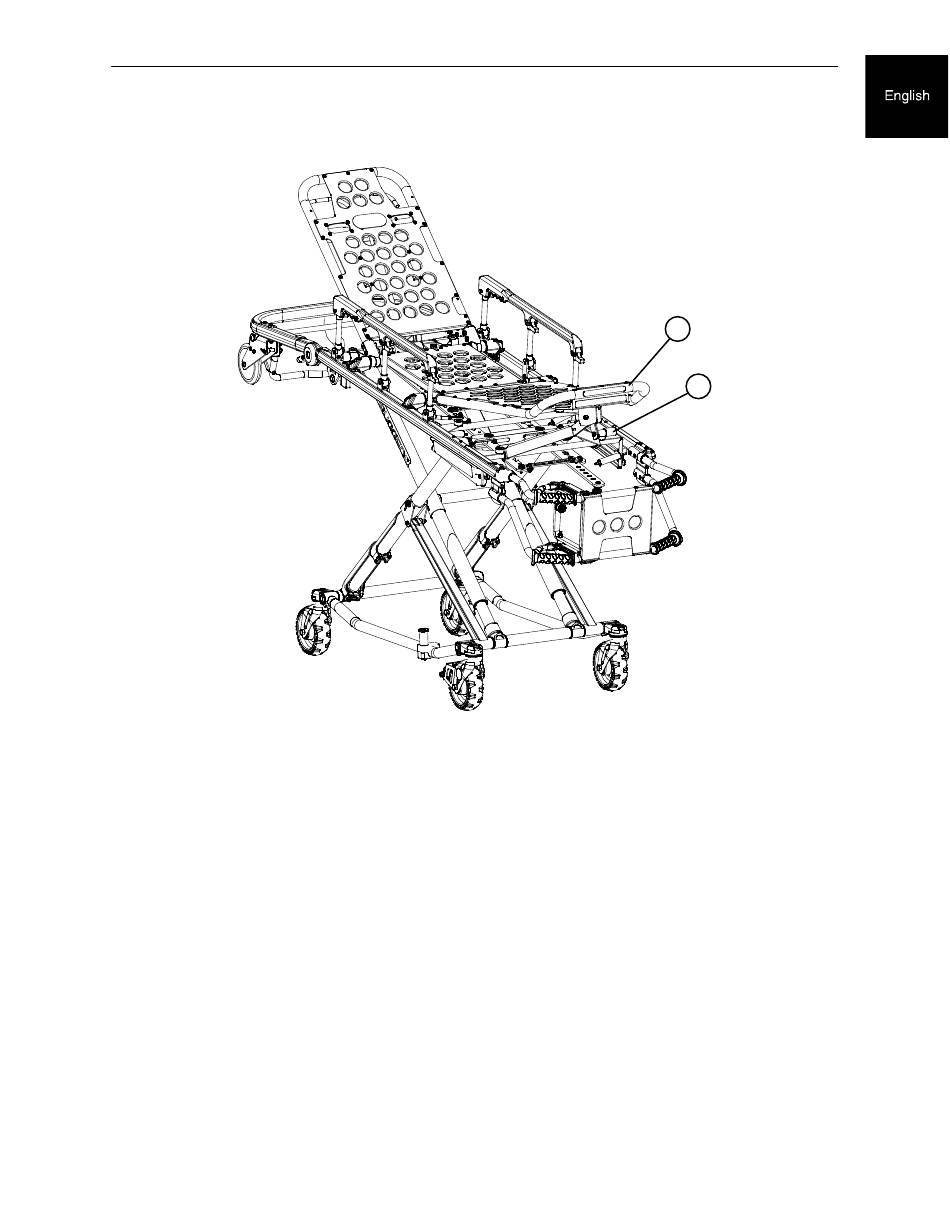

Figure 29 - Leg Rest Elevated
The leg rest is adjustable to allow for elevation of the patient's legs.
To raise the leg rest, lift the leg rest frame (A) as high as possible. The support bracket will engage automati‐
cally. Release the frame after the support bracket has engaged.
To lower the leg rest, lift the leg rest frame (A) and, while holding the frame, lift up on the release handle
(B) until the bracket disengages. Lower the leg rest until flat.
1-29
