Operation

6.1)

Stroke-controlled contacting

Activation is stroke-controlled, and involves converting the vertical stroke movement of the test
fixture (actuation stroke) into a horizontal stroke movement of the stroke bar on the side approach
mechanism (contact stroke). With an actuation stroke of 7 mm, the contact stroke is a maximum
of 16 mm.

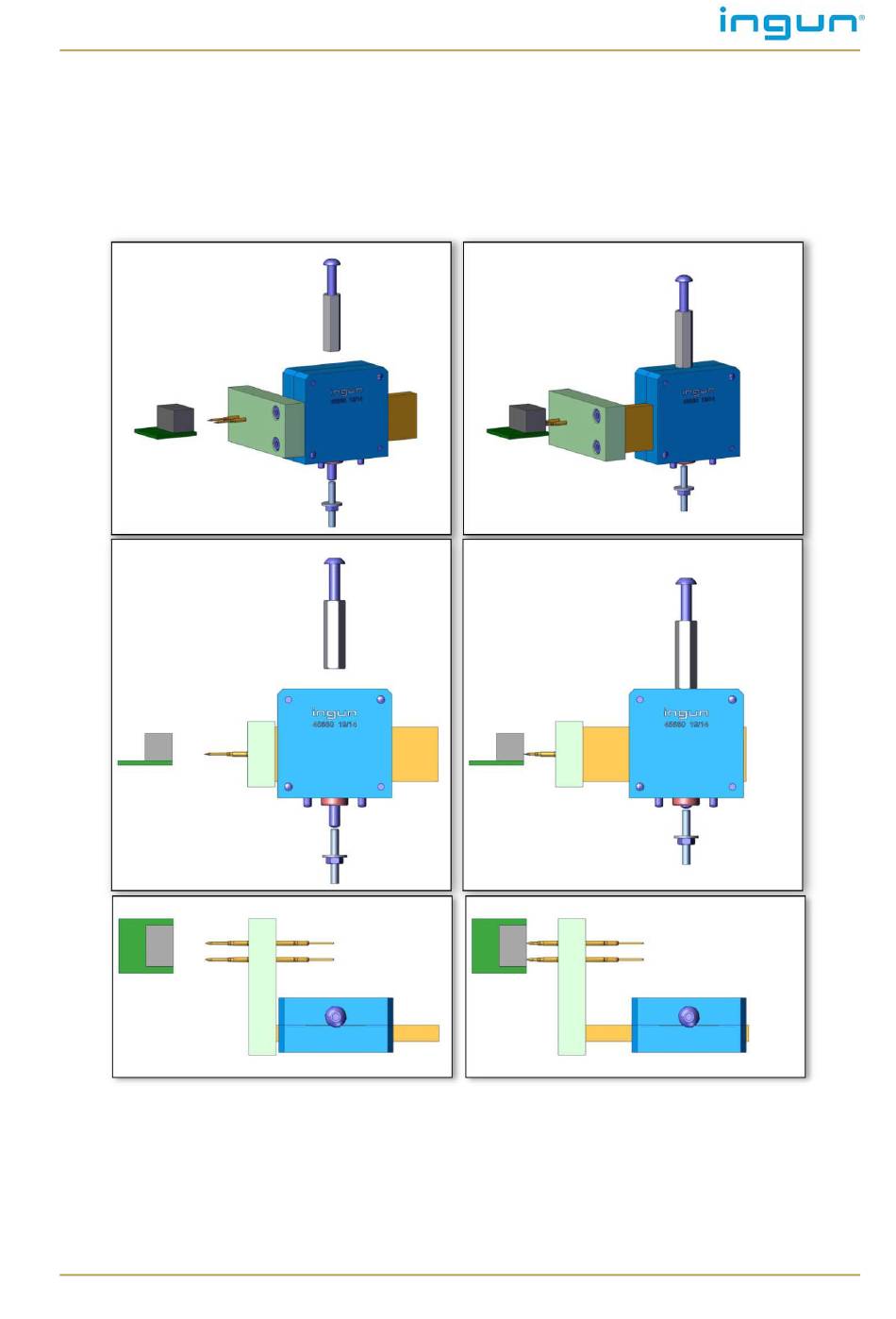

Stroke-controlled SAM, left not connected, right connected
©
