English
2.3)

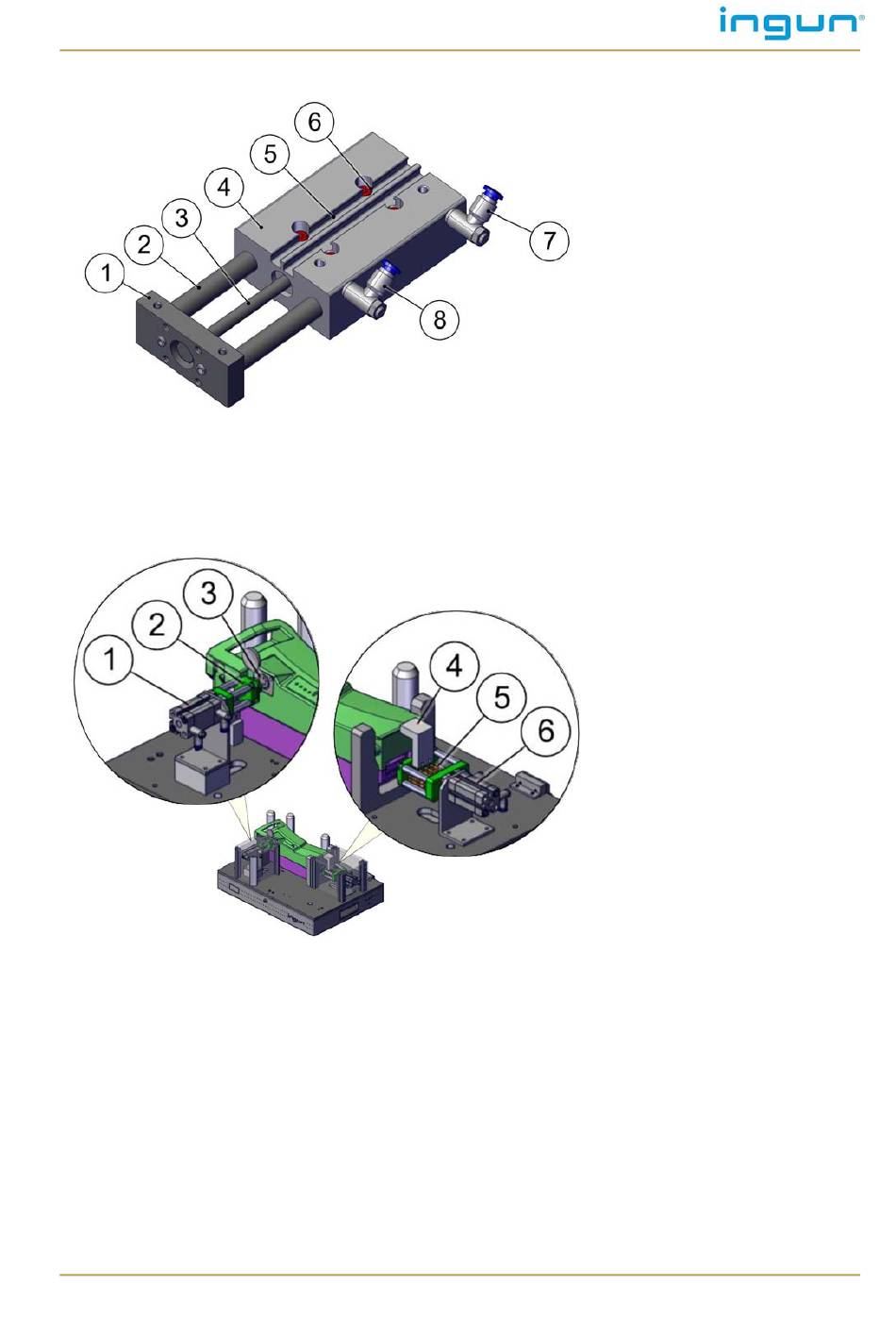

Pneumatic side approach mechanism

SAM-P-50-068N-082-105
Special adapter with pneumatic side approach mechanism
SAM-P-10-120N-028-068
©
INGUN: Subject to technical changes without notice. E&OE.
1) Mount
for contact bar
2) Guide rod
3) Piston rod
4) Housing
5) Groove for
Proximity switch
6) Pre-drilled fixing hole
7) Air connection
for contacting stroke
8) Air connection
for home position
1) Pneumatic side approach
mechanism
2) Contact bar
3) Connector jack for
contact testing
4) Retaining bracket for
device under test
5) High current probe (HSS)
6) Approach mechanism
22
