 Disasters, actions of third parties or force majeure
 Improper use of the side approach mechanisms the pneumatic test probes the special adapter
the Inline interchangeable kit
1.4) Copyright
This manual is copyrighted. The manual may not be completely or partially copied, distributed,
translated, or used in any unauthorised way for competitive purposes or passed on to others. Any
such use is permitted only with explicit authorisation of INGUN.
2)

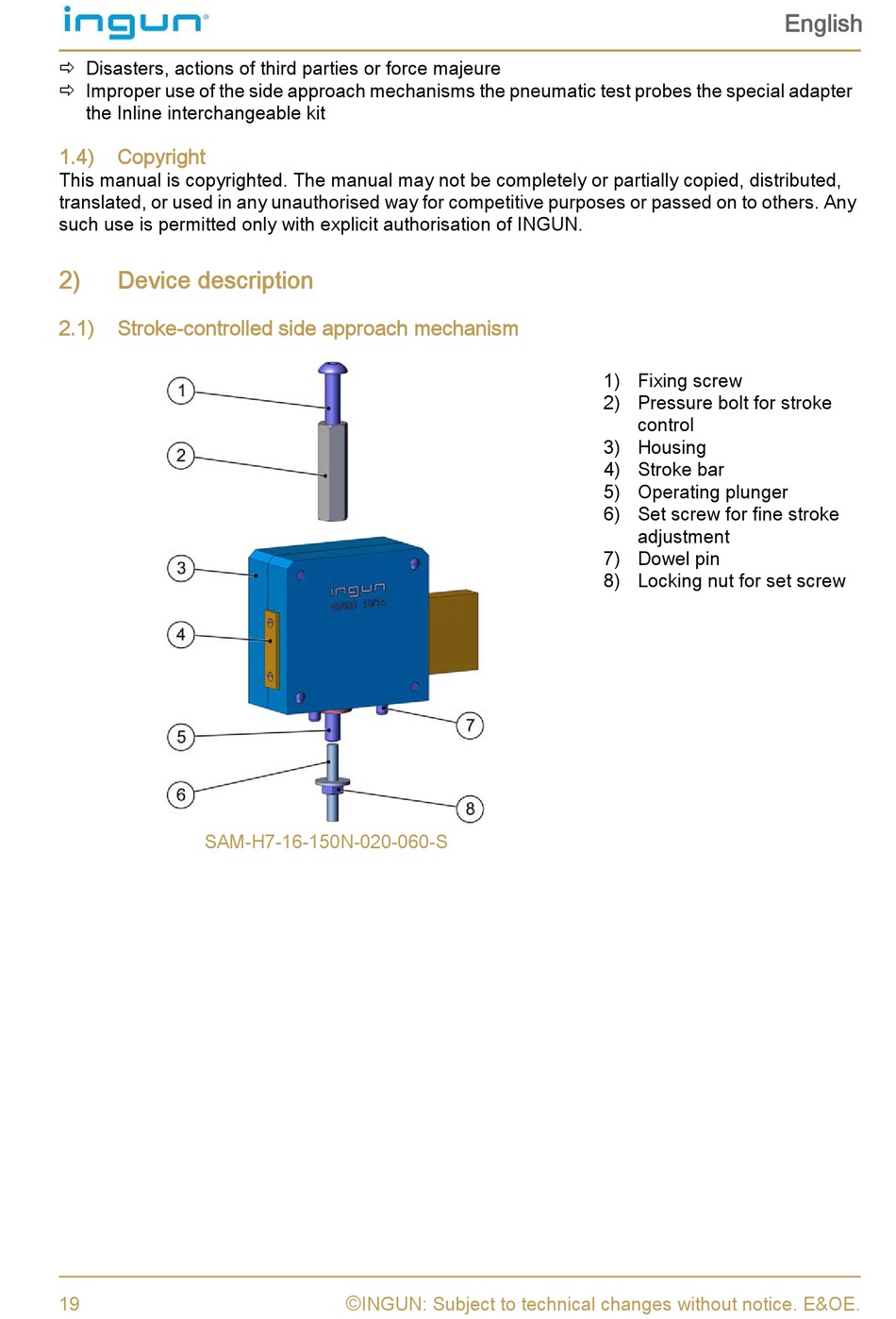

Device description

2.1)

Stroke-controlled side approach mechanism

SAM-H7-16-150N-020-060-S
19
©
INGUN: Subject to technical changes without notice. E&OE.
1) Fixing screw
2) Pressure bolt for stroke
control
3) Housing
4) Stroke bar
5) Operating plunger
6) Set screw for fine stroke
adjustment
7) Dowel pin
8) Locking nut for set screw
English
