Setting elements 4 ... 7.5 kW

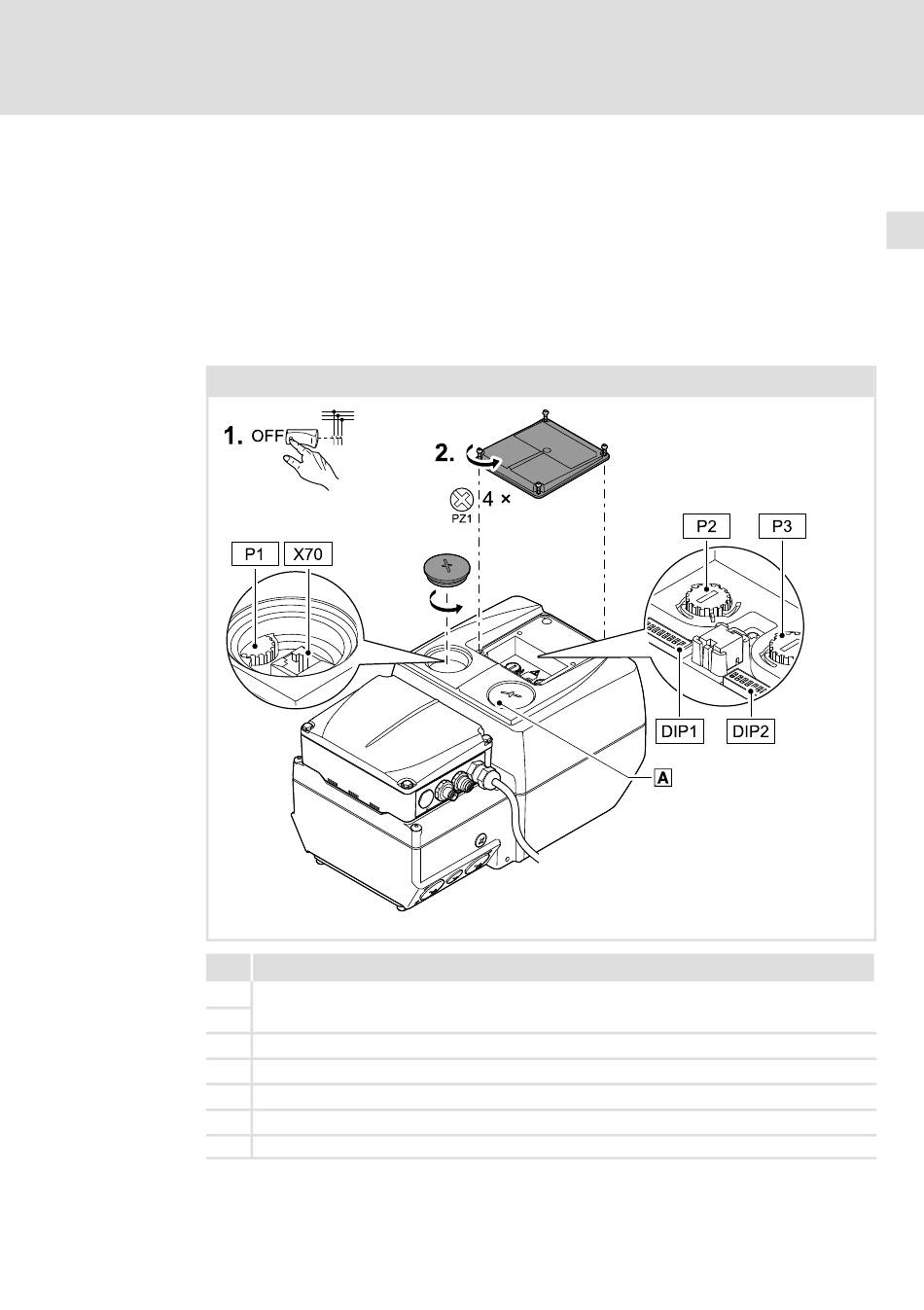

The setting elements are located on the top of the drive unit.
Provide for isolation from supply and secure to prevent a restart.
ƒ
Remove small cover on the top.
ƒ
Settings carried out via DIP1, DIP2, P2, P3, and P1 must be activated with DIP1/1.
The settings are accepted again at every mains connection. Thus, changes on
parameters made in the meantime may be overwritten.
4 ... 7.5 kW
Name
DIP1
Switch for basic setting of quick commissioning
DIP2
P1 Setting "Top Cover: Speed ... %"
P2 Setting "Speed ... %", (speed)
P3 Setting "Ramp ... s", (acceleration/deceleration time)
X70 Connection for USB diagnostic adapter E94AZCUS or diagnosis terminal
0
LED status display
