6 Settings
Setting elements 0.37 ... 3 kW

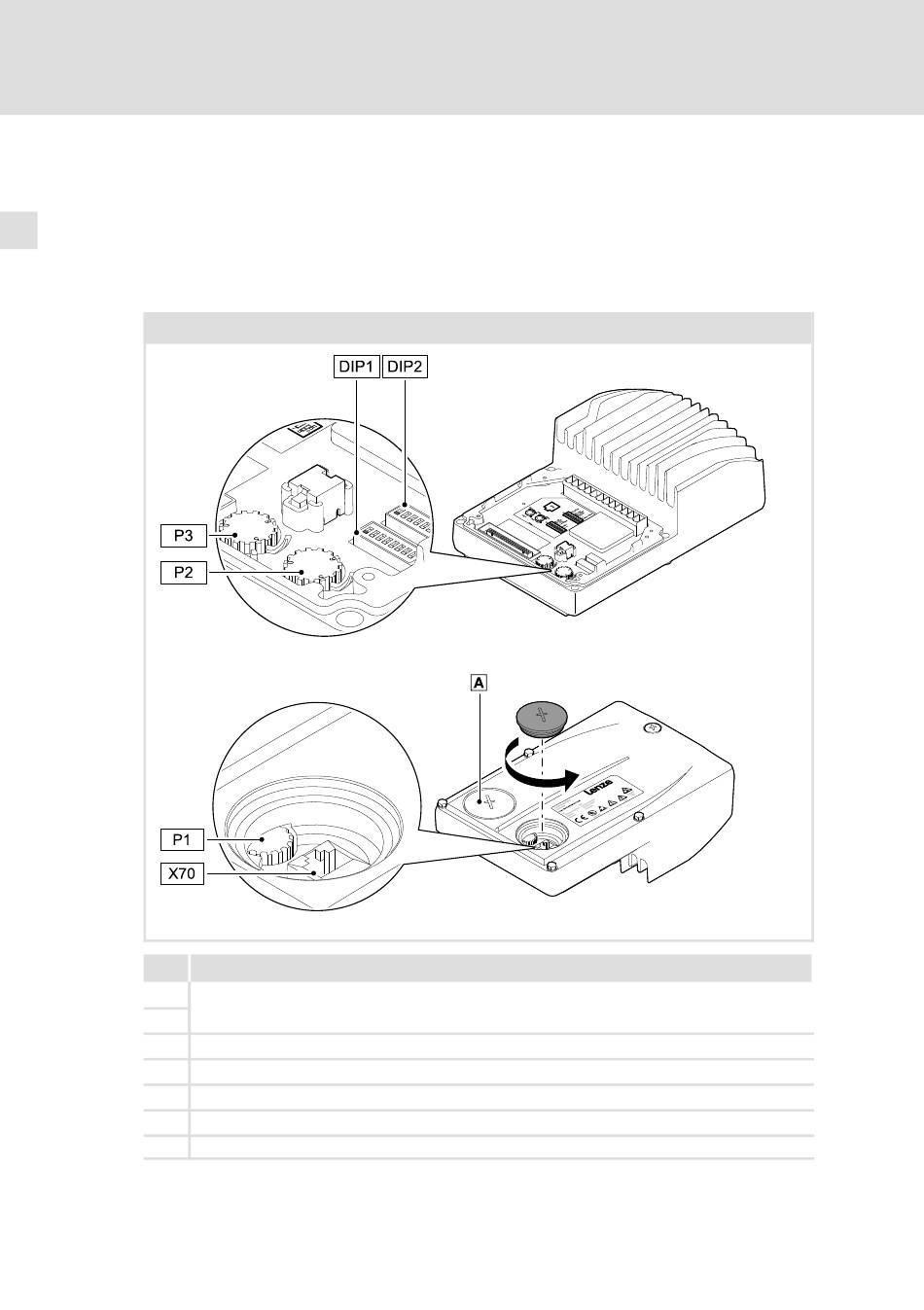

The setting elements are located on the inner side of the drive unit.
Settings carried out via DIP1, DIP2, P2, P3, and P1 must be activated with DIP1/1.
The settings are accepted again at every mains connection. Thus, changes on
parameters made in the meantime may be overwritten.
0.37 ... 3 kW
Name
DIP1
Switch for basic setting of quick commissioning
DIP2
P1 Setting "Top Cover: Speed ... %"
P2 Setting "Speed ... %", (speed)
P3 Setting "Ramp ... s", (acceleration/deceleration time)
X70 Connection for USB diagnostic adapter E94AZCUS or diagnosis terminal
0
LED status display
54
l
EDK84DGDVBxxx4 DE/EN/FR/ES/IT 6.1
E84DG041
E84DG044
