4 Mechanical installation
Mounting
4 ... 7.5 kW
The drive unit has already been mounted with the wiring unit.

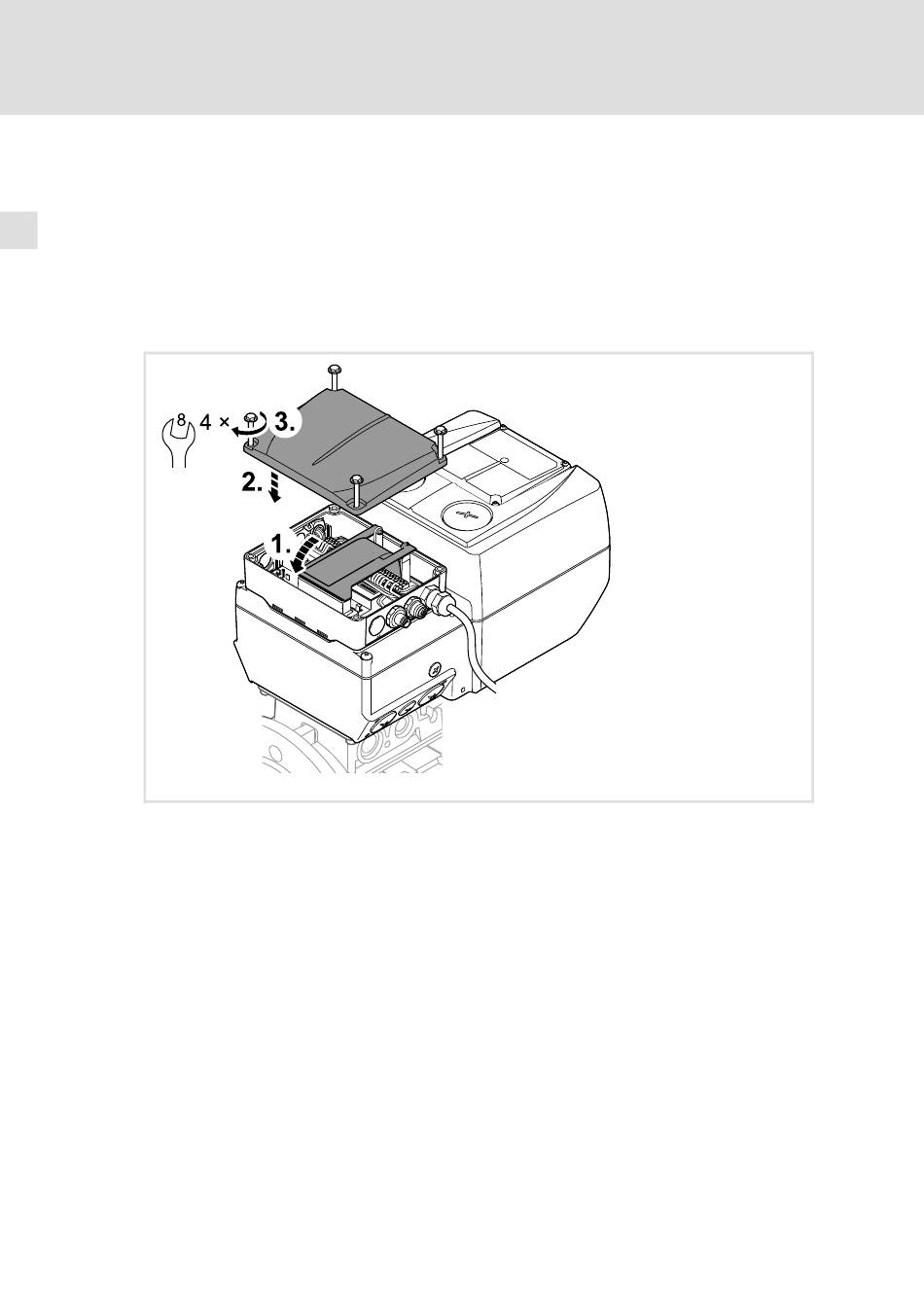

How to complete the mounting procedure:
1. Turn the hinged socket connector towards the CU and carefully insert it
into the counter plug.
2. Place the cover of the DU on the communication unit and
3. Fit it using the four screws (torque: 1.5 Nm/14 lb−in).
E84DG081
