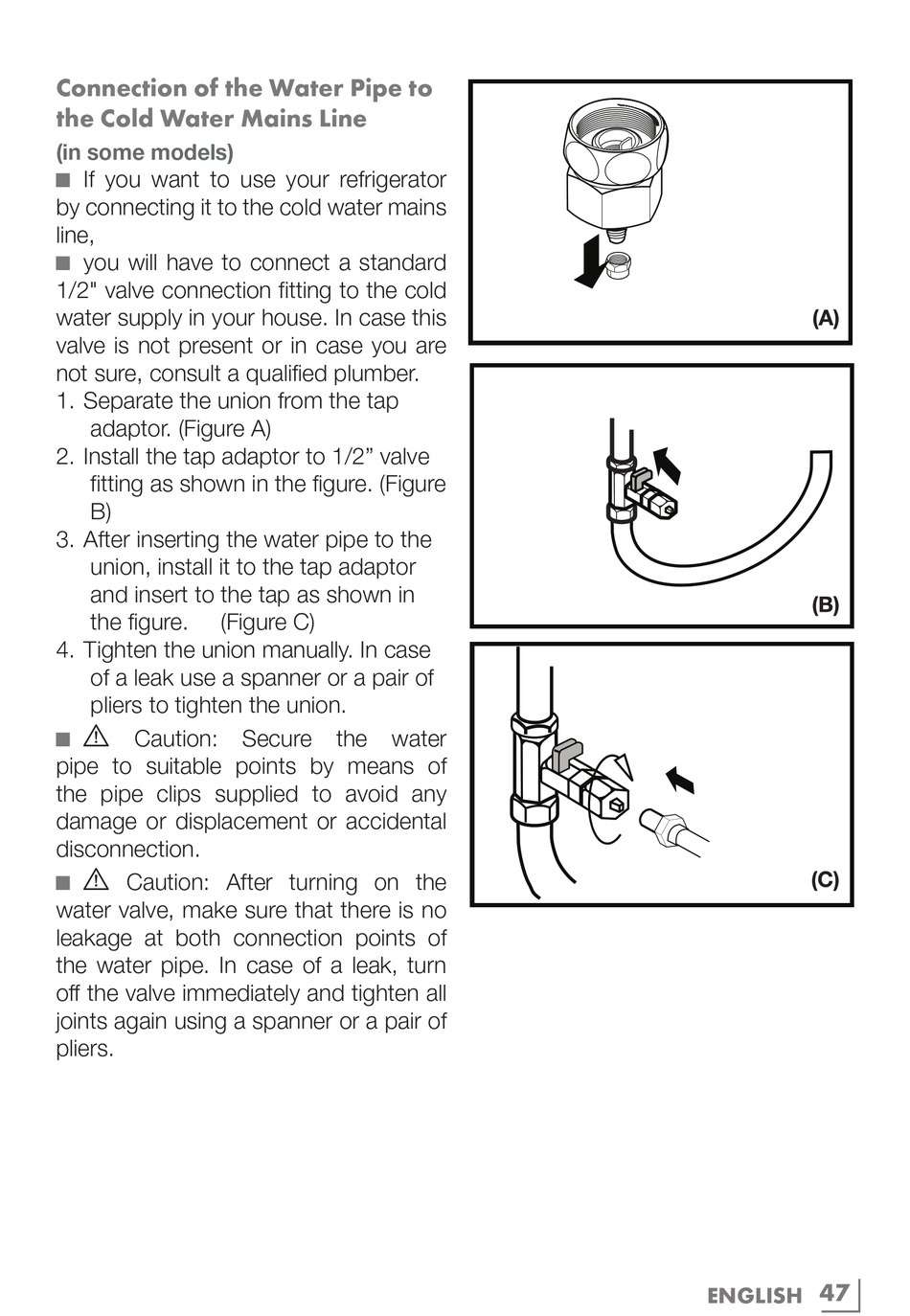

Connection of the Water Pipe to
the Cold Water Mains Line
(in some models)
If you want to use your refrigerator
■
by connecting it to the cold water mains
line,
you will have to connect a standard
■
1/2" valve connection fitting to the cold
water supply in your house. In case this
valve is not present or in case you are
not sure, consult a qualified plumber.
1. Separate the union from the tap
adaptor. (Figure A)
2. Install the tap adaptor to 1/2" valve
fitting as shown in the figure. (Figure
B)
3. After inserting the water pipe to the
union, install it to the tap adaptor
and insert to the tap as shown in
the figure. (Figure C)
4. Tighten the union manually. In case
of a leak use a spanner or a pair of
pliers to tighten the union.
A
Caution:
■
pipe to suitable points by means of
the pipe clips supplied to avoid any
damage or displacement or accidental
disconnection.
A
Caution: After turning on the
■
water valve, make sure that there is no
leakage at both connection points of
the water pipe. In case of a leak, turn
off the valve immediately and tighten all
joints again using a spanner or a pair of
pliers.
Secure the water
