3. Mounting options

3.2 Mounting on a mast

1
2
3
10

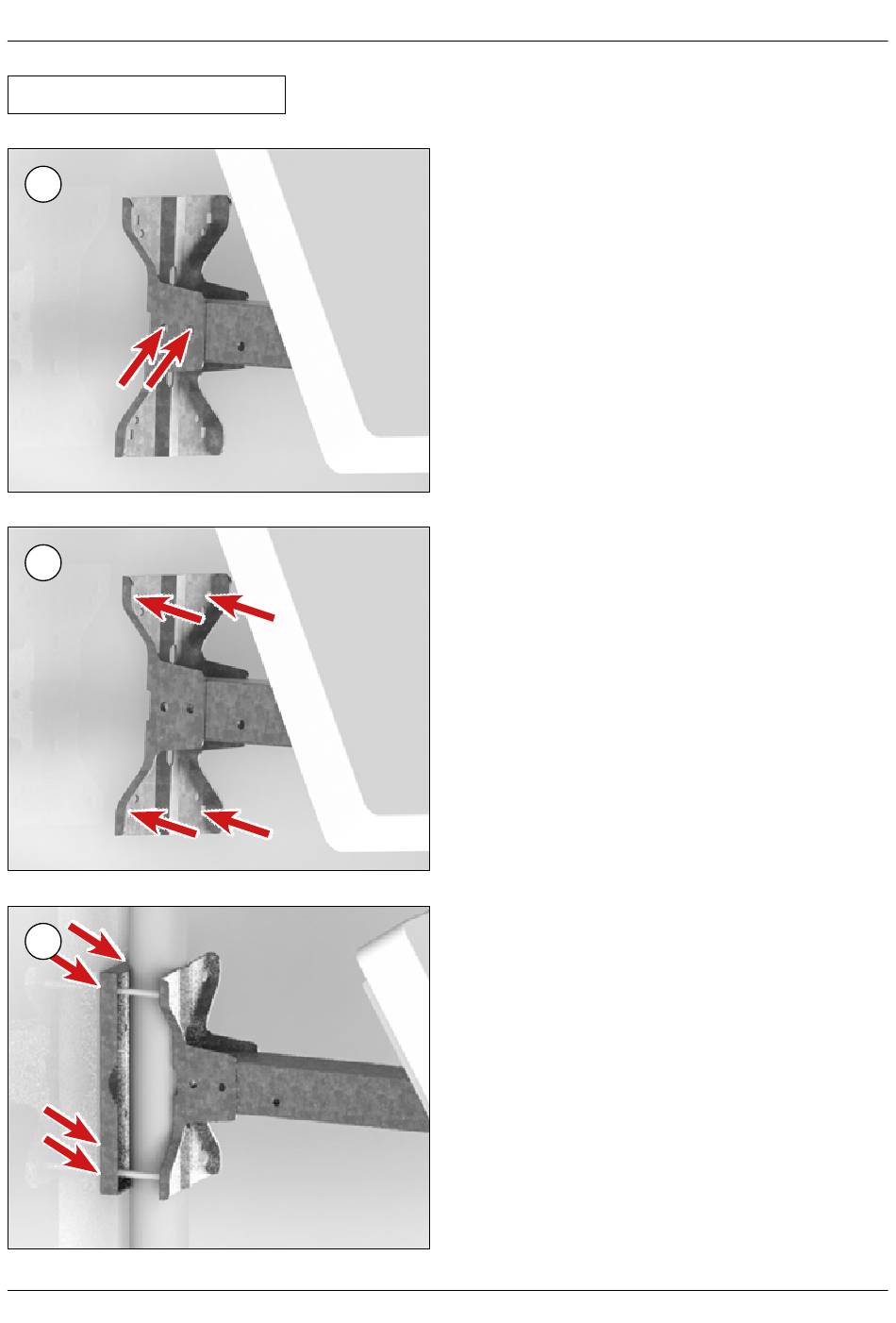

Mount the mounting plate A to the
mounting arm. To do this, insert the M6
x 55 mounting screws through the two
holes and fix them each with an M6 nut
on the opposite side.
Insert the four mounting screws M6 x
75 through the mounting plate A.
Insert the mounting plate A onto the
screws and fix them with the nuts M6.
