The LPG cylinder(s) must be upright when gas is being withdrawn.
Gas is withdrawn only from the gaseous phase.
The gas cylinder(s) must be secured so that it cannot topple over.
Protect gas cylinder(s) against radiant heat or heat from heating appliances.
Observe the installation regulations in the respective countries.

OPERATION

Cylinder replacement during operation
1. Always turn the rotary knob
2. Close the cylinder valve of the empty gas cylinder
2. Loosen the connections to the gas cylinder
4. Replace the empty cylinder with a full one and connect the full one.
The gas non-return valve prevents the gas flow from escaping through the free
connection during cylinder replacement.
5. Open the cylinder valve.
6. Check for leaks.
7. The full cylinder is available as a spare.

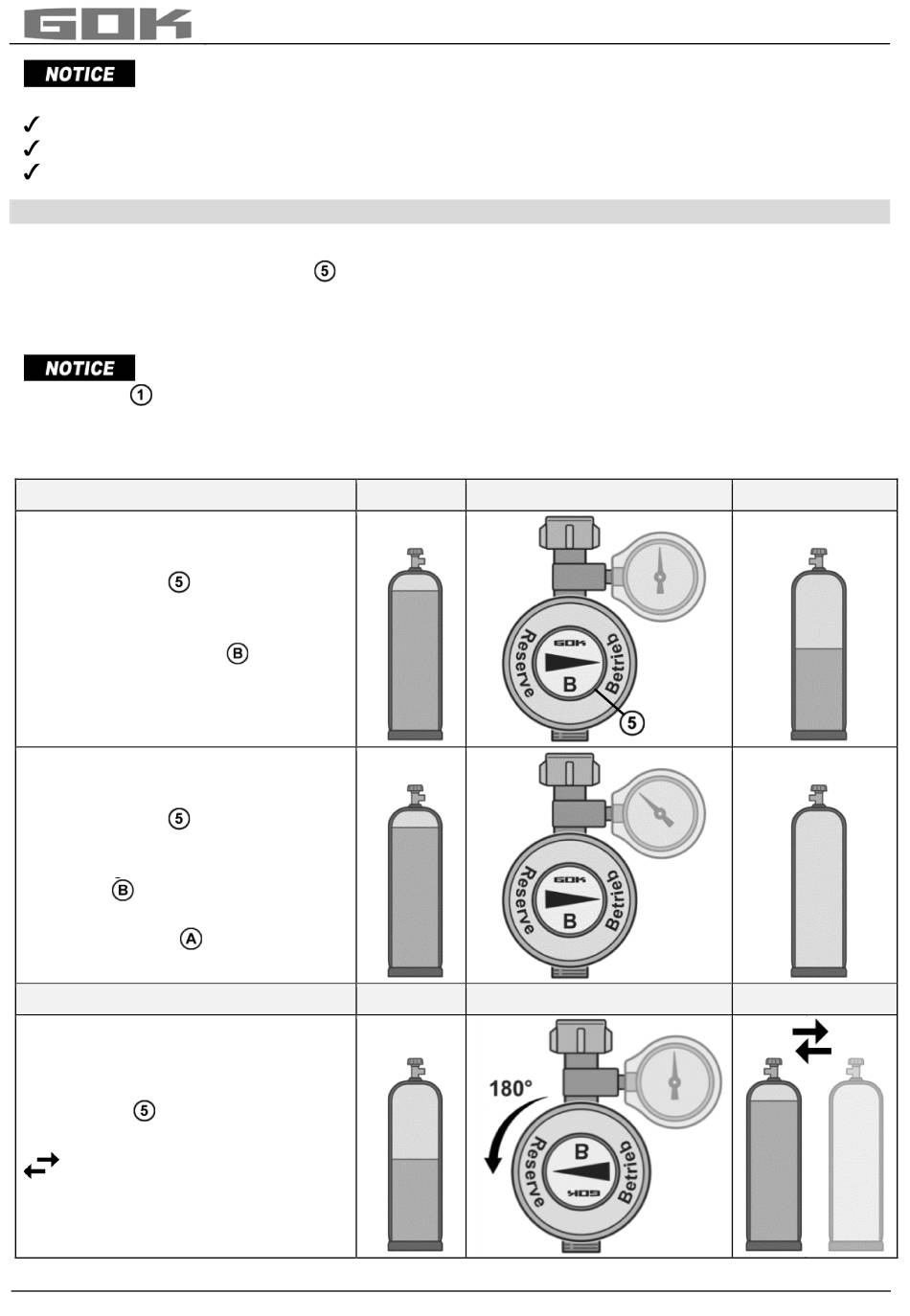

Type of withdrawal
Operation
Arrow for withdrawal direction on
the rotary knob
"Operation".
Gas is withdrawn from the
changeover regulator
cylinder.
Operating side is empty
Arrow for withdrawal direction on
the rotary knob
operating side.
Pressure gauge of the changeover
regulator shows "0".
Gas withdrawal now switches to the
central regulator
the automatic changeover valve.
Type of withdrawal
Switching to the reserve side
Manually turn the arrow indicating
the withdrawal direction on the
rotary knob to reserve.
Carry out the gas cylinder change.
Perform LEAK TESTING activities.
part no. 02 018 51c
as far as it will go to the reserve side.
points to
gas
points to empty
gas cylinder via
Operation
Reserve
Caramatic Basic Two
Use
Use
Operation
Reserve
9 / 12
