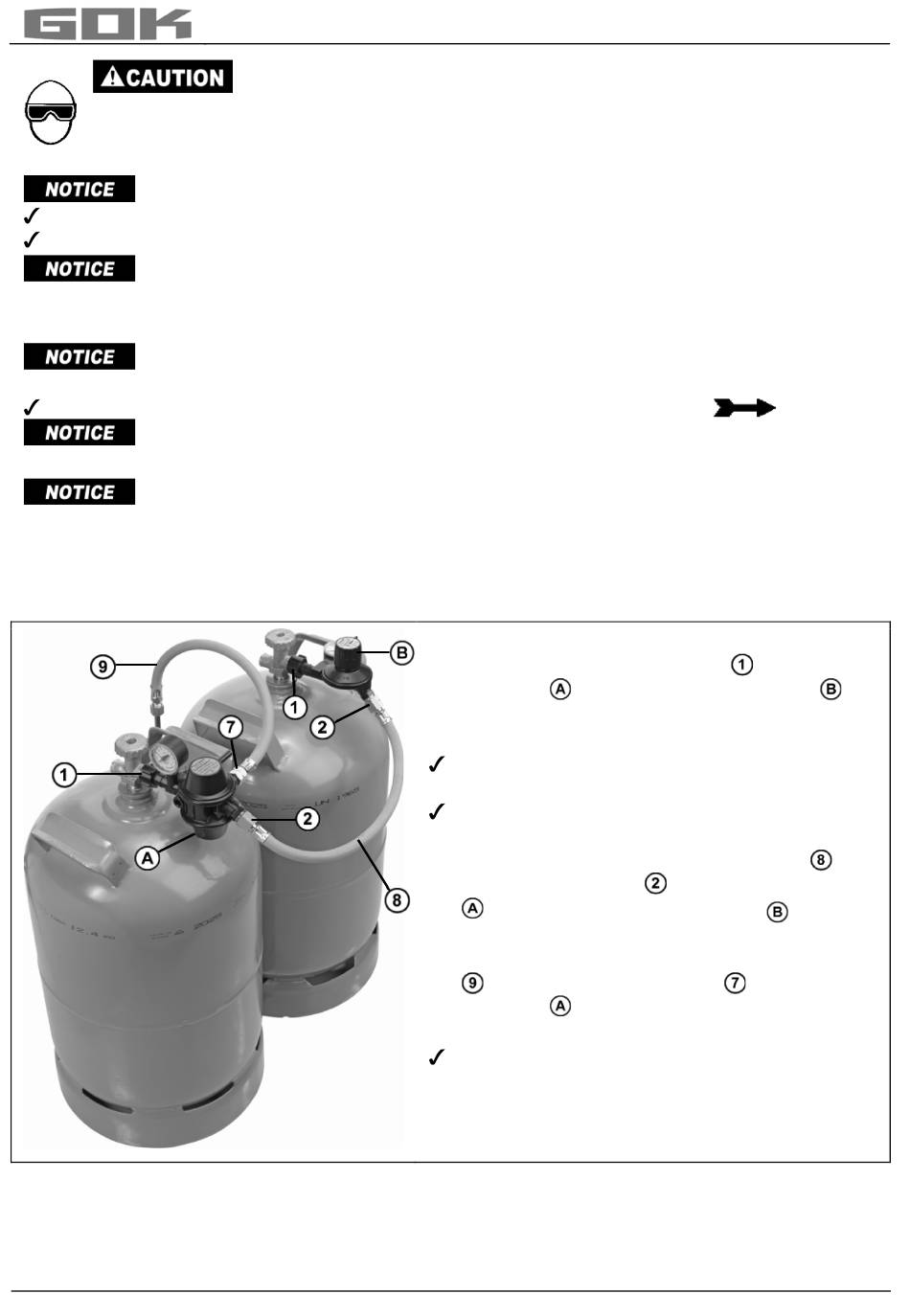

GOK Caramatic Basic Two Montage- Und Bediensungsanleitung Seite 19

Risk of injuries due to blown-out metal chips!
Metal chips may cause eye injuries.
Wear safety goggles!
Malfunctions caused by residues! Proper functioning is not guaranteed.
Visually check that there are no metal chips or other residues in the connections!
It is important that metal chips or other residues are blown out!
Install with suitable tools, if required.
Regarding screw connections, use a second spanner to brace against the connection nozzle.
Do not use unsuitable tools, such as pliers.
Product damaged through incorrect installation direction
Proper functioning is not guaranteed.
Observe the installation direction (marked on the product with an arrow
Consider installation location and installation position (see instructions on INTENDED USE).
If re-assembling, change the gaskets.
Make sure that the gaskets sit properly in the mounting and that the screws are tightened.
Application example:
Two-cylinder system Caramatic Basic Two for operation with small cylinders
part no. 02 018 51c
Installation steps
1. Connect the inlet connectors
regulator and changeover regulator
the gas cylinder valves in such a way that the
markings "A" or "B" face upwards, if possible.
Only connect by hand, do not use tools! (Left-
hand thread!).
Inlet connector gaskets (if provided) must be
placed correctly in the socket:
2. Screw the connection hose assembly
the connection port
and the changeover regulator
thread!).
3. Screw the medium pressure hose assembly
onto the outlet connector
regulator and piping of the system (left-
hand thread!).
Tighten the connections firmly.
4. Carry out a LEAK TESTING.
Caramatic Basic Two
).
of the central
of the central regulator
(left-hand
of the central
to
onto
7 / 12
