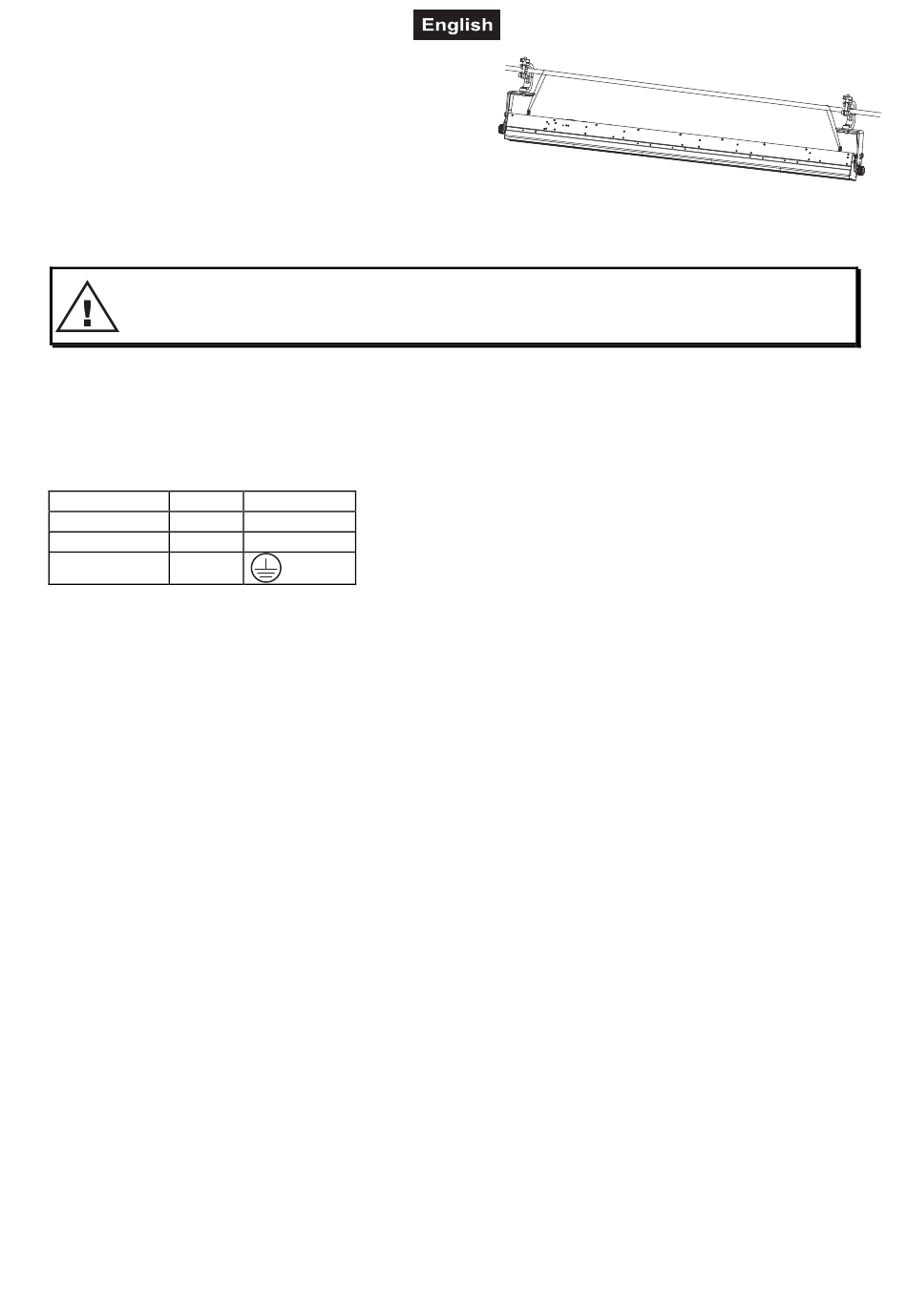

For overhead use, always install a safety-rope that can
hold at least 12 times the weight of the fixture. You must
only use safety-ropes with quick link with screw cap. Pull
the safety-rope through the attachment eyelet and over
the trussing system or a safe fixation spot. Insert the end
in the quick link and tighten the safety screw.
The maximum drop distance must never exceed 20 cm.
A safety rope which already held the strain of a crash or which is defective must not be used again.
Adjust the desired inclination-angle via the mounting-bracket and tighten the fixation screws.
Before taking into operation for the first time, the installation has to be approved by an expert!

Connection with the mains

Connect the device to the mains with the enclosed power supply cable.
The occupation of the connection-cables is as follows:
Cable Pin
Brown Live
Blue Neutral
Yellow/Green Earth
The earth has to be connected!
If the device will be directly connected with the local power supply network, a disconnection switch with a
minimum opening of 3 mm at every pole has to be included in the permanent electrical installation.
The device must only be connected with an electric installation carried out in compliance with the IEC-
standards. The electric installation must be equipped with a Residual Current Device (RCD) with a maximum
fault current of 30 mA.
Lighting effects must not be connected to dimming-packs.

OPERATION

Connect the effect to the mains and switch it on via the POWER-switch.
Attention: After every 2 POS-60 LED POWERSTICKs, the fixtures must have a renewed connection with
the power mains.

Stand Alone-operation

In the Stand Alone mode, the POS-60 LED POWERSTICK can be used without controller. You can do
without a controller as the features a built-in microphone, which provides automatic sound control.
Disconnect the FUTURELIGHT POS-60 LED POWERSTICK from the controller and set DIP-switch 10 to ON
and DIP-switch 11 to OFF to select Stand Alone sound control mode.

Master/Slave-operation

The master/slave-operation enables that several devices can be synchronized and controlled by one master-
device.
On the rear panel of the POS-60 LED POWERSTICK you can find an XLR-jack (DMX Out) and an XLR-plug
(DMX In), which can be used for connecting several devices.
Choose the device which is to control the effects. This device then works as master-device and controls all
other slave-devices, which are to be connected to the master-device via a balanced microphone lead.
Connect the DMX OUT-jack with the DMX IN-plug of the next device.
Set the DIP-switch, as listed in table 1, for the master-device. When the unit is running in Master/Slave
mode, all slave-devices must be set to DMX address 001, and DIP-switches 11 and 12 have to be set to
OFF.

DANGER TO LIFE!

International
L
N
