Addressing

Depending on the DMX-mode (see table 4), each device of the POS-60 LED POWERSTICK occupies 63,
60, 15 or 6 DMX-channels. If you select program "R ,G, B control per group" for example, the device
occupies 6 DMX-channels. To ensure that the control signals are properly directed to each device, it requires
adressing. This is to be done for every single device by changing the DIP-switches as set out in this table.
The starting address is defined as the first channel from which the POS-60 LED POWERSTICK will respond
to the controller.
Please make sure that you don't have any overlapping channels in order to control each POS-60 LED
POWERSTICK correctly and independently from any other fixture on the DMX data link. If two, three or more
POS-60 LED POWERSTICKs are addressed similarly, they will work similarly.

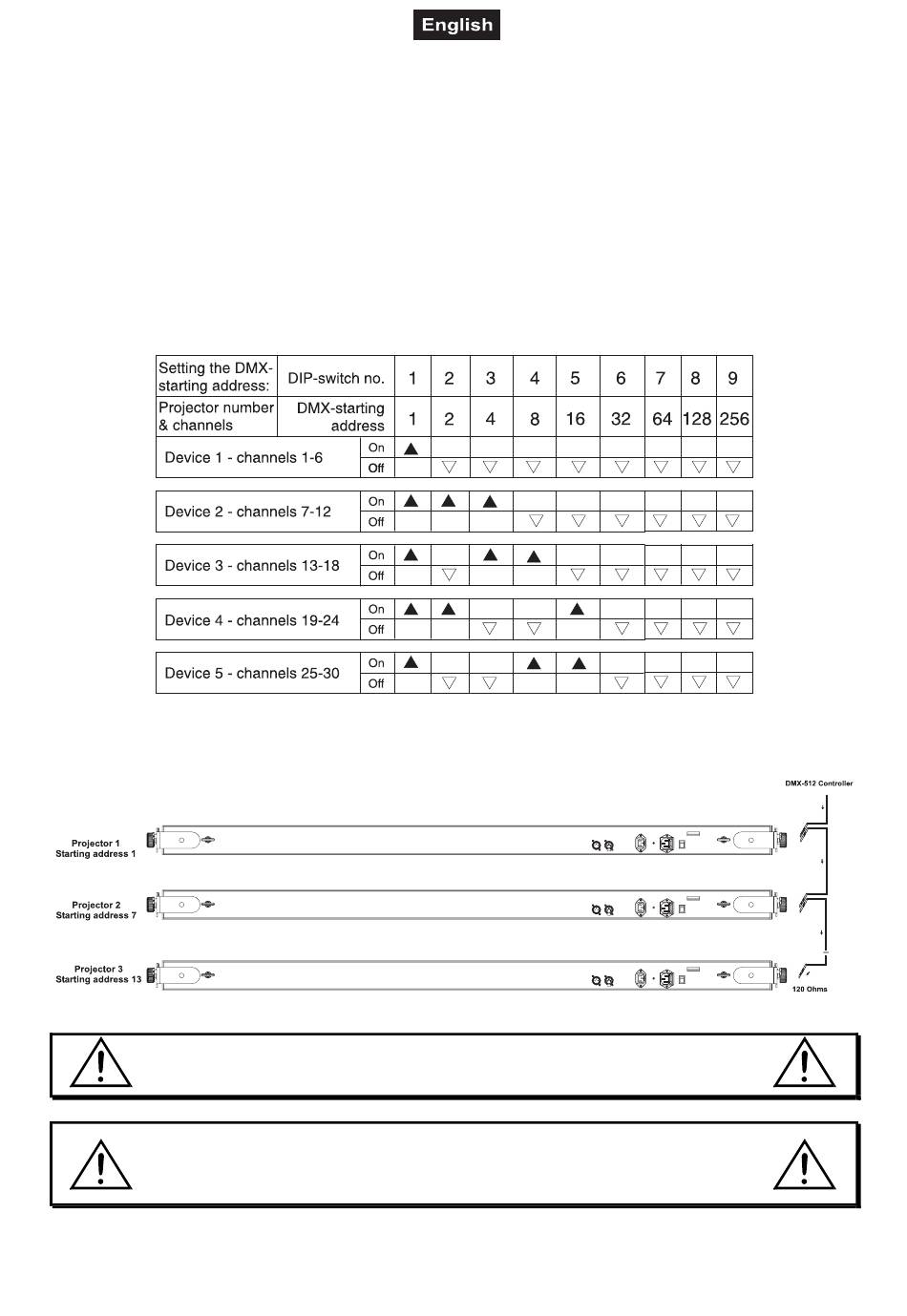

Occupation des interrupteurs DIP:

DMX-512 connection / connection between fixtures

The wires must not come into contact with each other, otherwise
the fixtures will not work at all, or will not work properly.
Please note, the starting address depends upon which controller is being used.
