3. Layout, Connections & Jumper Settings
3.2 Connections
USB 2.0 B-Port:

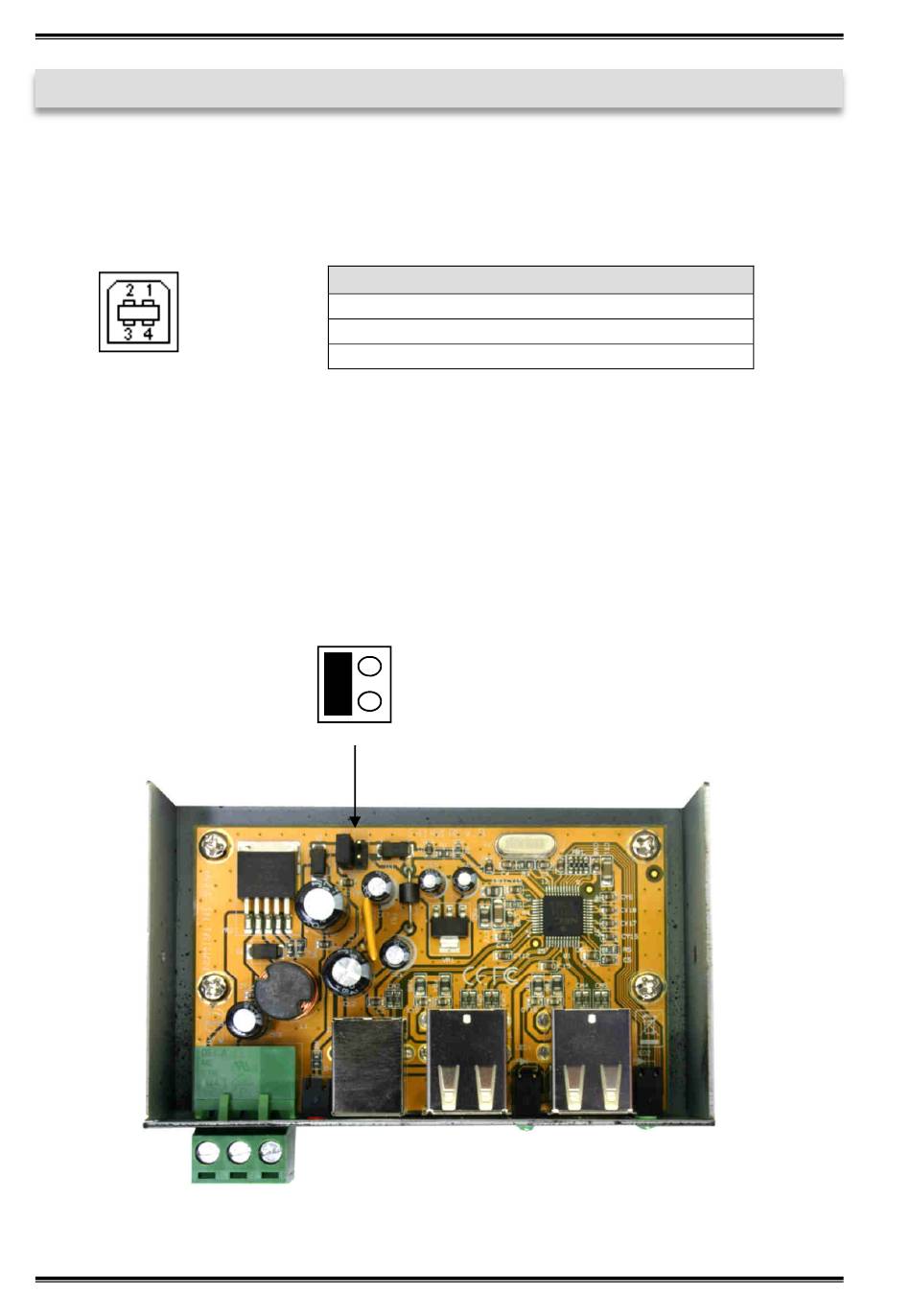

3.3 Jumper Settings

The EX-1163HM will be delivered with the setting Self-Power. You also have the pos-
sibility the EX-1163HM to supply with Bus-Power. For this you open the case with the
two screws on both sides. Then you must set the jumper JP1 from T (Terminal Block)
to U (USB). See the following picture.
© Copyright 2018 by EXSYS Vertriebs GmbH. All Rights Reserved
USB 2.0 B-Port
Pin Signal
1 VCC
2 DATA-
T U
JP1
10
EX-1163HM
Pin Signal
3 DATA+
4 GND
