EX-1348HMV

4. Jumper-Settings

There are 24 jumper at the inside of the EX-1348HMV. Of thes, 8 jumper are for the
mode (JP1-JP8), 8 jumper (JP9-JP16) are for setting the power on 9 pin at the DB9
connector and the other 8 jumper are for termination (JP17-JP24) (see picture below).
To change the jumper position, you must open the cover on the bottom of the EX-
1348HMV with 2 screws. The jumper are numbered and so you can see which jumper is
for which port. The following tables on page 8 and 9, you can see the setting of the mo-
de jumper, termination jumper and power on 9 pin jumper or in the inner side of the co-
ver.

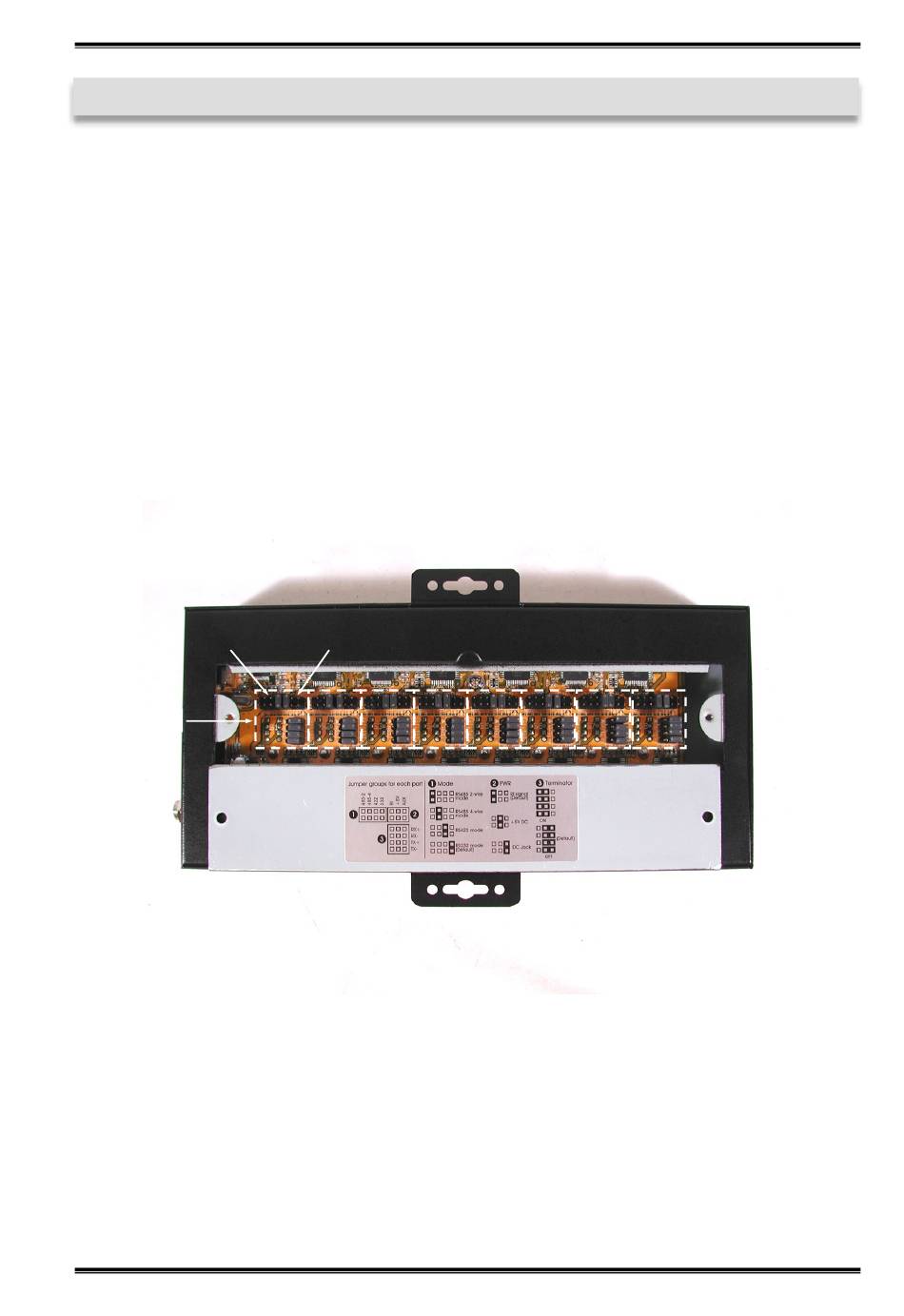

Bottom:
Mode
Termination
9 Pin Power
Port 1 2 3
7
4 5 6
19
English
8
