3. Layout, Connections & Jumper Settings

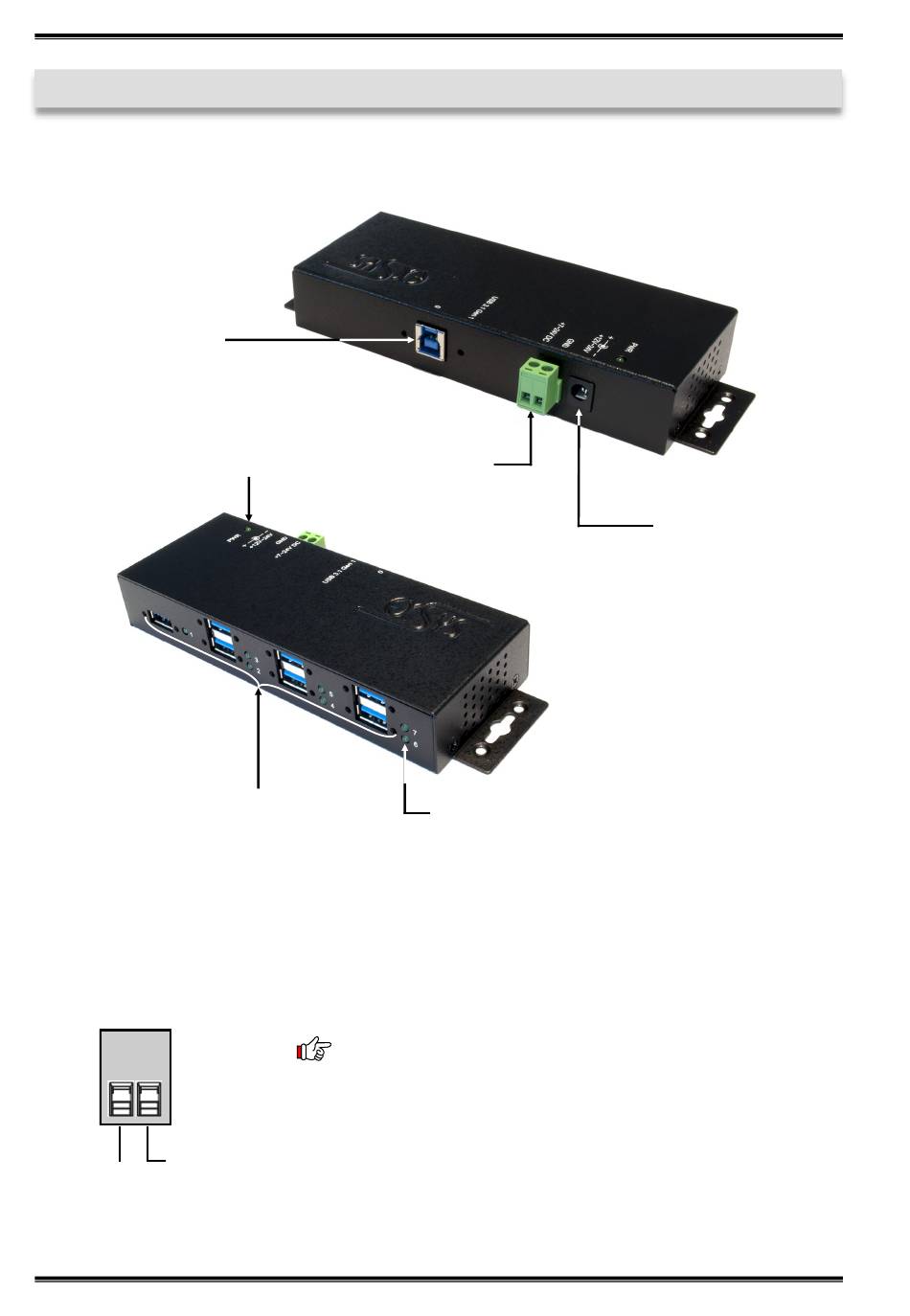

3.1 Layout

1x USB 3.2 (Gen1)
Upstream B-Port
Power LED
7x USB 3.2 (Gen1)
Downstream A-Port
3.2 Connections
+7V - 24V T-Block:
GND (Ground)
+7V - 24V
© Copyright 2020 by EXSYS Vertriebs GmbH. All Rights Reserved
7-24V T-Block
for optional external
Power Supply
Status LED
for each Port
ATTENTION!!!
Never connect power to GND, it will destroy
your Hardware!!!
10
EX-1189HMVS-3
12-24V Connector
for included external
Power Supply
