CONNECTION OF CABLES AND SENSORS
Introduce the cables into the controller through the opening in the lower side or through the
bottom of the controller. First connect all zero conductors, then all earthing conductors and in
the end the inlet conductor and all relay outputs from the left side to the right side.

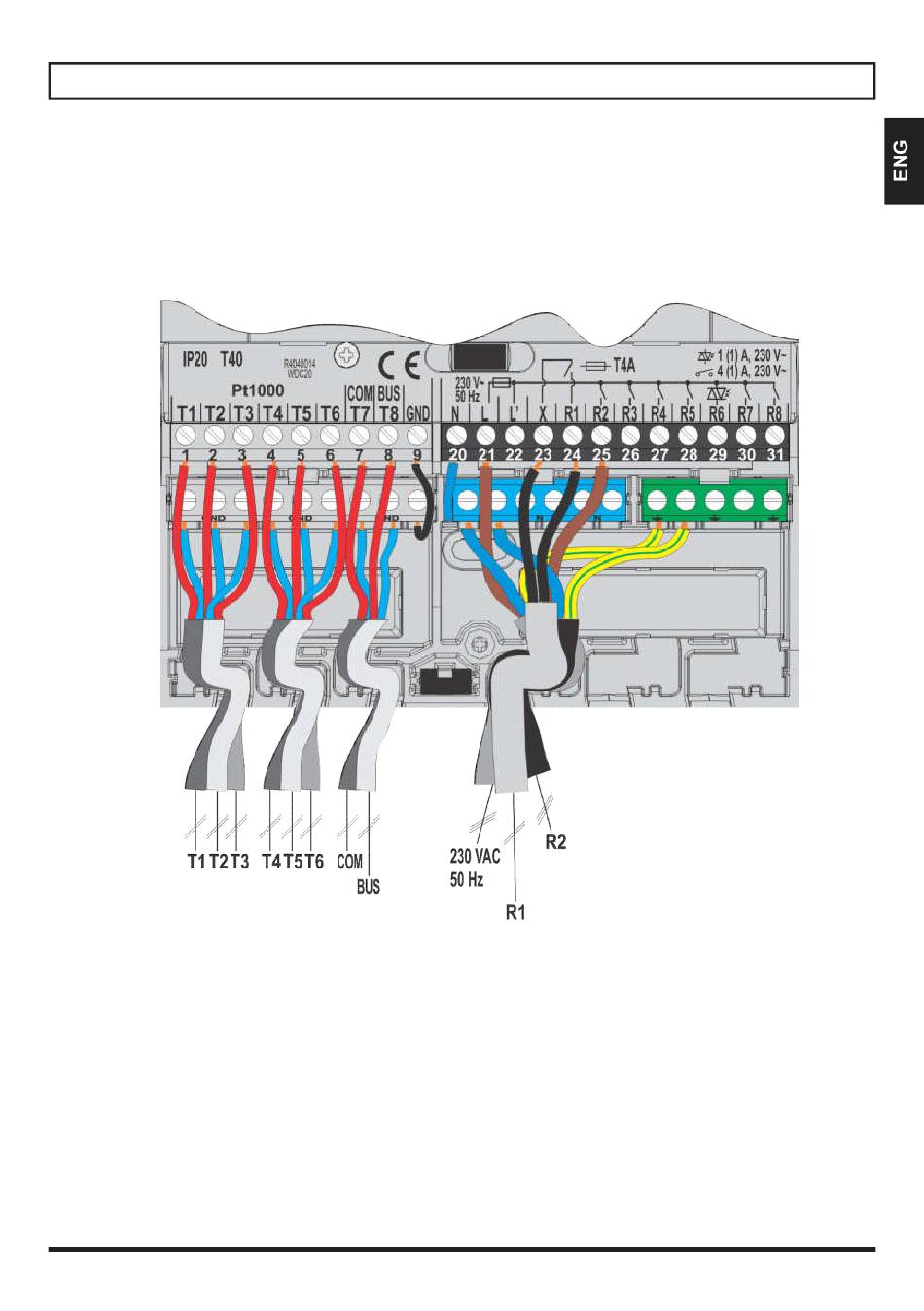

Arrange the cables in the following manner: FIRST FEEDTHROUGH - power supply, relay
R1, relay R2; SECOND FEEDTHROUGH - relay R3, relay R4, relay R5; ...
Arrange the sensor cables in the following manner: FIRST FEEDTHROUGH - T1, T2, T3;
SECOND FEEDTHROUGH - T4, T5, T6; ...
