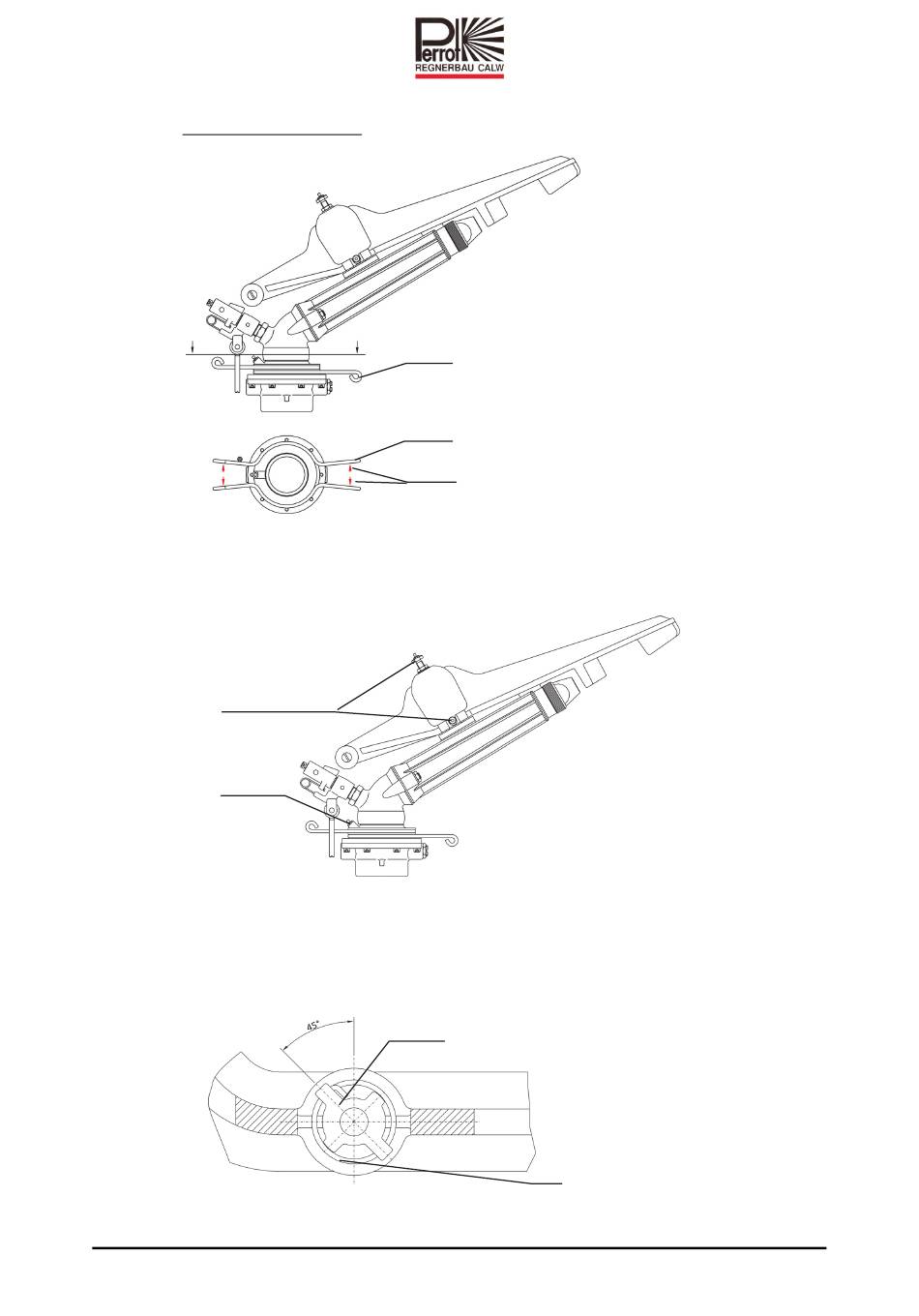

c.) Setting the part circle angle
Infinitely variable by pulling (not pressing) the relevant end of the upper or lower spring stop.
6. Maintenance
6.1 Lubrication
Lubrication points
Impact lever
Bearing
The lubrication points at the impact lever should be lubricated with little quantities of grease.
The lubrication point at the bearing should be lubricated once a year. The grease may be pressed in
only at a very low pressure, in order not to damage the cover of the ball bearing.
6.2 Fitting a spring bearing with torsion spring
a)
Set torsion spring bearing acc. to sketch with an angle of 45 degree.
TDP002d‐e‐f.doc
Perrot REGNERBAU CALW GmbH Industriestraße 19‐29 / D‐75382 Althengstett / Germany
Telefon : 0049‐7051‐162‐0 / Fax : 0049‐7051‐162–133
E‐mail: p errot@perrot.de / E‐mail Konstruktion : technik@perrot.de
String stop
String stop
Pull the spring stop here
Spring bearing
Torsion spring
