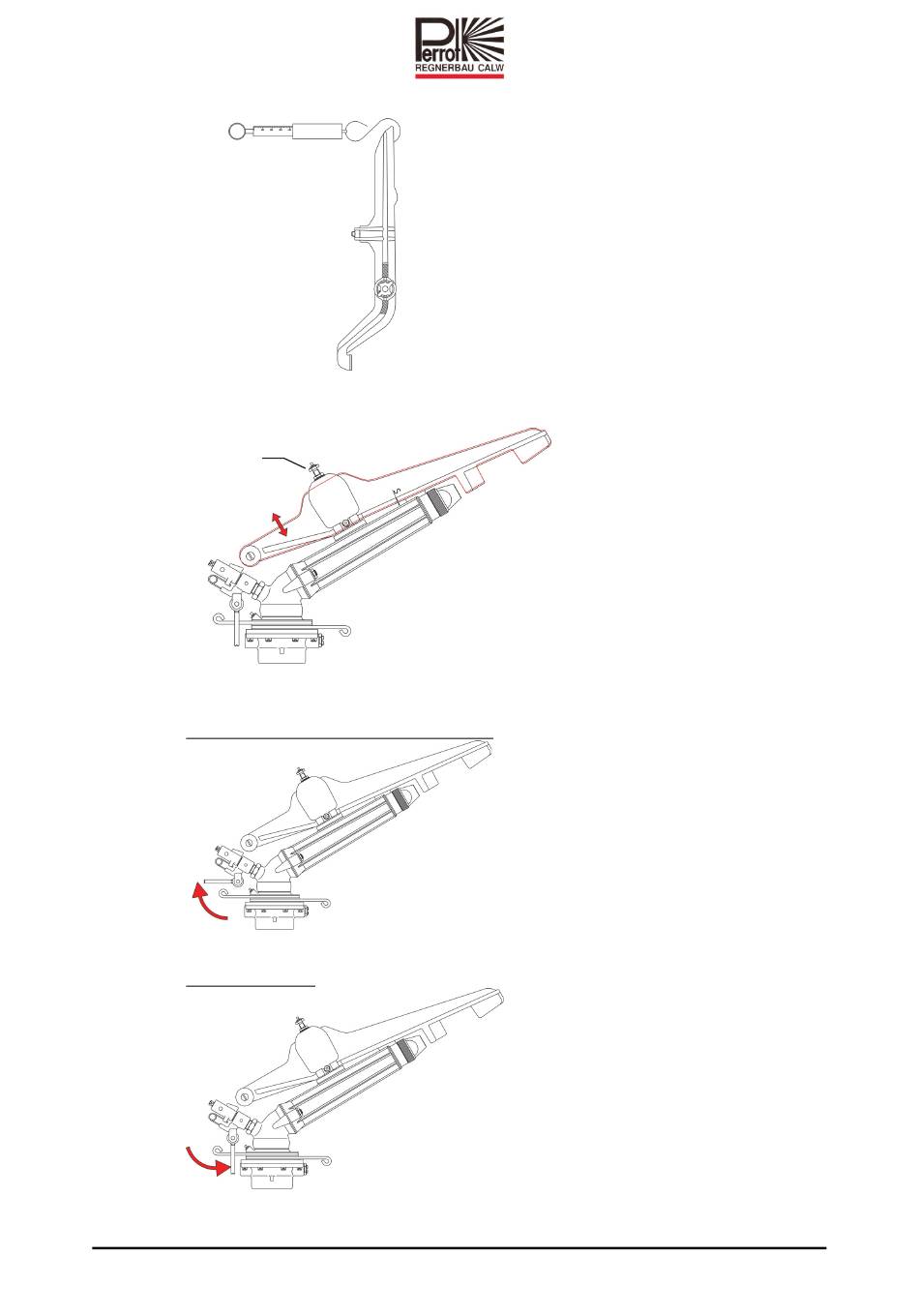

5.3 Tension of the torsion spring
5.4 Setting the axial play of the impact lever
Tighten the adjusting screw to such an extent, that the impact lever has an axial play (s) of 2‐3mm
Adjusting screw
Axial play
5.5 Setting the part circle angle
a) Full circle movement with a part circle sprinkler
Flip‐up the pin to a horizontal position
b.) Part circle irrigation
Place the trip pin in a vertical position.
TDP002d‐e‐f.doc
Perrot REGNERBAU CALW GmbH Industriestraße 19‐29 / D‐75382 Althengstett / Germany
Telefon : 0049‐7051‐162‐0 / Fax : 0049‐7051‐162–133
E‐mail: p errot@perrot.de / E‐mail Konstruktion : technik@perrot.de
The torsion spring is set at a tension of 410‐
440 gr. in the factory. This tension is
measured at the front end of the impact
lever, and must under no circumstances be
exceeded. If necessary, tighten the spring by
enlarging the hook at the lower part of the
impact lever bearing (see sketch under point
6.2.b).
