1

Commissioning

1.1

Mounting

The DECT Box is designed for wall mounting in interior rooms.
Please note that the device must not be fitted in the immediate vicinity of
any other electronic devices such as hifi systems, office machines or mi-
crowave ovens. This prevents any interference between the devices. In
addition, the device should not be installed near heat sources (e.g. radia-
tors or in direct sunlight). To prevent noise interference when making calls,
the connected terminal should not be positioned closer than one metre
away from the DECT Box.
The DECT Box must be able to establish a radio link to the DECT base
station. Before determining the final mounting position, you should
therefore check that your desired location is within the range of the
DECT base station.
Owing to the digital transmission in the frequency range used, there
may be radiowave "blind spots" even within the specified range, depen-
ding on the nature of the building. This results in a loss of transmission
quality. However, just a small change in position will restore normal
transmission quality. As the DECT Box works as a cordless unit on your
DECT base station, you can use your cordless handset to check
whether or not the mounting position is suitable.
Follow the steps given below to install the DECT Box

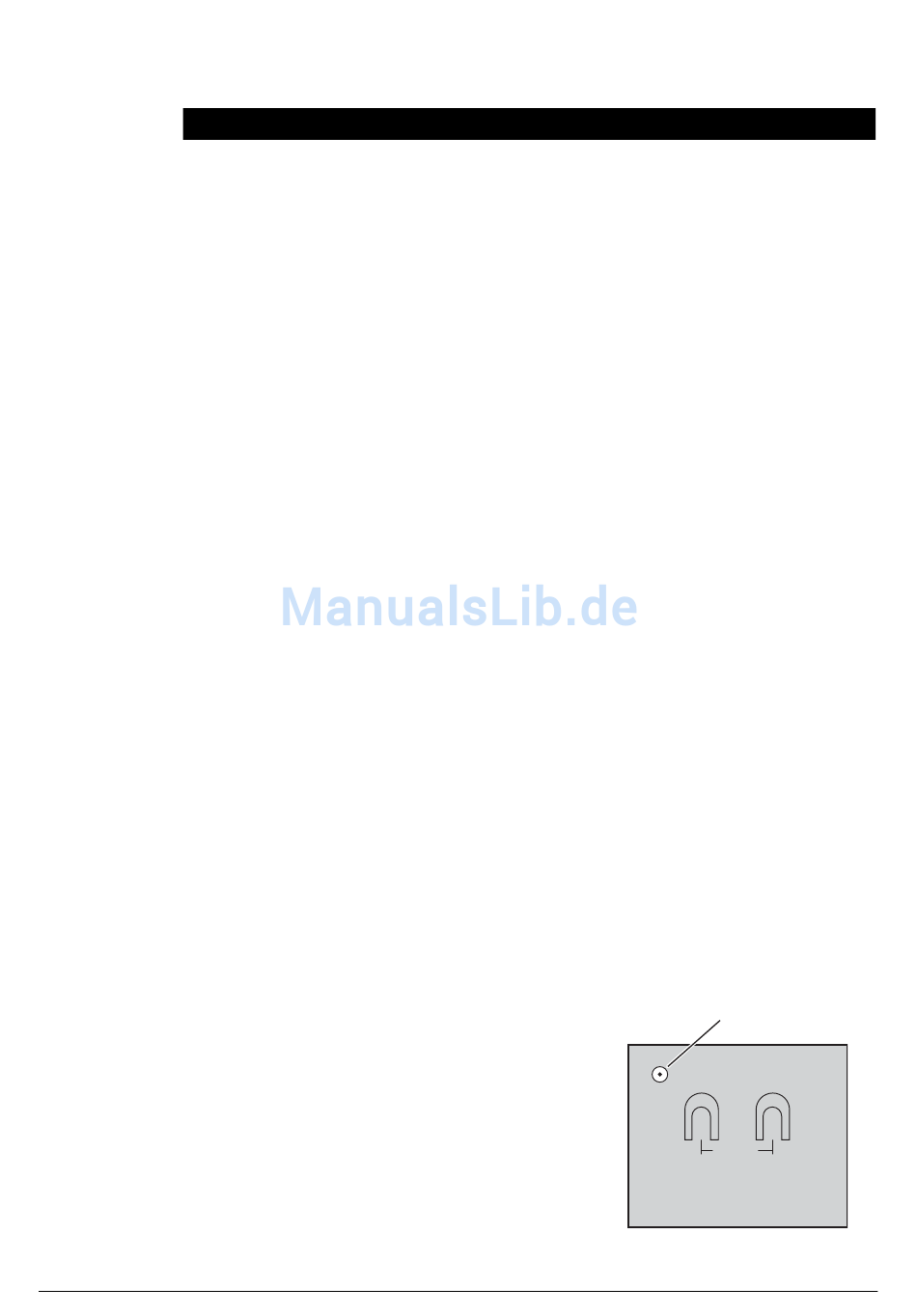

1. Drill two 6 mm diameter holes into the wall at a distance of
60 mm apart.
2. Insert the rawl plug and turn the screws until they are approx.
5 mm away from the wall.
3. Connect the external aerial to the appro-
priate socket (DECT Box 5000 only).
4. Connect your terminal to the DECT Box.
5. 5. Connect the DECT Box to the power
supply.
6. Fit the DECT Box in place.
5
Antenna plug
(easyBOX 5000 only)
60 mm
