Connecting-up
NOTE
7-4
PMU
X300
X108
X101
Mount.pos. 1 (CUMC)
S1
X103
Encoder card in slot C
S2
Mounting position 3
Mounting position 2
Aux. contactor, external
DC24 V-supply X9
Shield connection
for control cables
Terminals for setting
the fan voltage

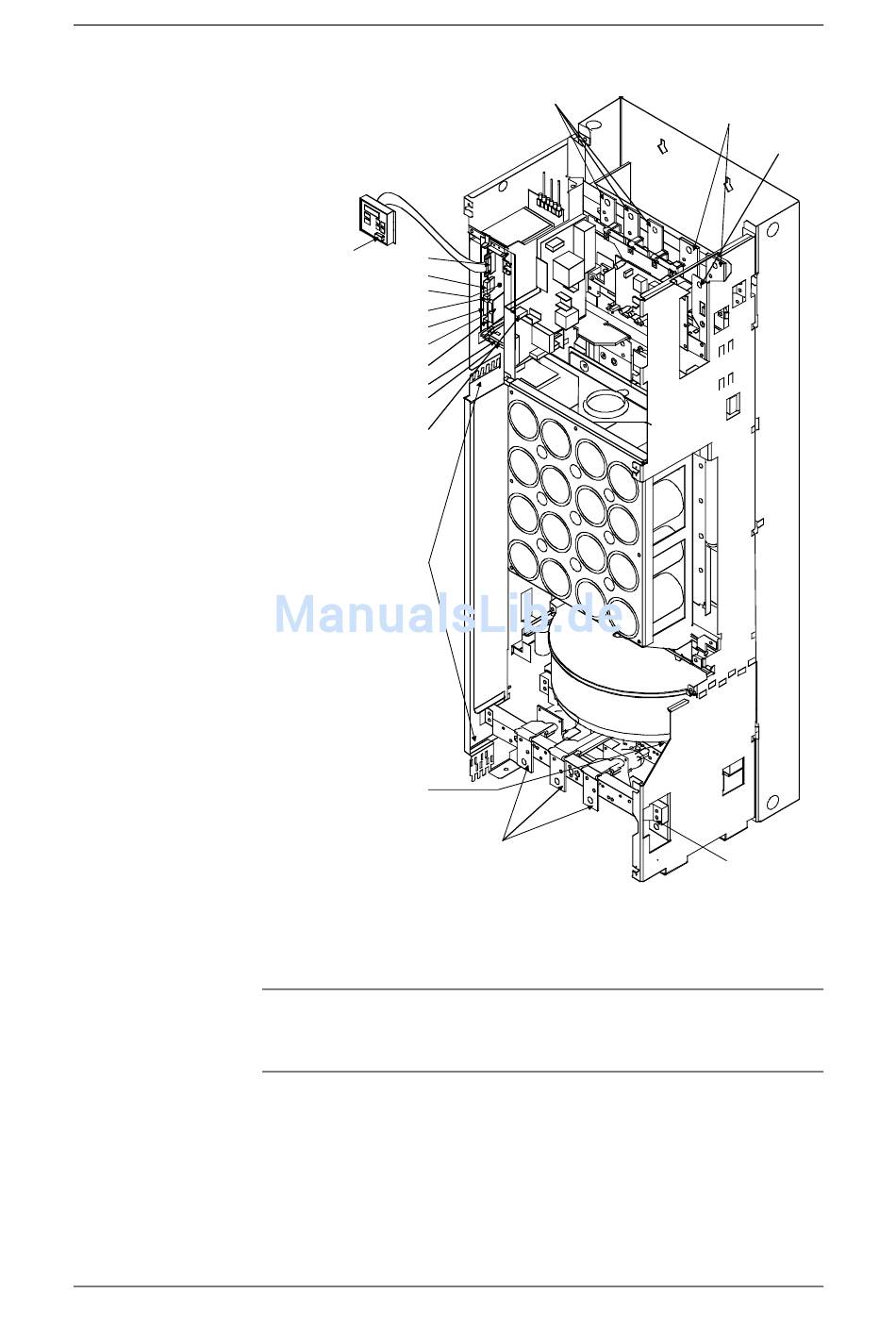

Fig. 7-2 Connection overview for type G
Due to the 230 V fan a transformer is integrated into the converters.
The terminals on the primary side of the transformer may have to be
reconnected corresponding to the line voltage.
Mains connection
Motor connection
Operating Instructions
08.2008
DC link
connection
PE1 / GND
PE2 / GND
6SE7087-6JK50 Siemens AG
SIMOVERT MASTERDRIVES
