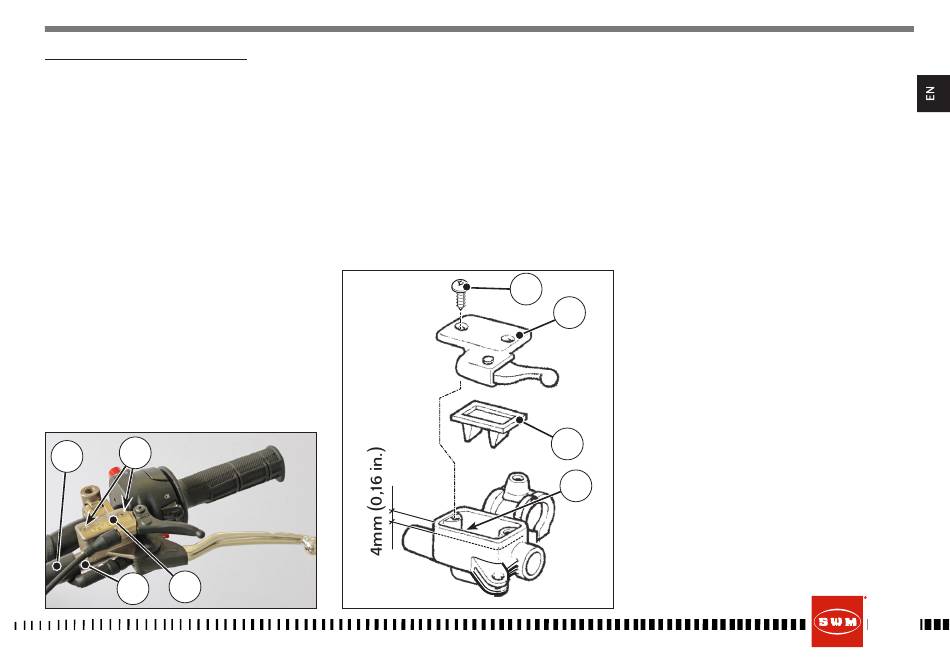

HYDRAULIC CLUTCH FLUID LEVEL CHECK
To check the fluid level, proceed as follows:
- remove screws (1), cover (2) and rubber (3) pump
diaphragm on the handlebar clutch control;
- by keeping the master cylinder (4) in horizontal
position, check the fluid level is NOT BELOW 4 mm
(0.16 in.) from the upper surface (D) of the pump
body;
- if necessary, add fluid until the correct level is
reached see TABLE FOR LUBRICATION-SUPPLIES
for the fluid type.
CAUTION*: NEVER use brake fluid.
Reassembly the removed parts using the reverse
procedure.
1
C
2
4
Periodically check the connecting hose (see "Periodi-
cal maintenance card"): if the hose (C) show is bent
or cracked, its replacement is advised.
1
2
3
D
