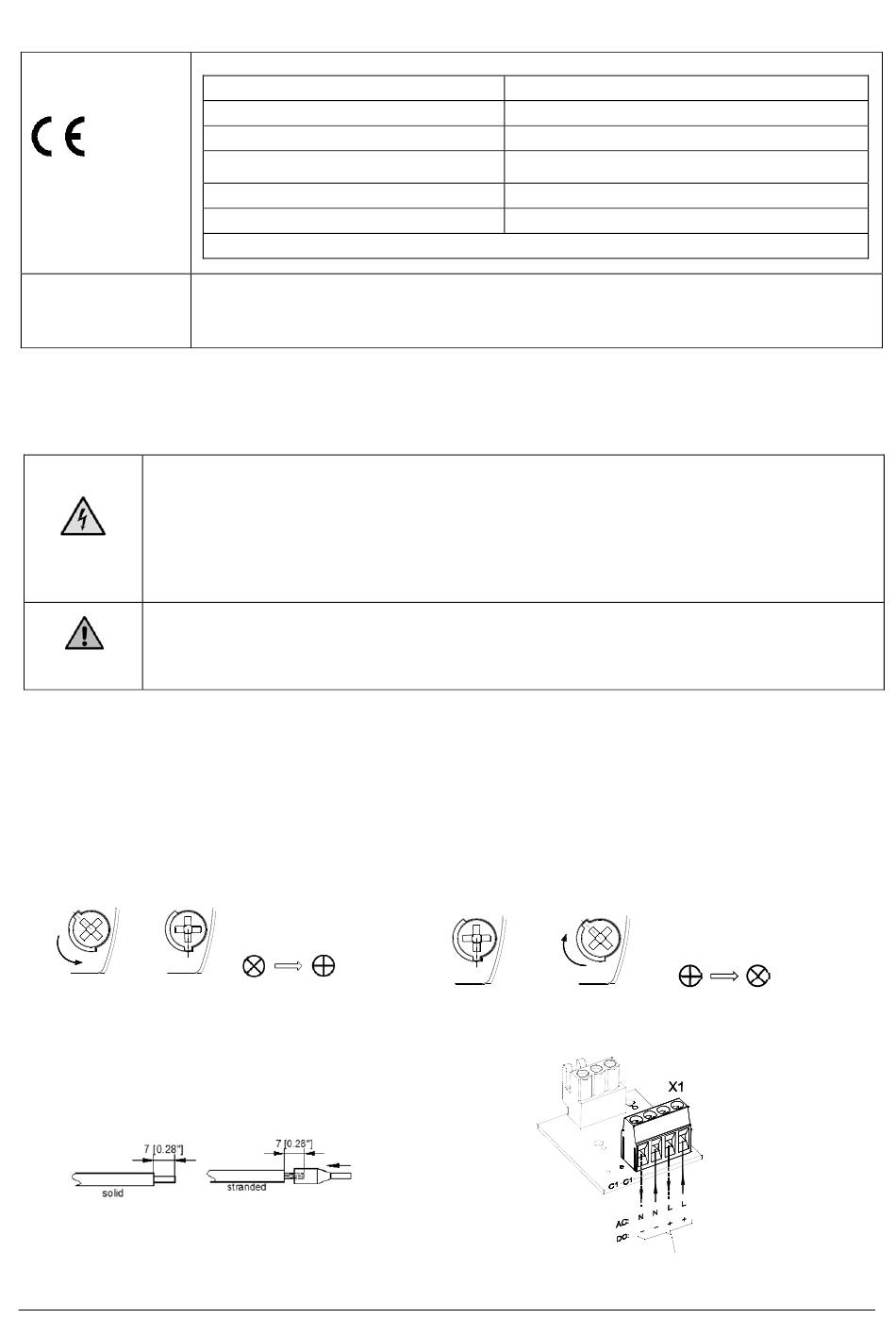

Taking Into Operation; Electrical Connection - Pfannenberg PY X-L-15-CPR Betriebs- Und Montageanleitung

Approvals
(valid for marked equipment)
Construction Product
Regulation
(305/2011/EC)
17
VdS
PYRA Xenon beacons PY X-L-15 comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

Taking into Operation

Safety notes:
Life-threatening danger due to electric shock
- Before all work on the equipment, the following should be observed:
Switch off the power supply before opening.
- Wait 5 minutes before opening the housing
DANGER
- All work on the equipment is only to be carried out by authorised technical personnel in accordance
with all applicable regulations.
- The operating voltage may only be applied if the housing is tightly closed.
Danger of injury due to sharp edges or heated components
- It is recommended to wear gloves during installation, assembly, or service / maintenance work.
- In order to prevent detriment to sight, continuously looking directly in the activated light is to be
CAUTION
avoided.
- Before electrical connection, the supply voltage on the type plate is to be checked. The wrong operating voltage can lead to
damages or to the destruction of the equipment.
- During installation it must be ensured that the connection cables are secured against tension and distortion.
Please observe: The devices are not designed for portable use.
- CAUTION: When making installation, route field wiring away from sharp projections, corners and internal components.
- The function of the unit is only guaranteed if the upper and lower section is joined correctly.
- The device is provided with a reverse polarity protection. No function when polarity is reversed!
Opening the housing
1. 2.
3/8
The unit is not closed when delivered. Sealing plugs for the housing screws are available as accessories.

Electrical connection:

(PCB in base part)
All terminals are duplicated. This allows for simple through branch wiring.
Connecting cables
085 501 996d
PY X-L-15-CPR: VdS 0786-CPR-21563
Rated voltage
Operating voltage range acc. to EN54-23
Lens colours
Signalling area
Environmental protection class
Installation position
Testing takes place using the supplied diaphragm nipple and the outer fastening bores.
PY X-L-15-CPR: G217100, Data see Construction Product Regulation (305/2011/EU). Lens color: red, clear.
PY X-L-15-CPR: G218006, Data see Construction Product Regulation (305/2011/EU).
Lens colours: White, yellow, amber, green, blue. These lens colors are not certified according to EN54-23 and
are not to be used for alerting in case of fire.
By loosening the four cover
screws, the upper section
can be removed.
( )
red, clear / 0,5 Hz,
see document 30396-005-1
see document 30396-005-1
Closing the housing
1. 2.
3/8
5
24V DC
19.2 – 28.8 V DC
0,75 Hz, 1 Hz
EN 54-23 Category O:
Type B
The housing is closed by
turning the cover screws to
the limit position until the
housing locks into place.
( )
Connection for
operation voltage
30396-004-2d
