Technical Data - Pfannenberg PY X-L-15-CPR Betriebs- Und Montageanleitung

Operating and installation instruction for PY X-L-15-CPR beacon

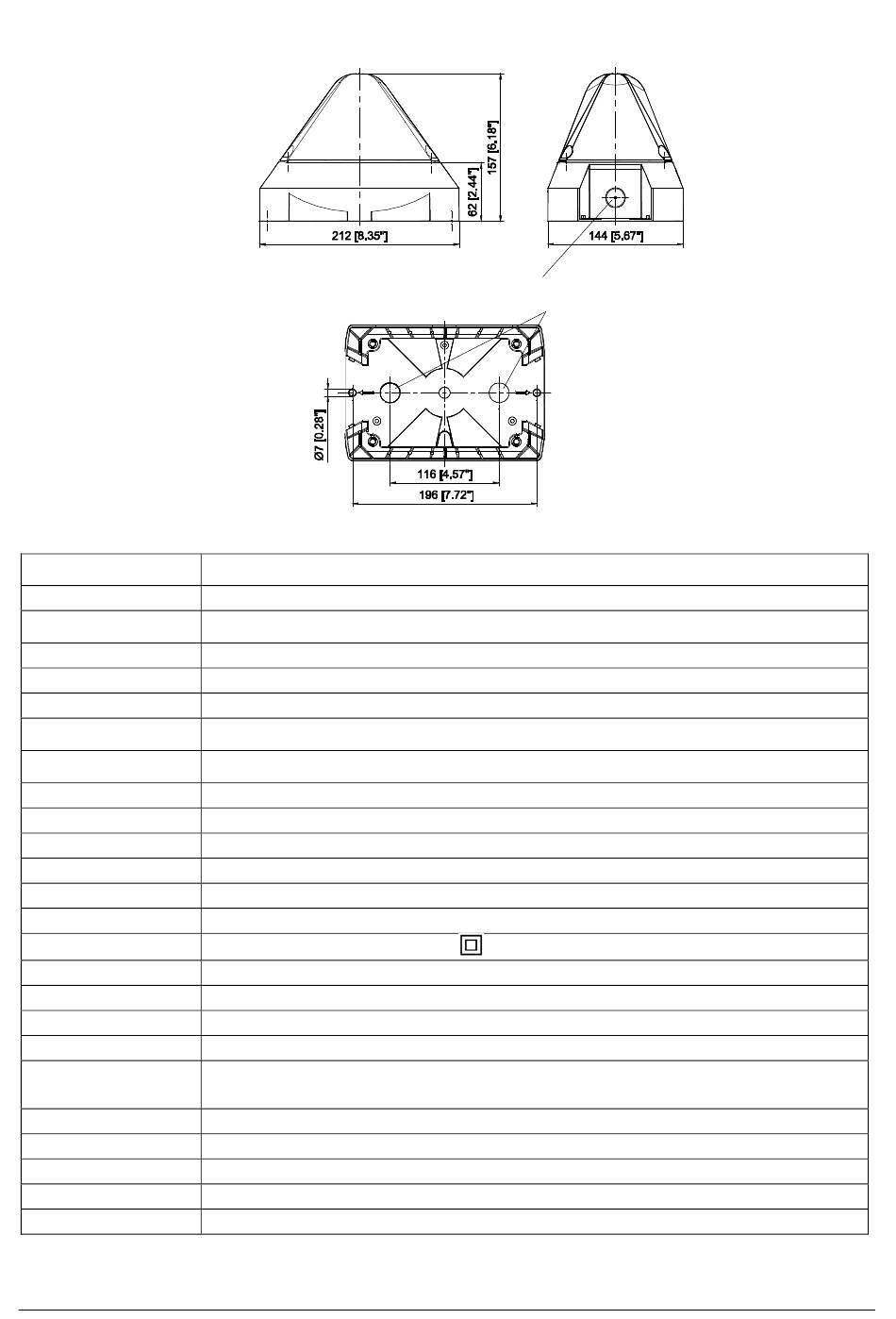

Dimensions
Content of package:
1x Alarm device
1x Diaphragm nipple M20
1x Operating instruction
1x Resistor for line monitoring

Technical Data

Flash energy
Rated effective luminous
intensity
Flash frequency
Rated voltage
Operating voltage range
Current consumption max.
(1 Hz)
Current consumption nom.
(1 Hz)
Starting current
Nom. Power consumption
Duty cycle
Connection terminal
Protection system
Resistance against impact
Protection class
Operating temperature
Storage temperature
Max. rel. Humidity
Cable entry
Sealing range of
diaphragm nipple
Material of housing
Material of lens
Installation position
Option
Lens colours
085 501 996d
Prepared M20 piercing (both sides)
0.14 – 2.5mm² / AWG24 - AWG 14 (stranded)
II
With the use of cable diameters <7 mm, a cable screw joint with sufficient ingress protection
clear, white, yellow, amber, red, green, blue
Prepared M20 piercing
PY X-L-15
15 J
190 cd (clear)
0,1 / 0,5 / 0,75 / 1 Hz
24 V DC (+/- 20%)
19.2 – 28.8 V DC
890 mA
700 mA
< 500 mA
17 W
100%
IP66 (EN60529), Type 4 & 4x
IK 08 (EN50102)
Double insulated equipment
-40 °C...+55 °C
-40 °C...+70 °C
90%
4x M20 (prepared)
7 – 13 mm
must be provided
PC/ABS Blend
PC
arbitrary
Control input
