Taking Into Operation; Electrical Connection - Pfannenberg PY X-L-15-CPR Betriebs- Und Montageanleitung

Approvals
(valid for marked equipment)
Construction Product
Regulation (305/2011/EC )
In preparation
17
VdS
In preparation
PYRA Xenon beacons PY X-L-15 comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.

Taking into Operation

Safety notes:
- Installation must be carried out by an electrician in compliance with the latest codes and regulations.
- Danger: High voltage may be present.
- Prior to opening, it must be ensured that no voltage is applied to the device.
- Before electrical connection, the supply voltage on the type plate is to be checked. The wrong operating voltage can lead to
damages or to the destruction of the equipment.
- During installation it must be ensured that the connection cables are secured against tension and distortion.
Please observe: The devices are not designed for portable use.
- CAUTION: When making installation, route field wiring away from sharp projections, corners and internal components.
- The function of the unit is only guaranteed if the upper and lower section is joined correctly.
- In order to prevent detriment to sight, continuously looking directly in the activated light is to be avoided.
- The device is provided with a reverse polarity protection. No function when polarity is reversed!

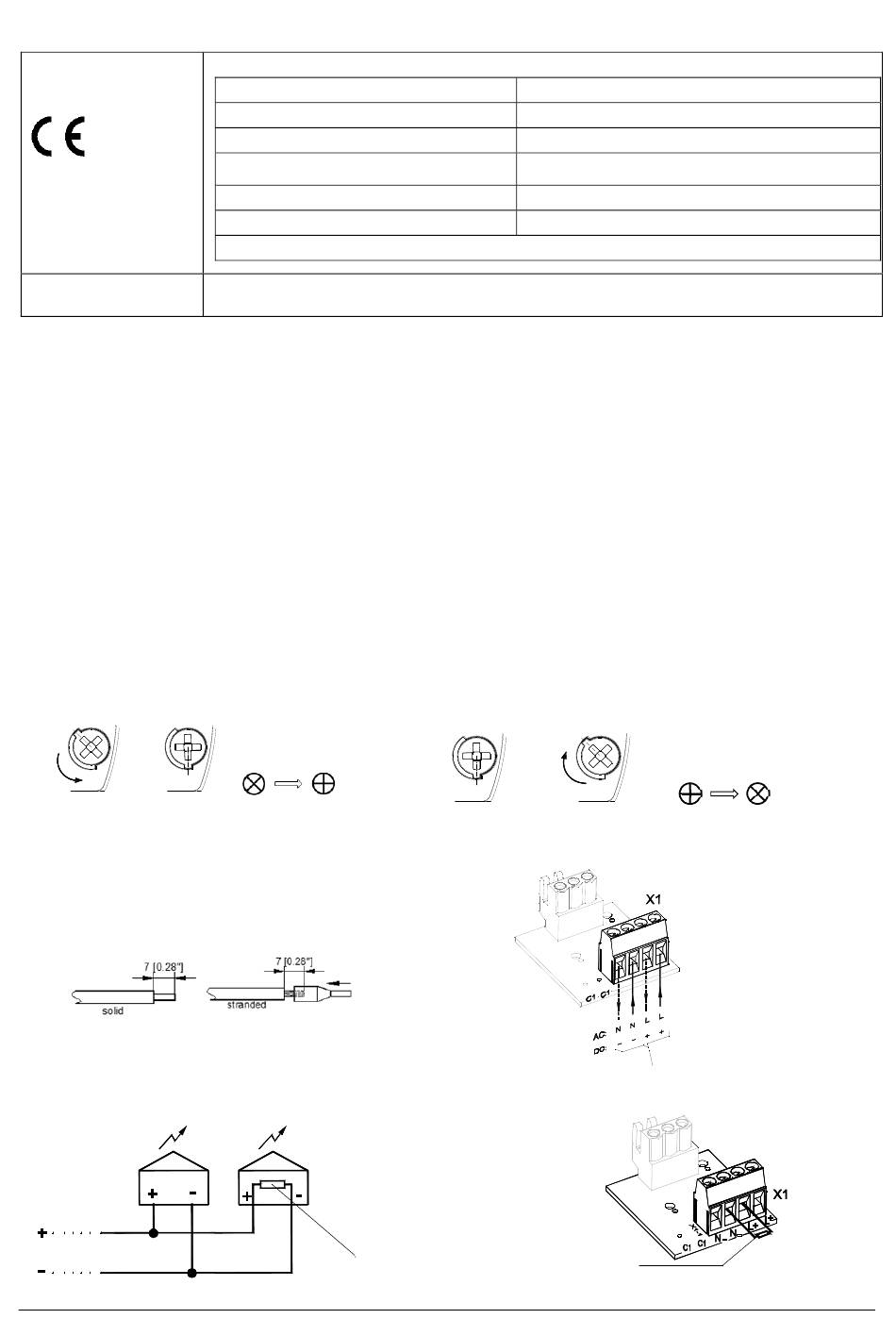

Opening the housing
1. 2.
3/8
The unit is not closed when delivered. Sealing plugs for the housing screws are available as accessories.

Electrical connection:

(PCB in base part)
The terminals are bridged in pairs for easy wire through connection.
Connecting cables
Connection of a resistor for line monitoring:
085 501 996a
PY X-L-15-CPR: VdS 0786-CPR-xxxxx
Rated voltage
Operating voltage range acc. to EN54-23
Lens colours
Signalling area
Environmental protection class
Installation position
Testing takes place using the supplied diaphragm nipple and the outer fastening bores.
PY X-L-15: Gxxxx, Data see Construction Product Regulation (305/2011/EU)
Lens color: Clear, white, yellow, amber, red, green, blue
By loosening the four cover
screws, the upper section
can be removed.
( )
Resistor for Line Monitoring (1K Ohm)
at the terminal for operating voltage.
Position of the resistor with parallel connection of
multiple beacons in the last unit
Remove unneeded resistors.
red, clear / 0,5Hz, 0,75Hz, 1Hz
see document 30396-005-1
see document 30396-005-1
Closing the housing
1. 2.
3/8
5
24V DC
19.2 – 28.8 V DC
EN 54-23 Category O:
Type B
The housing is closed by
turning the cover screws to
the limit position until the
housing locks into place.
( )
Connection for
operation voltage
30396-004-2a
