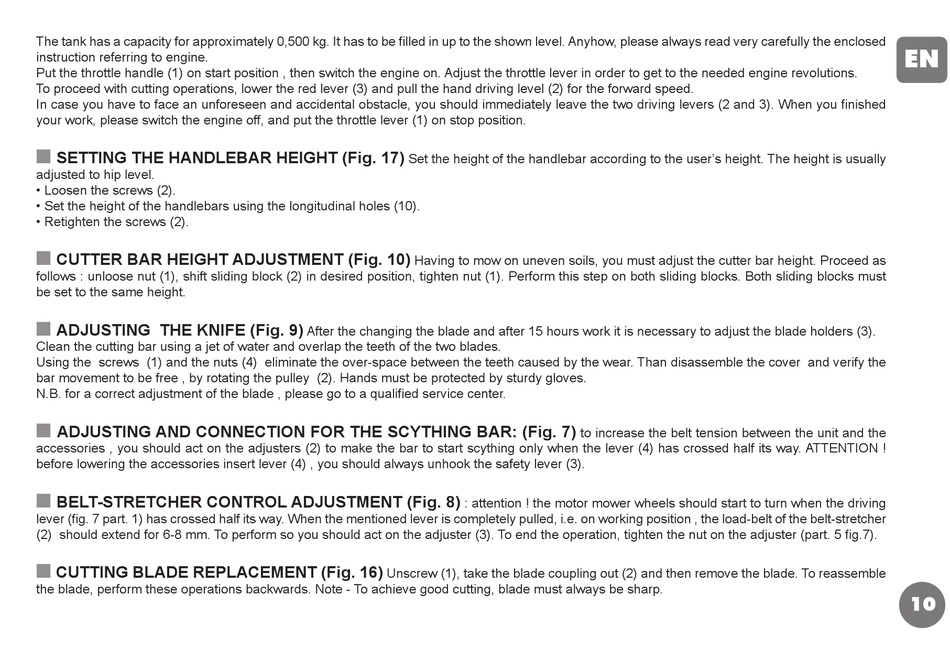

The tank has a capacity for approximately 0,500 kg. It has to be filled in up to the shown level. Anyhow, please always read very carefully the enclosed
instruction referring to engine.
Put the throttle handle (1) on start position , then switch the engine on. Adjust the throttle lever in order to get to the needed engine revolutions.
To proceed with cutting operations, lower the red lever (3) and pull the hand driving level (2) for the forward speed.
In case you have to face an unforeseen and accidental obstacle, you should immediately leave the two driving levers (2 and 3). When you finished
your work, please switch the engine off, and put the throttle lever (1) on stop position.
n SETTING THE HANDLEBAR HEIGHT (Fig. 17)
adjusted to hip level.
• Loosen the screws (2).
• Set the height of the handlebars using the longitudinal holes (10).
• Retighten the screws (2).
CUTTER BAR HEIGHT ADJUSTMENT (Fig. 10)
n
follows : unloose nut (1), shift sliding block (2) in desired position, tighten nut (1). Perform this step on both sliding blocks. Both sliding blocks must
be set to the same height.
n ADJUSTING THE KNIFE (Fig. 9)
Clean the cutting bar using a jet of water and overlap the teeth of the two blades.
Using the screws (1) and the nuts (4) eliminate the over-space between the teeth caused by the wear. Than disassemble the cover and verify the
bar movement to be free , by rotating the pulley (2). Hands must be protected by sturdy gloves.
N.B. for a correct adjustment of the blade , please go to a qualified service center.
ADJUSTING AND CONNECTION FOR THE SCYTHING BAR: (Fig. 7)
n
accessories , you should act on the adjusters (2) to make the bar to start scything only when the lever (4) has crossed half its way. ATTENTION !
before lowering the accessories insert lever (4) , you should always unhook the safety lever (3).
n BELT-STRETCHER CONTROL ADJUSTMENT (Fig. 8)
lever (fig. 7 part. 1) has crossed half its way. When the mentioned lever is completely pulled, i.e. on working position , the load-belt of the belt-stretcher
(2) should extend for 6-8 mm. To perform so you should act on the adjuster (3). To end the operation, tighten the nut on the adjuster (part. 5 fig.7).
CUTTING BLADE REPLACEMENT (Fig. 16)
n
the blade, perform these operations backwards. Note - To achieve good cutting, blade must always be sharp.
Set the height of the handlebar according to the user's height. The height is usually
Having to mow on uneven soils, you must adjust the cutter bar height. Proceed as
After the changing the blade and after 15 hours work it is necessary to adjust the blade holders (3).
: attention ! the motor mower wheels should start to turn when the driving
Unscrew (1), take the blade coupling out (2) and then remove the blade. To reassemble
to increase the belt tension between the unit and the
