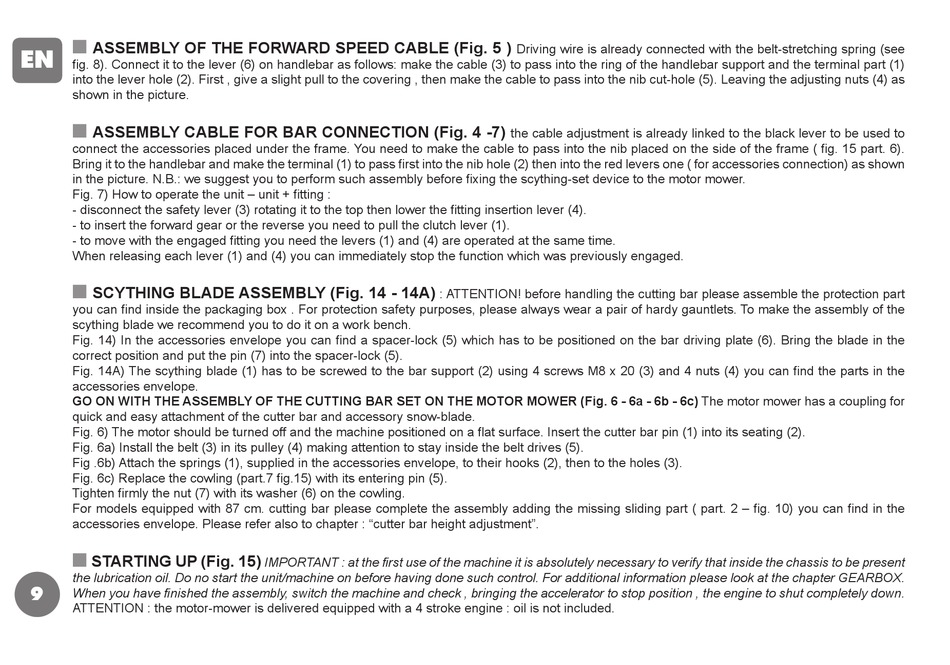

Eurosystems M70 Bedienungsanleitung Seite 17

ASSEMBLY OF THE FORWARD SPEED CABLE (Fig. 5 )
n
EN
fig. 8). Connect it to the lever (6) on handlebar as follows: make the cable (3) to pass into the ring of the handlebar support and the terminal part (1)
into the lever hole (2). First , give a slight pull to the covering , then make the cable to pass into the nib cut-hole (5). Leaving the adjusting nuts (4) as
shown in the picture.
ASSEMBLY CABLE FOR BAR CONNECTION (Fig. 4 -7)
n
connect the accessories placed under the frame. You need to make the cable to pass into the nib placed on the side of the frame ( fig. 15 part. 6).
Bring it to the handlebar and make the terminal (1) to pass first into the nib hole (2) then into the red levers one ( for accessories connection) as shown
in the picture. N.B.: we suggest you to perform such assembly before fixing the scything-set device to the motor mower.
Fig. 7) How to operate the unit – unit + fitting :
- disconnect the safety lever (3) rotating it to the top then lower the fitting insertion lever (4).
- to insert the forward gear or the reverse you need to pull the clutch lever (1).
- to move with the engaged fitting you need the levers (1) and (4) are operated at the same time.
When releasing each lever (1) and (4) you can immediately stop the function which was previously engaged.
SCYTHING BLADE ASSEMBLY (Fig. 14 - 14A)
n
you can find inside the packaging box . For protection safety purposes, please always wear a pair of hardy gauntlets. To make the assembly of the
scything blade we recommend you to do it on a work bench.
Fig. 14) In the accessories envelope you can find a spacer-lock (5) which has to be positioned on the bar driving plate (6). Bring the blade in the
correct position and put the pin (7) into the spacer-lock (5).
Fig. 14A) The scything blade (1) has to be screwed to the bar support (2) using 4 screws M8 x 20 (3) and 4 nuts (4) you can find the parts in the
accessories envelope.
GO ON WITH THE ASSEMBLY OF THE CUTTING BAR SET ON THE MOTOR MOWER (Fig. 6 - 6a - 6b - 6c) The motor mower has a coupling for
quick and easy attachment of the cutter bar and accessory snow-blade.
Fig. 6) The motor should be turned off and the machine positioned on a flat surface. Insert the cutter bar pin (1) into its seating (2).
Fig. 6a) Install the belt (3) in its pulley (4) making attention to stay inside the belt drives (5).
Fig .6b) Attach the springs (1), supplied in the accessories envelope, to their hooks (2), then to the holes (3).
Fig. 6c) Replace the cowling (part.7 fig.15) with its entering pin (5).
Tighten firmly the nut (7) with its washer (6) on the cowling.
For models equipped with 87 cm. cutting bar please complete the assembly adding the missing sliding part ( part. 2 – fig. 10) you can find in the
accessories envelope. Please refer also to chapter : "cutter bar height adjustment".
n STARTING UP (Fig. 15)
the lubrication oil. Do no start the unit/machine on before having done such control. For additional information please look at the chapter GEARBOX.
9
When you have finished the assembly, switch the machine and check , bringing the accelerator to stop position , the engine to shut completely down.
ATTENTION : the motor-mower is delivered equipped with a 4 stroke engine : oil is not included.
: ATTENTION! before handling the cutting bar please assemble the protection part
IMPORTANT : at the first use of the machine it is absolutely necessary to verify that inside the chassis to be present
Driving wire is already connected with the belt-stretching spring (see
the cable adjustment is already linked to the black lever to be used to
